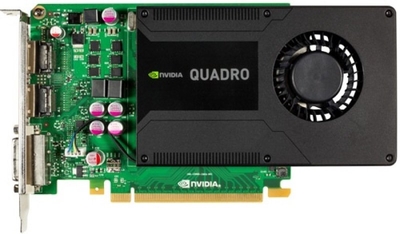

The NVIDIA Quadro K2000 graphics board is a single-slot PCI Express add-in card based on the new NVIDIA Kepler architecture graphics processing unit (GPU). The Quadro K2000 graphics board is an excellent choice for medium complexity designs & models in professional CAD, M&E & visualization applications. Comprehensive ISV certifications for professional environments. Ultra-efficient 51W maximum power provides industry leading performance/watt results. 2 GB of blazing GDDR5 memory. Attach up to 4 active digital monitors using Display Port daisy chaining monitors or by a Display Port hub device. Direct attach up to 3 active monitors using all available display connectors on the Quadro K2000. Latest graphics API's supported including Open GL 4.3 & CUDA 5.0. Windows 8 compliant. NVIDIA Mosaic Technology enabled. NVIDIA n View multi-display management. Compatible operating systems Windows 8 Pro 64; Windows 7 Professional 64; Windows 7 Professional 32; Red Hat Linux WS 5 64; Red Hat Linux WS 6; SUSE Linux Enterprise Desktop 11 Graphic card form factor Single slot, full height Graphic card RAMDAC 400 Mhz integrated Graphic controller Kepler GK 107 GPU with 384 CUDA cores Graphic subsystem video card memory 2 GB GDDR5, 2000 Mhz, 128-bit memory I/O path, 64 GB/s memory bandwidth Ports 1 dual-link DVI-I; 2 Display Port Ports Note Supports up to 4 displays (Using Display Port MST) Product
Dimensions (W x D x H) 4.93 x 7.97 in Resolution (maximum digital) 3840 x 2160 x 30 bpp at 60 Hz (Only 1 monitor per Display Port connector) Resolution (maximum) 3840 x 2160 x 30 bpp at 60 Hz 3840 x 2160 x 30 bpp at 60 Hz Video adapter, bus PCIe 2.0 x 16 Warranty The NVIDIA Quadro K2000 has a one-year limited warranty or the remainder of the warranty of the HP product in which it is installed. Technical support is available seven days a week, 24 hours a day by phone, as well as online support forums. Parts & labor are available on-site within the next business day. Telephone support is available for parts diagnosis & installation. Certain restrictions & exclusions apply. Technical Information Host Interface PCI Express 2.0 x 16 Digital Signal Yes API Supported Direct X 11.0 Open GL 4.3 Processor & Chipset Chipset Manufacturer NVIDIA Chipset Line Quadro Chipset Model K2000 Memory Standard Memory 2 GB Memory Technology GDDR5 SDRAM Bus Width 128 bit Interfaces/ Ports Host Interface PCI Express 2.0 x 16 Display Port Yes Number of Display Port Outputs 2 DVI Yes Number of DVI Outputs 1 Physical Characteristics Form Factor Plug-in Card Slot Space Required Single Cooler Type Fan Cooler Height 4.4" Length 8" Miscellaneous Platform Supported PC
