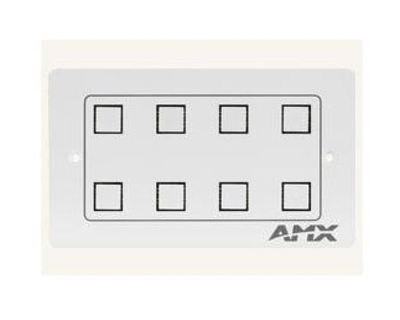

OVERVIEW Novara 2000 Series Control Pads offer simplified device control with just the right mix of ease of use, programming simplicity & cost effectiveness. Novara Control Pads combine a user interface with device control in one, simple-to-install flush-mount keypad. The CP-2008-UK Novara Control Pad features a 8-button layout, & fits standard twin-gang UK back box sizes. FEATURES 8-button panel layout Blue, backlit buttons with programmable feedback for intuitive operation
Includes:: acetate sheet with 50 pre-cut button label inserts for easy, cost effective labeling 1315 events per panel 2 current sink ports for control of external relays like the AMX UPC-20+ 2 RS-232 ports, including the X-port for connection to Novara IP controllers 2 IR or serial ports 1 I/O port for input detection or logic level control 1 serial programming port Compatible with baud rates from 1200 to 115200
