Unbelievably thin & extremely powerful, the 17.3” WT70. Designed to offer increased working efficiencies with the 4th generation Intel Core™ i 7 processor. With a 15% increase in performance when compared to the previous generation & advances in lower power consumption. The WT70 sets a new standard in ultra portable ISV Certified Mobile Workstation. Matrix Display Expands the Vision WT70-2OK can support up to 3 external independent displays simultaneously through HDMI 1.4, Mini Display port 1.2 & VGA. So you can do rendering, 3D image drawing, & check your reference files all at the same time to make multi-tasking easier. NVIDIA Quadro K4100M Graphics Card NVIDIA Quadro K4100M graphics card is fully certified & optimized with industry-leading applications such as Auto Desk, Solidworks & Adobe for enhanced performance & reliability. Take advantage of large GPU memory with fast bandwidth for display of complex models & scenes, as well as computation of large datasets. From digital content creators on a movie set, to design engineers at a remote plant, to geo-scientists on an oil rig, NVIDIA Quadro K4100M mobile is the trusted solution for professional Intel Core i 7 Processor Unleash the Power Unlock the true potential of your rendering process with the 4th generation Intel Core™ i 7 processor. With a 15% increase in performance when compared to the previous generation & advances in lower power consumption & dominate than ever before. Configuration Certified by ISV MSI Mobile Workstation was certificated & recommended by the leading 3D design software Autocad & Solidworks. Professionals can enjoy software compatible, quicker & stable work environment. MSI mobile workstation is absolutely the best choice for professionals. Shortcut manager customizable keyboard The power of personalization in one application. Use every key to your advantage with the MSI shortcut manager to streamline & personalize your design style. Customize the keyboard with over a billion different combinations of modes, effects & colors. Without struggling to memorize all graphic design software shortcuts, easily work faster. Key Features
- Windows 7 Professional
- 4th Generation Intel Core™ i 7 Processor
- 17.3” " Full HD (1920x 1080) anti-glare FHD Color Gamut LED backlight LCD panel
- NVIDIA Quadro K4100M 3D Graphics Card, the best valued graphics card to speed up your professional applications
- Super RAID2 with 3 SSD RAID 0 gives you over 1500MB/s Reading Speed (Option)
- Super RAID2 with 3 SSD RAID 5 prevents your data from being destroyed by a single drive failure. (Option)
- Multi-display support to make multi-task even easier
- s RGB compatible to ensures color accuracy & consistency
- Exclusive Cooler Boost 2 technology improves 15% cooling performance with lower fan noise
- Shortcut Manager to simplify the long command into one key with a set of optimized shortcuts that reflect to your professional experience - Keyboard by Steel Series with full color LED back light & solid feedback design (Adjustable) Product Specification:
- Display: 17.3", 1920 * 1080 FHD, Anti Glare, Wide Viewing Angle
-

Colour: Black
- Processor Type: Intel Core i 7 4810MQ
- Processor Cores: 4 (8 Threads)
- Processor Clock Speed: 2.80 G Hz (3.80 G Hz Turbo Mode)
- Hard Drive Supplied: 1 x 1000GB
- Hard Drive

Size: 1000GB
- Solid State Drive: 256 Gb SSD (2x 128 Gb m SATA3)
- Hard Drive Speed: 7200RPM
- Memory Supplied: 2 x 8GB
- Memory

Size: 16GB
- Memory Type: DDR3L
- Memory Speed: 1600
- Memory Socket: 2 x SO-DIMM
- Max. Memory Support: 16GB
- Operating System: Windows 7 Pro
- Graphics Chipset: NVIDIA Quadro K4100M
- Graphics Memory: 4GB GDDR 5
- Chipset: Intel HM87 Express
- Optical Drive: N/A
- Microphone: Built-in
- Keyboard: Full Colour Backlight Steel Series Keyboard
- LAN: 10/100/1000 Mbps Killer Double Shot Pro GB LAN
- Thunderbolt 2: x 1
- Wireless: 802.11 b/g/n/ac Killer Double Shot Pro AC
- Bluetooth: v 4.0
- USB (Universal Serial Bus) 3.0 Port (s): 3
- USB (Universal Serial Bus) 2.0 Port (s): 1
- HDMI Port (s): 1 (v 1.4) Supports 4 Kx 2K Output
- Mini Display Port (s): 2 Supports 4 Kx 2K Output
- VGA Port (s): 0
- Microphone Jack (s): 1
- Headphone Jack (s): 1
- LAN Port (s): 1
- Card Reader: SD
- Web Camera: HD type
- Dimension: 428 x 288 x 55




















































...

Intel X79 Chipset Based Military Class III: finest top quality & Stability PCI Express Gen 3: World’s 1st PCI Express Gen 3 Motherboard Brand Click BIOS II: World’s 1st Unified UEFI & Software Graphical Interface OC Genie II: Overclock in 1 Second Supports USB (Universal Serial Bus) 3.0 & SATA 6 Gb/s MSI motherboards maintains the commitment to product stability & reliability by introducing Military Class III components! In addition to the use of Hi-c CAP, SFC, & Solid CAP, MSI now incorporates Dr MOS II, the next-generation Dr MOS that provides an integrated Double Thermal Protection to maximize the lifespan of components. All Military Class III components have passed MIL-STD-810G certification, making MSIs Military Class III components synonymous with premium quality & ultimate stability. CPU Supports 2nd Generation Intel Core i 7 processors in LGA2011 package. Please refer to CPU Support for compatible CPU; the above description is for reference only. Chipset Intel X79 Chipset Main Memory Supports eight unbuffered DIMM of 1.5 Volt DDR3 1066/1333/1600/1800*/2133*/2400* (OC) DRAM, 128GB Max
- Supports Quad channel mode Slots 3 PCI Express gen 3 x 16 slots
- PCI_E1 & PCI_E4 support up to PCIE x 16 speed
- PCI_E6 supports up to PCIE x 8 speed 2 PCI Express gen 2 x 16 slots
- PCI_E2 & PCI_E5 support up to PCIE x 1 speed 1 PCIE x 1 slot On-Board SATA SATAII controller integrated in Intel X79 chipset
- Up to 3 Gb/s transfer speed.
- Supports four SATAII ports (SATA3~6) by X79 SATAIII controller integrated in Intel X79 chipset
- Up to 6 Gb/s transfer speed.
- Supports two SATAIII ports (SATA1~2) by X79 SATAIII controller integrated in ASMedia ASM 1061 chipset
- Up to 6 Gb/s transfer speed.
- Supports two SATAIII ports (SATA7~8) RAID
- SATA1~2 ports support Intel Rapid Storage Technology enterprise (AHCI / RAID 0/1) by Intel X79
- SATA3~6 ports support Intel Rapid Storage Technology enterprise (AHCI / RAID 0/1/5/10) by Intel X79 USB (Universal Serial Bus) 3.0 1 USB (Universal Serial Bus) 3.0 internal connector by NEC D720200 2 USB (Universal Serial Bus) 3.0 rear I/O ports by NEC D720200 Audio Chipset integrated by Realtek ALC892
- Flexible 8-channel audio with jack sensing
- Compliant with Azalia 1.0 Spec
- Meet Microsoft Vista Premium spec LAN Supports one PCI Express LAN 10/100/1000 Fast Ethernet by Realtek 8111E. IEEE1394 / Fire Wire VIA VT6315N chipset
- Supports up to two 1394 ports. (Rear panel x 1, pinheader x 1)
- Transfer rate is up to 400 Mbps. Internal I/O Connectors ATX 24-Pin power connector 8-pin ATX 12V power connector 4-PIN Power connector CPU x 1 / System x 4 FAN connectors Front panel audio connector Front panel connector 1 x chasis intrusion connector 2 x USB (Universal Serial Bus) 2.0 connectors 1 x USB (Universal Serial Bus) 3.0 connectors 4 x Serial ATAII connectors 4 x Serial ATAIII connectors 1 x IEEE1394 connector 1 x Clear CMOS jumper 1 x Power button 1 x OC Genie button 2 x Direct OC buttons 1 x Multi BIOS switch 1 x Voice Genie connector 1 x Multi Connect Panel connector Back Panel I/O Ports 1 x PS/2 Mouse/ Keyboard port 1 x Clear CMOS button 1 x Coaxial SPDIF port 1 x Optical SPDIF port 1 x IEEE1394 port 1 x RJ45 LAN Jack 8 x USB (Universal Serial Bus) 2.0 ports 2 x USB (Universal Serial Bus) 3.0 ports 1 x 6 in 1 audio jack BIOS The motherboard BIOS provides " Plug & Play" BIOS which detects the peripheral devices & expansion cards of the board automatically. The motherboard provides a Desktop Management Interface (DMI) function which records your motherboard specifications. Dimension 30.5cm (L) x 24.4cm (W) ATX Form Factor Mounting 9 mounting holes
















...

MSI X99 XPOWER ac Socket LGA 2011-3 7.1-Channel High Definition Audio E-ATX Motherboard The MSI Overclocking motherboards are designed based on four principles: Continuous implementation of professional overclockers' feedback Continue MSI's leading position in power efficiency & stability The best overclocking tools Infuse the DNA of MSI's LIGHTNING graphics cards Socket 2011-3 CPU (Max Support) i 7 Baseclock/ Hyper Transport 100 / 125 / 167 M Hz Chipset Intel X99 Express Chipset DDR4 Memory DDR4 2133/2200*/2400*/2600*/2666*/2750*/3000*/3110*/3333* (*OC) Memory Channel Quad DIMM Slots 8 Max Memory (GB) 128 PCI-Ex 16 5 PCI-E Gen Gen 3 PCI-Ex 1 1 SATA Express 1 SATAIII 10 (2 x ports reserved for SATA Express port) M.2 port 1 RAID 0/1/5/10 (SATA1~6 only) LAN 10/100/1000*2 USB (Universal Serial Bus) 3.0 ports (Front) 4 USB (Universal Serial Bus) 3.0 ports (Rear) 10 USB (Universal Serial Bus) 2.0 ports (Front) 5 USB (Universal Serial Bus) 2.0 ports (Rear) 2 Audio ports (Rear) 5 + Optical S/PDIF OUT VGA Max Share Memory (MB) 1760 Form Factor E-ATX SLI Y 4-way SLI Y Cross Fire Y ...

Supports New Intel Core™ i 7 processors Extreme Edition in LGA 2011-3 socket Supports Quad Channel DDR4-3333 (OC) Memory USB (Universal Serial Bus) 3.1: Delivering speeds up to 10 Gb/s, USB (Universal Serial Bus) 3.1 offers performance twice as fast as a regular USB (Universal Serial Bus) 3.0 connection Turbo M.2: delivering next generation M.2 Gen 3 x 4 performance with transfer speeds up to 32 Gb/s SATA Express + USB (Universal Serial Bus) 3.1 + SATA 6 Gb/s Multi-GPU: Quad NVIDIA SLI & AMD Cross Fire Support OC Engine: Reach higher overclocking results with more flexible BCLK adjustments at 100/125/167 M Hz. Audio Boost 2: Reward Your Ears with True Quality Killer Ethernet: Kill Your Lag USB (Universal Serial Bus) Audio Power: Super Stable 5V Power & Better Signal Transmission over USB (Universal Serial Bus) XSplit Gamecaster: Show off you skills to the world with a six month premium license for this popular streaming software Guard-Pro: enhanced Protection & Power Efficiency OC Genie 4: Overclock in 1 Second Gaming App: Boost your framerate Click BIOS 4: Easily Fine-tune Your System Sound Blaster Cinema 2: Benefit from Creative software to get a more realistic surround sound experience Gaming Device Port: Optimized with Triple Gold-plating for High Polling Rate Gaming Devices CPU Supports New Intel Core™ i 7 Processor Extreme Edition for LGA2011-3 Socket Please refer to CPU Support for compatible CPU; the above description is for reference only Chipset Intel X99 Express Chipset Main Memory Support eight DDR4 2133/2200*/2400*/2600*/2666*/2750*/3000*/3110*/3333* (*OC)MHz DRAM, 128GB Max
- Quad channel memory architecture
- Supports non-ECC, un-buffered memory
- Supports RDIMM 1 Rx 8 memory module (Operates in non-ECC mode) Slots 4 x PCIe 3.0 x 16 slots, support up to 3-way mode
- 1-way mode: x 16/ x 0/ x 0/ x 0
- 2-way mode: x 16/ x 16/ x 0/ x 0*, 16/ x 8/ x 0/ x 0**
- 3-way mode: x 16/ x 16/ x 0/ x 8*, x 8/ x 8/ x 8/ x 0** 2 x PCIe 2.0 x 1 slots * For the CPU that supports 40 PCIe lanes ** For the CPU that supports 28 PCIe lanes Storage Intel X99 Express Chipset 10 x SATA 6 Gb/s ports (2 ports reserved for SATA Express port)*
- SATA1~6 support RAID 0, RAID 1, RAID 5 & RAID 10
- SATA7~10 ports only support IDE mode & AHCI mode
- Supports Intel Smart Response Technology (Windows 7/ 8/ 8.1) 1 x SATA Express port* 1 x M.2 port, supports M.2 SATA 6 Gb/s module* or M.2 PCIe module up to 32 Gb/s speed**
- M.2 port supports 4.2cm/ 6cm/ 8cm length module
- M.2 PCIe module does not support RAID 0, RAID1, RAID 5 & RAID 10 * The SATA Express port or SATA5~6 ports will be unavailable when installing the M.2 (Gen 2 x 2 mode) module in the M.2 port ** Intel RST does not support PCIe M.2 SSD with Legacy ROM USB (Universal Serial Bus) Intel X99 Express Chipset
- 6 x USB (Universal Serial Bus) 3.0 ports (2 ports on the back panel, 4 ports available through the internal USB (Universal Serial Bus) 3.0 connectors*)
- 6 x USB (Universal Serial Bus) 2.0 ports (2 ports on the back panel, 4 ports available through the internal USB (Universal Serial Bus) 2.0 connectors) ASMedia ASM1142 Chipset
- 2 x USB (Universal Serial Bus) 3.1 ports on the back panel VIA VL805
- 4 x USB (Universal Serial Bus) 3.0 ports on the back panel * Internal JUSB1 connector supports MSI Super Charger Audio Realtek ALC1150 Codec
- 7.1-Channel High Definition Audio
- Supports S/PDIF output LAN 1x Killer E2205 Gigabit LAN controller* * The Killer Network Manager is only available for Windows 7 & Windows 8/8.1 currently. The supported drivers for other operating systems would be available on the website if provided by vendor. Multi-GPU Supports 3-Way AMD Cross Fire TM Technology* Supports 3-Way NVIDIA SLI™ Technology * Supports Windows 7 & Windows 8/8.1 Internal I/O Connectors 1 x 24-pin AT x main power connector 1 x 8-pin AT x 12V power connector 10 x SATA 6 Gb/s connectors 1 x SATA Express connector 1 x M.2 connector 2 x USB (Universal Serial Bus) 2.0 connectors (supports additional 4 USB (Universal Serial Bus) 2.0 ports) 2 x USB (Universal Serial Bus) 3.0 connectors (supports additional 4 USB (Universal Serial Bus) 3.0 ports) 2 x 4-pin CPU fan connectors 3 x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x TPM module connector 1 x Chassis Intrusion connector 1 x Clear CMOS jumper 1 x Power button 1 x Reset button 1 x OC Genie button 1 x Multi-BIOS switch 1 x Audio power switch 1 x Slow mode booting jumper 1 x 2-Digit Debug Code LED Back Panel I/O Ports 1 x PS/2 keyboard/ mouse combo port 2 x USB (Universal Serial Bus) 2.0 ports 1 x Clear CMOS button 6 x USB (Universal Serial Bus) 3.0 ports 2 x USB (Universal Serial Bus) 3.1 ports 1 x LAN (RJ45) port 1 x Optical S/PDIF OUT connector 5 x OFC audio jacks BIOS The motherboard BIOS provides " Plug & Play" BIOS which detects the peripheral devices & expansion cards of the board automatically The motherboard provides a Desktop Management Interface (DMI) function which records your motherboard specifications Dimension 12 in. x 9.6 in. (30.5 cm x 24.4 cm) ATX Form Factor Mounting 9 mounting holes
















...

MSI X99A MPOWER Socket LGA2011-3 USB (Universal Serial Bus) 3.1 7.1-Channel HD Audio ATX Motherboard CPU Supports New Intel Core„¢ Processors for the Socket LGA2011-3 Please refer to CPU Support for compatible CPU; the above description is for reference only. Chipset Intel X99 Express Chipset Main Memory Support eight DDR4 DIMMs 2133/2200*/2400*/2600*/2666*/2750*/3000*/3110*/3333* (OC) DRAM (128GB Max) Supports Quad-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) Slots 4x PCIe 3.0 x 16 slots (PCI_E1, 3, 5, 6), support up to 3-way mode 1-way mode: x 16/ x 0/ x 0/ x 0 2-way mode: x 16/ x 16/ x 0/ x 0*, 16/ x 8/ x 0/ x 0** 3-way mode: x 16/ x 16/ x 0/ x 8*, x 8/ x 8/ x 8/ x 0** 2x PCIe 2.0 x 1 slots (PCI_E2, 4) For the CPU that supports 40 PCIe lanes For the CPU that supports 28 PCIe lanes On-Board SATA Intel X99 Express Chipset 10x SATA 6 Gb/s ports (2x ports reserved for SATA Express port)* SATA1~6 support RAID 0, RAID 1, RAID 5 & RAID 10 SATA7~10 ports only support IDE mode & AHCI mode. Supports Intel Smart Response Technology (Windows 7/ 8/ 8.1) 1x SATA Express port* 1x M.2 port, supports M.2 SATA 6 Gb/s module* or M.2 PCIe module up to 32 Gb/s speed** M.2 port supports 4.2cm/ 6cm/ 8cm length module M.2 PCIe module does not support RAID 0, RAID1, RAID 5 & RAID 10. The SATA Express port/ SATA5~6 ports will be unavailable when installing the M.2 SATA interface module in the M.2 port. Intel RST does not support PCIe M.2 SSD with Legacy ROM. USB (Universal Serial Bus) Intel X99 Express Chipset 6 x USB (Universal Serial Bus) 3.0 ports (2 ports on the back panel, 4 ports available through the internal USB (Universal Serial Bus) connectors) 6 x USB (Universal Serial Bus) 2.0 ports (2 ports on the back panel, 4 ports available through the internal USB (Universal Serial Bus) connectors**) VIA VIA805 Chipset 4 x USB (Universal Serial Bus) 3.0 ports on the back panel ASMedia ASM1142 Chipset 2 x USB (Universal Serial Bus) 3.1 ports on the back panel Internal JUSB1 connector supports MSI Super Charger. Audio Realtek ALC1150 Codec 7.1-Channel High Definition Audio Supports S/PDIF output LAN 1x Intel I210-AT Gigabit LAN controller Multi-GPU Supports 3-Way AMD Cross Fire„¢ Technology* Supports 3-Way NVIDIA SLI„¢ Technology Supports Windows 7 & Windows 8/8.1. Internal I/O Connectors 1 x 24-pin ATX power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 10 x SATA 6 Gb/s connectors 2 x USB (Universal Serial Bus) 2.0 connectors (supports additional 4 USB (Universal Serial Bus) 2.0 ports) 2 x USB (Universal Serial Bus) 3.0 connector (supports additional 4 USB (Universal Serial Bus) 3.0 ports) 2 x 4-pin CPU fan connectors 3 x 4-pin system fan connectors 1 x Clear CMOS jumper 1 x Front panel audio connector 2 x System panel connectors 1 x TPM module connector 1 x Chassis Intrusion connector 1 x GO2BIOS button 1 x Power button 1 x Reset button 2 x Base Clock control buttons 1 x OC Genie button 1 x Multi-BIOS switch 1 x OC Genie mode switch 1x Slow mode booting switch 1x Slow mode booting jumper 1 x 2-Digit Debug Code LED Back Panel I/O Ports 1 x PS/2 keyboard/mouse combo port 1 x Clear CMOS button 1 x Optical S/PDIF-out port 2 x USB (Universal Serial Bus) 2.0 ports 6 x USB (Universal Serial Bus) 3.0 ports 2 x USB (Universal Serial Bus) 3.1 ports 1 x RJ45 LAN jack 1 x 5 in 1 OFC audio jack BIOS The motherboard BIOS provides " Plug & Play" BIOS which detects the peripheral devices & expansion cards of the board automatically. The motherboard provides a Desktop Management Interface (DMI) function which records your motherboard specifications. Dimension 30.48cm (L) x 24.38cm (W) ATX Form Factor Mounting 9 mounting holes. ...

Specifications CPU Supports New Intel Core i 7 Processor Extreme Edition for LGA2011-3 Socket. Please refer to CPU Support on MSI website for compatible CPU; the above description is for reference only. Chipset Intel X99 Express Chipset Main Memory Support eight DDR4 DIMMs 2133/2200 (OC)/2400 (OC)/2600 (OC)/2666 (OC)/2750 (OC)/3000 (OC)/3110 (OC)/3333 (OC) MHz, up to 128GB Max. Supports Quad-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) Slots 4 x PCIe 3.0 x 16 slots, support up to 3-way mode 1-way mode: x 16/ x 0/ x 0/ x 0 2-way mode: x 16/ x 16/ x 0/ x 0*, 16/ x 8/ x 0/ x 0** 3-way mode: x 16/ x 16/ x 0/ x 8*, x 8/ x 8/ x 8/ x 0** 2 x PCIe 2.0 x 1 slots For the CPU that supports 40 PCIe lanes For the CPU that supports 28 PCIe lanes Multi-GPU Support Supports 3-Way NVIDIA SLI„¢ Technology Supports 3-Way AMD Cross Fire„¢ Technology* Supports Windows 7 & Windows 8/ 8.1 On-Board SATA Intel X99 Express Chipset 10 x SATA 6 Gb/s ports (2x ports reserved for SATA Express port)* SATA1~6 support RAID 0, RAID 1, RAID 5 & RAID 10 SATA7~10 ports only support IDE mode & AHCI mode. Supports Intel Smart Response Technology (Windows 7/ 8/ 8.1) 1 x SATA Express port* 1 x M.2 port, supports M.2 SATA 6 Gb/s module* or M.2 PCIe module up to 32 Gb/s speed** M.2 port supports 4.2cm/ 6cm/ 8cm length module M.2 PCIe module does not support RAID 0, RAID1, RAID 5 & RAID 10 The SATA Express port or SATA5~6 ports will be unavailable when installing the M.2 (Gen 2 x 2 mode) module in the M.2 port Intel RST does not support PCIe M.2 SSD with Legacy ROM USB (Universal Serial Bus) Intel X99 Express Chipset 6 x USB (Universal Serial Bus) 3.0 ports (2 ports on the back panel, 4 ports available through the internal USB (Universal Serial Bus) 3.0 connectors*) 6 x USB (Universal Serial Bus) 2.0 ports (2 ports on the back panel, 4 ports available through the internal USB (Universal Serial Bus) 2.0 connectors) ASMedia ASM1142 2 x USB (Universal Serial Bus) 3.1 ports on the back panel VIA VL805 4 x USB (Universal Serial Bus) 3.0 ports on the back panel Internal JUSB1 connector supports MSI Super Charger Audio Realtek ALC892 Codec 7.1-Channel High Definition Audio Supports S/PDIF output LAN 1 x Intel I218 Gigabit LAN Internal I/O Connectors 1 x 24-pin AT x main power connector 1 x 8-pin AT x 12V power connector 10 x SATA 6 Gb/s connectors 1 x SATA E xpress connector 1 x M.2 connector 2 x USB (Universal Serial Bus) 2.0 connectors (supports additional 4 USB (Universal Serial Bus) 2.0 ports) 2 x USB (Universal Serial Bus) 3.0 connectors (supports additional 4 USB (Universal Serial Bus) 3.0 ports) 2 x 4-pin CPU fan connectors 3 x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x TPM module connector 1 x Chassis Intrusion connector 1 x Clear CMOS jumper 1 x Slow mode booting jumper 1 x Power button 1 x Reset button 1 x OC Genie button 1 x Multi-BIOS switch Back Panel I/O Ports 1 x PS/2 keyboard/ mouse combo port 2 x USB (Universal Serial Bus) 2.0 ports 1 x Clear CMOS button 6 x USB (Universal Serial Bus) 3.0 ports 2 x USB (Universal Serial Bus) 3.1 ports 1 x LAN (RJ45) port 1 x Optical S/PDIF OUT connector 5 x OFC audio jacks BIOS The motherboard BIOS provides " Plug & Play" BIOS which detects the peripheral devices & expansion cards of the board automatically. The motherboard provides a Desktop Management Interface (DMI) function which records your motherboard specifications

Dimensions 12 in. x 9.6 in. (30.5 cm x 24.4 cm) ATX Form Factor Mounting 9 mounting holes

...

MSI X99S GAMING 7 Socket 2011-3 7.1-Channel HD Audio ATX Motherboard Socket 2011-3 CPU (Max Support) i 7 Baseclock/ Hyper Transport 100 / 125 / 167 M Hz Chipset Intel X99 Express Chipset DDR4 Memory DDR4 2133/2200*/2400*/2600*/2666*/2750*/3000*/3110*/3333* (*OC) HMz Memory Channel Quad DIMM Slots 8 Max Memory (GB) 128 PCI-Ex 16 4 PCI-E Gen Gen 3 SATA Express 1 SATAIII 10 (*2x ports reserved for SATA Express) M.2 port 1 RAID 0/1/5/10 TPM (header) 1 LAN 10/100/1000*1 USB (Universal Serial Bus) 3.0 ports (Front) 4 USB (Universal Serial Bus) 3.0 ports (Rear) 8 USB (Universal Serial Bus) 2.0 ports (Front) 4 USB (Universal Serial Bus) 2.0 ports (Rear) 2 Audio ports (Rear) 5+ Optical SPDIF VGA Max Share Memory (MB) 1760 Direct X DX11 Form Factor ATX SLI Y 3-way SLI Y Cross Fire Y ...

The MSI X99 GAMING motherboards are perfected in every way focusing on an even heavier & more detailed gaming look & feel Amazing sound with Audio Boost 2, powered by Creative Sound Blaster Cinema 2 USB (Universal Serial Bus) Audio Power ACK: Use Killer Double Shot Pro to combine Killer WIFI with Killer LAN for the best online gaming experience Push your SSD to the limit with M.2 & SATA-Express Show off your gaming skills to the world with XSplit Gamecaster Steam OS ready out of the box Military Class 4 components Super stable with Guard-Pro Specialised production lines just for GAMING motherboards OC Genie 4 KILLER DOUBLESHOT PRO LOWEST LATENCY, FASTEST SPEEDS Through the detection & prioritization of gaming traffic you can finally fully utilize your network without fear of being kicked from an online game because of high ping. This enables true multi-tasking without manually enabling or disabling applications, updates & installations. Killer networking actually means that you can use your PC 24 hours a day. Smart teaming combines both LAN & Wireless for the best possible gaming experience. The Killer Network Manager decides which apps runs on which connection for gaming traffic optimization. MSI Streaming Engine Record & stream all of your in-game activity while enjoying your games at maximum FPS Because Streaming Engine captures video real-time through a dedicated hardware solution you are free of any impact on CPU performance, where other solutions demand vital resources highly impacting FPS performance. Based on a AVer Media HD streaming solution we offer the best streaming solution on the market, saving you up to $150. Record your gaming activities at amazing 1080p quality @ 60 Mbps bitrate without sacrificing CPU & graphics performance. 2 Year Premium License for XSplit Gamecaster XSplit Gamecaster & XSplit Broadcaster lets you easily record, stream & share your gaming sessions with fellow gamers Want to show off your skills or just make a fun gaming video for your friends? XSplit Gamecaster lets you easily record your gaming moments & broadcast your live gameplay sessions to Twitch, You Tube, UStream & more. Its simple, easy to use & ideal for sharing your gameplay with friends, family or the world
- Or for capturing those perfect gaming moments, just for the heck of it. So what are you waiting for? Join the revmolution & start streaming & recording with XSplit Gamecaster today. Specifications CPU Support Supports New IntelÆ Coreô i 7 Processor Extreme Edition for LGA2011-3 Socket Chipset IntelÆ X99 Express Chipset Memory Support Support eight DDR4 2133/2200 (OC)/2400 (OC)/2600 (OC)/2666 (OC)/2750 (OC)/3000 (OC)/3110 (OC)/3333 (OC) MHz DRAM, 128GB Max.
- Quad channel memory architecture
- Supports non-ECC, un-buffered memory Slots 5 x PCIe 3.0 x 16 slots, support up to 4-way mode
- 1-way mode: x 16/ x 0/ x 0/ x 0/ x 0
- 2-way mode: x 16/ x 0/ x 0/ x 16/ x 0*, 16/ x 0/ x 0/ x 8/ x 0**
- 3-way mode: x 16/ x 0/ x 0/ x 16/ x 8*, x 8/ x 8/ x 0/ x 8/ x 0**
- 4-way mode: x 8/ x 8/ x 0/ x 16/ x 8*, x 8/ x 8/ x 0/ x 8/ x 4** * For the CPU that supports 40 PCIe lanes ** For the CPU that supports 28 PCIe lanes On-Board SATA Intel X99 Express Chipset ï 10 x SATA 6 Gb/s ports (2 ports reserved for SATA Express port)*
- SATA1~6 support RAID 0, RAID 1, RAID 5 & RAID 10
- SATA7~10 ports only support IDE mode & AHCI mode.
- Supports IntelÆ Smart Response Technology (Windows 7/ 8/ 8.1) ï 1 x SATA Express port* ï 1 x M.2 port, supports up to 32 Gb/s speed**
- M.2 port supports M.2 SATA 6 Gb/s module
- M.2 PCIe interface does not support RAID 0, RAID1, RAID 5 & RAID 10. * The SATA Express port or SATA5~6 ports will be unavailable when installing the M.2 SATA interface module in the M.2 port. ** Intel RST does not support PCIe M.2 SSD with Legacy ROM. USB (Universal Serial Bus) ï IntelÆ X99 Express Chipset
- 6x USB (Universal Serial Bus) 3.0 ports (2 ports on the back panel, 4 ports available through the internal USB (Universal Serial Bus) 3.0 connectors*)
- 6x USB (Universal Serial Bus) 2.0 ports (2 ports on the back panel, 4 ports available through the internal USB (Universal Serial Bus) 2.0 connectors) ï As Media ASM1042AE
- 2 x USB (Universal Serial Bus) 3.0 ports on the back panel ï VIA VL805
- 4x USB (Universal Serial Bus) 3.0 ports on the back panel * Internal JUSB3 connector supports MSI Super Charger. Audio RealtekÆ ALC1150 Codec
- 7.1-Channel High Definition Audio
- Supports S/PDIF output LAN 1 x Killer E2205 Gigabit LAN controller Wireless LAN Killer Wireless 1525 module
- Supports 2x 2 802.11a/b/g/n/ac with advanced features
- Supports 20/ 40 M Hz at 2.4 G Hz & 20/ 40/ 80 M Hz at 5 G Hz Bluetooth Killer Wireless 1525 module
- Supports Bluetooth v 4.1 Multi-GPU ï Supports 4-Way AMDÆ Cross Fire TM Technology* ï Supports 4-Way NVIDIAÆ SLIô Technology (For the CPU that supports 40 PCIe lanes) ï Supports 3-Way NVIDIAÆ SLIô Technology (For the CPU that supports 28 PCIe lanes) * Supports Windows 7 & Windows 8/ 8.1 Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x 4-pin ATX 12V power connector
- 10 x SATA 6 Gb/s connectors
- 1 x M.2 connector
- 1 x SATA Express connector
- 2 x USB (Universal Serial Bus) 2.0 connectors (supports additional 4 USB (Universal Serial Bus) 2.0 ports)
- 2 x USB (Universal Serial Bus) 3.0 connectors (supports additional 4 USB (Universal Serial Bus) 3.0 ports)
- 2 x 4-pin CPU fan connectors
- 3 x 4-pin system fan connectors
- 1 x Front panel audio connector
- 2 x System panel connectors
- 1 x TPM module connector
- 1 x Chassis Intrusion connector
- 9 x V-Check connectorsts
- 1 x Clear CMOS jumper
- 1 x Power button
- 1 x Reset button
- 1 x OC Genie button
- 1 x Multi-BIOS switch
- 1 x OC Genie mode switch
- 1 x Audio power switch
- 1 x Slow mode booting switch
- 1 x 2-Digit Debug Code LED
- 1 x Wi-Fi/ Bluetooth module connector Back Panel I/O Ports
- 1 x PS/2 keyboard/ mouse combo port
- 2 x USB (Universal Serial Bus) 2.0 ports
- 1 x Clear CMOS button
- 8 x USB (Universal Serial Bus) 3.0 ports
- 1 x LAN (RJ45) port
- 1 x Optical S/PDIF OUT connector
- 5 x OFC audio jacks Dimension 12 in. x 10.4 in. (30.5 cm x 26.4 cm) EATX Form Factor MSI X99S GAMING 9 ACK Socket LGA 2011-3 7.1-Channel HD Audio E-ATX Motherboard CPU Supports New Intel Core i 7 Processor Extreme Edition for LGA2011-3 Socket Please refer to CPU Support for compatible CPU; the above description is for reference only. Chipset
- Intel X99 Express Chipset Main Memory Support eight DDR4 2133/2200 (OC)/2400 (OC)/2600 (OC)/2666 (OC)/2750 (OC)/3000 (OC)/3110 (OC)/3333 (OC) MHz DRAM, 128GB Max Quad channel memory architecture Supports non-ECC, un-buffered memory Slots 5 x PCIe 3.0 x 16 slots, support up to 4-way mode 1-way mode: x 16/ x 0/ x 0/ x 0/ x 0 2-way mode: x 16/ x 0/ x 0/ x 16/ x 0*, 16/ x 0/ x 0/ x 8/ x 0** 3-way mode: x 16/ x 0/ x 0/ x 16/ x 8*, x 8/ x 8/ x 0/ x 8/ x 0** 4-way mode: x 8/ x 8/ x 0/ x 16/ x 8*, x 8/ x 8/ x 0/ x 8/ x 4** * For the CPU that supports 40 PCIe lanes ** For the CPU that supports 28 PCIe lanes Streaming Engine Supports H.264 hardware video/ audio encoding up to 1920x 1080@ (24p/25p/30p) Multi-GPU Support Supports 4-Way AMD Cross Fire Technology* Supports 4-Way NVIDIA SLI Technology (For the CPU that supports 40 PCIe lanes) Supports 3-Way NVIDIA SLI Technology (For the CPU that supports 28 PCIe lanes) Supports Windows 7 & Windows 8/ 8.1 Storage Intel X99 Express Chipset 10 x SATA 6 Gb/s ports (2 ports reserved for SATA Express port)* SATA1~6 support RAID 0, RAID 1, RAID 5 & RAID 10 SATA7~10 ports only support IDE mode & AHCI mode. Supports Intel Smart Response Technology (Windows 7/ 8/ 8.1) 1 x SATA Express port* 1 x M.2 port, supports up to 32 Gb/s speed** M.2 port supports M.2 SATA 6 Gb/s module M.2 PCIe interface does not support RAID 0, RAID1, RAID 5 & RAID 10. The SATA Express port or SATA5~6 ports will be unavailable when installing the M.2 (Gen 2 x 2 mode) module in the M.2 port. Intel RST does not support PCIe M.2 SSD with Legacy ROM. USB (Universal Serial Bus) Intel X99 Express Chipset 6x USB (Universal Serial Bus) 3.0 ports (2 ports on the back panel, 4 ports available through the internal USB (Universal Serial Bus) 3.0 connectors*) 6x USB (Universal Serial Bus) 2.0 ports (2 ports on the back panel, 4 ports available through the internal USB (Universal Serial Bus) 2.0 connectors) As Media ASM1042AE 2 x USB (Universal Serial Bus) 3.0 ports on the back panel VIA VL805 4x USB (Universal Serial Bus) 3.0 ports on the back panel Internal JUSB3 connector supports MSI Super Charger. Audio Realtek ALC1150 Codec 7.1-Channel High Definition Audio Supports S/PDIF output LAN 1 x Killer E2205 Gigabit LAN controller* The Killer Network Manager is only available for Windows 7/ 8/ 8.1 currently. The supported drivers for other operating systems would be available on the website if provided by vender. Wireless LAN Killer Wireless 1525 module. Supports 2x 2 802.11a/b/g/n/ac with advanced features Supports 20/ 40 M Hz at 2.4 G Hz & 20/ 40/ 80 M Hz at 5 G Hz. Bluetooth Killer Wireless 1525 module. Supports Bluetooth v 4.1 Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 10 x SATA 6 Gb/s connectors 1 x M.2 connector 1 x SATA Express connector 2 x USB (Universal Serial Bus) 2.0 connectors (supports additional 4 USB (Universal Serial Bus) 2.0 ports) 2 x USB (Universal Serial Bus) 3.0 connectors (supports additional 4 USB (Universal Serial Bus) 3.0 ports) 2 x 4-pin CPU fan connectors 3 x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x TPM module connector 1 x Chassis Intrusion connector 9 x V-Check connectorsts 1 x Clear CMOS jumper 1 x Power button 1 x Reset button 1 x OC Genie button 1 x Multi-BIOS switch 1 x OC Genie mode switch 1 x Audio power switch 1 x Slow mode booting switch 1 x 2-Digit Debug Code LED 1 x Wi-Fi/ Bluetooth module connector Back Panel I/O Ports 1 x PS/2 keyboard/ mouse combo port 2 x USB (Universal Serial Bus) 2.0 ports 1 x Clear CMOS button 8 x USB (Universal Serial Bus) 3.0 ports 1 x LAN (RJ45) port 1 x Optical S/PDIF OUT connector 5 x OFC audio jacks BIOS The motherboard BIOS provides " Plug & Play" BIOS which detects the peripheral devices & expansion cards of the board automatically. The motherboard provides a Desktop Management Interface (DMI) function which records your motherboard specifications. Dimension
- 12 in. x 10.4 in. (30.5 cm x 26.4 cm) Form Factor E-ATX Mounting
- 9 mounting holes.























































...

MSI X99S MPOWER SOcket LGA 2011-3 7.1-Channel HD Audio ATX Motherboard Features 1 Socket 2011-3 CPU (Max Support) i 7 Baseclock/ Hyper Transport 100 / 125 / 167 M Hz Chipset Intel X99 Express DDR4 Memory 2133/2200*/2400*/2600/2666*/2750*/3000*/3110*/3333* (*OC) Memory Channel Quad DIMM Slots 8 Max Memory (GB) 128 PCI-Ex 16 4 PCI-E Gen 40 lanes (16, 0, 0, 0) (16, 16, 0, 0) (16, 16, 0, 8) 28 lanes (16, 0, 0, 0) (16, 8, 0, 0) (8, 8, 8, 0) PCI-Ex 1 2 SATAIII 10 M.2 port 1 RAID 0/1/5/10 TPM (header) 1 LAN 10/100/1000*1 USB (Universal Serial Bus) 3.0 ports (Front) 4 USB (Universal Serial Bus) 3.0 ports (Rear) 8 USB (Universal Serial Bus) 2.0 ports (Front) 4 USB (Universal Serial Bus) 2.0 ports (Rear) 2 Audio ports (Rear) 5 + Optical SPDIF Form Factor ATX SLI Y Cross Fire Y ...

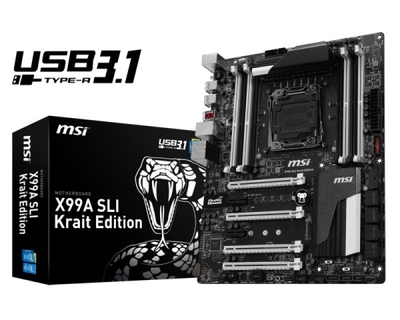

MSI X99S SLI Krait Edition Socket LGA2011-3 7.1-Channel HD Audio ATX Motherboard CPU Supports New Intel Core i 7 Processor Extreme Edition for LGA2011-3 Socket. Please refer to CPU Support for compatible CPU; the above description is for reference only. Chipset Intel X99 Express Chipset Main Memory Support eight DDR4 DIMMs 2133/2200 (OC)/2400 (OC)/2600 (OC)/2666 (OC)/2750 (OC)/3000 (OC)/3110 (OC)/3333 (OC) MHz, up to 128GB Max. Supports Quad-Channel mode Supports non-ECC, un-buffered memory Slots 4 x PCIe 3.0 x 16 slots (PCI_E1, 3, 5, 6), support up to 3-way mode 1-way mode: x 16/ x 0/ x 0/ x 0 2-way mode: x 16/ x 16/ x 0/ x 0*, 16/ x 8/ x 0/ x 0** 3-way mode: x 16/ x 16/ x 0/ x 8*, x 8/ x 8/ x 8/ x 0** 2x PCIe 2.0 x 1 slots (PCI_E2, 4) For the CPU that supports 40 PCIe lanes For the CPU that supports 28 PCIe lanes Multi-GPU Support Supports 3-Way NVIDIA SLI Technology Supports 3-Way AMD Cross Fire Technology* Supports Windows 7 & Windows 8/ 8.1 On-Board SATA Intel X99 Express Chipset 10 x SATA 6 Gb/s ports (2x ports reserved for SATA Express port)* SATA1~6 support RAID 0, RAID 1, RAID 5 & RAID 10 SATA7~10 ports only support IDE mode & AHCI mode. Supports Intel Smart Response Technology (Windows 7/ 8/ 8.1) 1 x SATA Express port* 1 x M.2 port, supports M.2 SATA 6 Gb/s module* or M.2 PCIe module up to 32 Gb/s speed** M.2 port supports 4.2cm/ 6cm/ 8cm length module M.2 PCIe module does not support RAID 0, RAID1, RAID 5 & RAID 10. The SATA Express port or SATA5~6 ports will be unavailable when installing the M.2 (Gen 2 x 2 mode) module in the M.2 port. Intel RST does not support PCIe M.2 SSD with Legacy ROM. USB Intel X99 Express Chipset 6 x USB (Universal Serial Bus) 3.0 ports (2 ports on the back panel, 4 ports available through the internal USB (Universal Serial Bus) 3.0 connectors*) 6 x USB (Universal Serial Bus) 2.0 ports (2 ports on the back panel, 4 ports available through the internal USB (Universal Serial Bus) 2.0 connectors) ASMedia ASM1042AE 2 x USB (Universal Serial Bus) 3.0 ports on the back panel VIA VL805 4 x USB (Universal Serial Bus) 3.0 ports on the back panel Internal JUSB1 connector supports MSI Super Charger. Audio Realtek ALC1150 Codec 7.1-Channel High Definition Audio Supports S/PDIF output LAN 1 x Intel I210-AT Gigabit LAN controller Internal I/O Connectors 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 10x SATA 6 Gb/s connectors 2x USB (Universal Serial Bus) 2.0 connectors (supports additional 4 USB (Universal Serial Bus) 2.0 ports) 2x USB (Universal Serial Bus) 3.0 connectors (supports additional 4 USB (Universal Serial Bus) 3.0 ports) 2x 4-pin CPU fan connectors 3x 4-pin system fan connectors 1x Clear CMOS jumper 1x Front panel audio connector 2x System panel connectors 1x TPM module connector 1x Chassis Intrusion connector 1x GO2BIOS button 1x Power button 1x Reset button 1x OC Genie button 1x Multi-BIOS switch 1x OC Genie mode switch 1x Slow mode booting switch 1x Slow mode booting jumper Back Panel I/O Ports 1 x PS/2 port 2 x USB (Universal Serial Bus) 2.0 ports 1 x Clear CMOS button 8 x USB (Universal Serial Bus) 3.0 ports 1 x LAN (RJ45) port 1 x Optical S/PDIF OUT connector 5 x OFC audio jacks BIOS The motherboard BIOS provides " Plug & Play" BIOS which detects the peripheral devices & expansion cards of the board automatically. The motherboard provides a Desktop Management Interface (DMI) function which records your motherboard specifications. Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm) ATX Form Factor Mounting 9 mounting holes ...
