MSI Radeon R7 360 2 Gb GDDR5 Dual-link DVI-I HDMI Display Port Graphics Card All Solid Capacitors 10 years ultra-long lifetime (under full load) Lower temperature & higher efficiency Extreme low ESR MSI Afterburner Overclocking Utility Monitor fan speed profile In-game video recording i OS/ Android remote control built-in Direct X 12 benchmark AMD Eyefinitytechnology AMD Eyefinity Technology supports maximum 6 displays with 1 Display Portsvia Multi-Stream Transport (MST HUB) AMD HD3D technology Stereoscopic 3D display/glasses & Blu-ray 3D support Stereoscopic 3D gaming support 3rd party Stereoscopic 3D middleware software support Product Specification: Product Name: R7 3602GD5 OCV1 Model: V809 GPU: AMD Radeon R7 360 Codename: Tobago Stream Processors: 768 Units Core Clock (OC): 1100 MHz Memory Clock: 6000 MHz Memory
Size: 2048MB GDDR5 Memory Bus: 128-bit Outputs: Display Port/ HDMI /DL-DVI-I Power Consumption/ Connector: 100 W / 6-pin x 1 Dimension / Weight: 165x 110x 37mm / 348g Form Factor: ATX Technology Support Afterburner OC: GPU Direct X: 12 Open GL: 4.4 Multi-GPU Technology: Cross Fire TM Multi-Display Technology: Eyefinity 3D Technology: HD3D Power Saving Tech.: Power Tune HDCP Capable: Y
...

MSI Radeon R7 370 Gaming 4GB GDDR5 Dual-link DVI-D DVI-I HDMI Display Port PCI-E Graphics Card Next-Gen Thermal Design: Twin Frozr V Torx Fan Maximizes airflow & dispersion. Super SUArchitecture Improves dissipation efficiency through special heatpipelayout. Zero Frozr Fans stop spinning in low load to keep the card quiet & increase lifetime. Airflow Control technology Deflects airflow towards heatpipesto improve thermal efficiency. Gaming App Easy Tuning –OC, Gaming & Silent modes adjust Graphics Card settings based on user requirements. Eye Rest: Dedicated color profiles for Gaming, movies & Eye Rest, allow to custom visual related setting what you like. LED control choose from 5 unique lighting modes to set the right ambience for their gaming moments with just one click Military Class 4 Components Certified to MIL-STD-810G standards for top stability & quality. Built with Hi-c CAP, Solid CAP, & New SFC components. Product

Specification Model Name R7 370 GAMING 4G GPU AMD Radeon R7 370 Codename Trinidad Processors 1024 Units Core Boost/ Base Clock (OC) 1070 / 1020 MHz Memory Clock (OC) 5700 MHz Memory Size 4GB GDDR5 Memory Bus 256 bits Output Display Port/HDMI DL-DVI-I/DL-DVI-D Power Consumption/ Connector 110 W / 6-pin x 1 Dimension / Weight 258x 132x 37 mm / 632 g Form Factor ATX Technology Support Afterburner OC GPU Direct X 12 Open GL 4.4 Multi-GPU Cross Fire TM Multi-Display Eyefinity 3D Technology HD3D Power Saving Power Tune HDCP Capable Yes

...

A graphics card is the single most important element for more FPS. As gamers, we understand that not just any graphics card "will do". That's why we bring you the best of the best. We don't want to bug you with noise & heat, but we DO want to give you more performance. With MSI GAMING series graphics cards you get just that. Specifications GPU Graphics Processing Unit
- AMD Radeon™ R9 270 Core Clock Speed (MHz) 900 M Hz Core (Boost Clock:975 M Hz) (OC mode) 900 M Hz Core (Boost Clock:955 M Hz) (Gaming mode) 900 M Hz Core (Boost Clock:925 M Hz) (Silent mode) Memory Memory Size (MB)
- 2048 Memory Type
- GDDR5 Memory Interface
- 256 bits Memory Clock Speed (MHz)
- 5600 Memory Bandwidth (GB/sec)
- 179.2 Outputs DVI Connectors
- DL-DVI-Ix 1, DL-DVI-Dx 1 Max Resolution: 2048x 1536 @60 Hz HDMI Connectors
- 1 (version 1.4a) Max Resolution: 3840x 2160 @30 Hz-30bpp 4096x 2160 @24 Hz-24bpp Display Port
- 1 (version 1.2) Max Resolution: 4096x 2160 @ 50 Hz HDCP Support
- Y Features Direct X Version Support
- 11.2 API (feature 11_0) Open GL Version Support
- 4.3 Multi-GPU Technology
- Cross Fire, 2-ways Interface
- PCI Express x 16 3.0

Dimensions Card Dimension (mm)
- 256x 127x 34mm Power Requirements Power consumption (W)
- 147 Recommended Power Supply (W)
- 500 Power Connectors
- 1x 6-Pin



















...

A graphics card is the single most important element for more FPS. As gamers, we understand that not just any graphics card "will do". That's why we bring you the best of the best. We don't want to bug you with noise & heat, but we DO want to give you more performance. With MSI GAMING series graphics cards you get just that. Specifications Product Name
- R9 270X Gaming 2G GPU
- AMD Radeon R9 270X Processor
- 1290 Units Core Clock
- Base:1030 MHz Boost:1120 MHz Memory Clock
- 5600 MHz Memory Size
- 2048MB GDDR5 Memory Bus
- 256 bits Output
- Display Port / HDMI / DL-DVI-D / DL-DVI-I Power Consumption
- 161W Card dimension
- 260x 129x 38mm Form Factor
- ATX










...

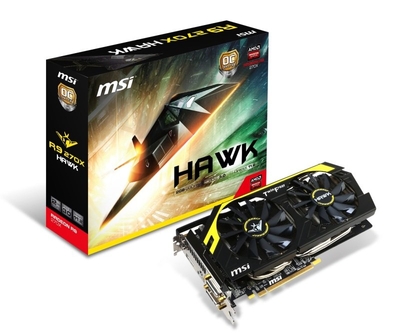

A graphics card is the single most important element for more FPS. As gamers, we understand that not just any graphics card "will do". That's why we bring you the best of the best. We don't want to bug you with noise & heat, but we DO want to give you more performance. With MSI GAMING series graphics cards you get just that. Most MSI Gaming graphics cards come pre-overclocked out of the factory. This simply means you get more performance out of your card, without spending any time on checking for maximum clocks & stability. Pre-overclocked graphics cards simply give more performance & you don't have to worry about damaging your card! Specifications Graphics Processing Unit
- AMD Radeon R9 270X Interface
- PCI Express x 16 3.0 Core Clock Speed (MHz) 1030 M Hz Core (Boost Clock:1080 M Hz) (OC mode) 1030 M Hz Core (Boost Clock:1070 M Hz) (Gaming mode) 1030 M Hz Core (Boost Clock:1050 M Hz) (Silent mode) Memory Size (MB)
- 2GB Memory Type
- GDDR5 Memory Interface
- 256 bits Memory Clock Speed (MHz)
- 5600 Memory Bandwidth (GB/sec)
- 179.2 DVI Connectors
- DL-DVI-Ix 1
- Max Resolution: 2048x 1536 @60 Hz HDMI Connectors
- 1 (version 1.4a)
- Max Resolution: 3840x 2160 @30 Hz-30bpp
- 4096x 2160 @24 Hz-24bpp Mini Display Port Connectors
- 2 (version 1.2)
- Max Resolution: 4096x 2160 @ 50 Hz HDCP Support
- Y RAMDAC speed (MHz)
- 400 Direct X Version Support
- 11.2 API (feature 11_0) Open GL Version Support
- 4.3 Multi-GPU Technology
- Cross Fire 2-way Card Dimension (mm)
- 170x 120x 35mm Card Weight
- 585 Power consumption (W)
- 161 Recommended Power Supply (W)
- 500 Power Connectors
- 1x 8-Pin























...

A graphics card is the single most important element for more FPS. As gamers, we understand that not just any graphics card "will do". That's why we bring you the best of the best. We don't want to bug you with noise & heat, but we DO want to give you more performance. With MSI GAMING series graphics cards you get just that. Most MSI Gaming graphics cards come pre-overclocked out of the factory. This simply means you get more performance out of your card, without spending any time on checking for maximum clocks & stability. Pre-overclocked graphics cards simply give more performance & you don't have to worry about damaging your card, it is completely covered by our warranty! MSI's Twin Frozr has been the industry defining graphics card cooler. The first Twin Frozr kicked off the dual-fan trend & today MSI stays true to its dual-fan dual-slot design where others have to resort to less effective means. The other part that the Twin Frozr cooler uses is a large Aluminium fin grid array that provides a huge amount of surface area for cooling. Heat from the GPU is transferred to the fin grid array by virtue of heat pipes with MSI's special Super Pipe technology. Super Pipes transfer heat twice as fast as regular heat pipes enabling an MSI GAMING graphics card to stay cooler than the competition. Futhermore, MSI provide all new Airflow Control technology on Twin Frozr. This new thermal tech. is leading airflow to heat pipe by spcial deflector on heatsink, so it can deflect more airflow to heat pipes directly. In addtion, This exclusive heatsink design is increasing the area of heatsink so that enhancing the efficiency of dissipation much more. Specifications Graphics Engine- AMD Radeon R9 280 Core Clock Speed (MHz) 933 M Hz Core (Boost Clock:1000 M Hz) (OC mode) 933 M Hz Core (Boost Clock:972 M Hz) (Gaming mode) 933 M Hz Core (Boost Clock:933 M Hz) (Silent mode) Memory Type
- GDDR5 Memory Size (MB)
- 3072 Memory Interface
- 384 bits Memory Clock Speed (MHz)
- 5000 Bus Standard
- PCI Express x 16 3.0 DVI Output
- 1 (Dual-link DVI-I) HDMI-Output
- 1 (version 1.4a) Mini Display Port
- 2 HDCP Support
- Y HDMI Support
- Y Dual-link DVI
- Y Display Output (Max Resolution)
- 2560x 1600 RAMDACs
- 400 Direct X Version Support
- 11.2 Open GL Version Support
- 4.3 Cross Fire Support
- Y Card Dimension (mm)
- 269x 128x 37 mm Weight
- 849g

















...

MSI R9 280X 3GB GDDR5 DVI HDMI Display Port PCI-E Graphics Card NOW YOU'RE GAMING WITH MSI A graphics card is the single most important element for more FPS. As gamers, we understand that not just any graphics card "will do". That's why we bring you the best of the best. We don't want to bug you with noise & heat, but we DO want to give you more performance. With MSI GAMING series graphics cards you get just that. Graphics Engine
- R9 280X Interface
- PCI Express x 16 3.0 Memory Type
- GDDR5 Memory Size (MB)
- 3072 Memory Interface
- 384 bits Core Clock Speed (MHz) 1000 M Hz Core (Boost Clock:1050 M Hz) (OC mode) 1000 M Hz Core (Boost Clock:1020 M Hz) (Gaming mode) 1000 M Hz Core (Boost Clock:1000 M Hz) (Silent mode) Memory Clock Speed (MHz)
- 6000 DVI Output
- 1 (Dual-link DVI-I) HDMI-Output
- 1 (version 1.4a) Mini Display Port
- 2 HDCP Support
- Y HDMI Support
- Y Dual-link DVI
- Y Display Output
- (Max Resolution)2560x 1600 RAMDACs
- 400 Direct X Version Support
- 11.2 Open GL Version Support
- 4.3 Cross Fire Support
- Y Card Dimension (mm)
- 269x 128x 34 mm Weight
- 849g


















...

“ Free AMD Radeon Rewards download coupon GOLD from 28th April 2014 whilst stocks last with selected cards. Offer on selected cards only, not available on ex-display cards.” A graphics card is the single most important element for more FPS. As gamers, we understand that not just any graphics card "will do". That's why we bring you the best of the best. We don't want to bug you with noise & heat, but we DO want to give you more performance. With MSI GAMING series graphics cards you get just that. Graphics Engine
- AMD Radeon R9 290 Interface
- PCI Express x 16 3.0 Memory Type
- GDDR5 Memory Size (MB)
- 4096 Memory Interface
- 512 bits Core Clock Speed (MHz) 1007 M Hz Core (OC mode), 977 M Hz Core (Gaming mode), 947 M Hz Core (Silent mode) Memory Clock Speed (MHz)
- 5000 DVI Output
- 2 (Dual-link DVI-D) HDMI-Output
- 1 (version 1.4a) Display Port
- 1 HDCP Support
- Y HDMI Support
- Y Dual-link DVI
- Y Display Output (Max Resolution)
- 2560x 1600 RAMDACs
- 400 Direct X Version Support
- 11.2 Open GL Version Support
- 4.3 Cross Fire Support
- Y, 4-way (SW) Card

Dimensions (mm)
- 276x 127x 39mm



















...

A graphics card is the single most important element for more FPS. As gamers, we understand that not just any graphics card "will do". That's why we bring you the best of the best. We don't want to bug you with noise & heat, but we DO want to give you more performance. With MSI GAMING series graphics cards you get just that. Specifications GPU Graphics Processing Unit
- AMD Radeon™ R9 290 Core Clock Speed (MHz) 1007 M Hz Core (OC mode) 977 M Hz Core (Gaming mode) 947 M Hz Core (Silent mode) Memory Memory Size (MB)
- 4096 Memory Type
- GDDR5 Memory Interface
- 512 bits Memory Clock Speed (MHz)
- 5000 Memory Bandwidth (GB/sec)
- 320 Display Details DVI Connectors
- DL-DVI-Dx 2 Max Resolution
- 2048x 1536 @60 Hz HDMI Connectors
- 1 (version 1.4a) Max Resolution
- 3840x 2160 @30 Hz-30bpp
- 4096x 2160 @24 Hz-24bpp Display Port
- 1 (version 1.2) Max Resolution
- 4096x 2160 @ 50 Hz Maximum Displays
- Up to 6 displays with the use of a DP MST Hub Features Direct X Version Support
- 11.2 API (feature 11_0) Open GL Version Support
- 4.3 Multi-GPU Technology
- Cross Fire, 4-way (SW) Interface
- PCI Express x 16 3.0 Card

Dimensions Card Dimension (mm)
- 276x 127x 39mm Power Requirements Power consumption (W)
- 250 Recommended Power Supply (W)
- 750 Power Connectors
- 1x 6-Pin, 1x 8-Pin























...

MSI R9 290X 4GB GDDR5 Dual DVI HDMI Display Port Graphics Card Gaming App: OC Mode “ Tune up core clock & fan speed to gain a best performance. Gaming Mode “ Provide a stable gaming experience with higher core clock. Silent Mode “ The best operating environment with extremely low noise. Product

Specification Product Name
- R9 290X GAMING 4G GPU
- AMD Radeon R9 290X Codename
- Hawaii XT Processors
- 2816 Units Core Clock (OC Mode)
- 1040 MHz Memory Clock
- 5000 MHz Memory Size
- 4G GDDR5 Memory Bus
- 512 bits Outputs Display Port / HDMI DL DVI-D*2 Card Dimension
- 276 x 127 x 39 mm Form Factor
- ATX Technology Support: Afterburner OC
- GPU/VDDCI Direct X
- 11.2 Open GL
- 4.3 Multi-GPU Technology
- Cross Fire, 4-way (SW) Multi-Display Technology
- Eyefinity 3D Technology
- HD3D Power Saving Tech.
- Power Tune HDCP Capable
- Y Accessory Driver CD
- Y Installation Guide
- Y Power Cable
- 6pin*1, 8pin*1






















...
