Intel Nuc NUC5i 3MYHE & Board NUC5i 3MYBE Intel Core i 3-5010U Barebone Kit The Intel NUC NUC5i 3MYHE kit board, 1 built with a 5th generation Intel Core i 3 processor, have a small footprint, but big potential. With 4K display support it's an ideal device for digital signage with video analytics, digital kiosk, intelligent vending, or PC replacement. The advanced capabilities of the Intel Core i 3 processor gives your customers performance to run video analytics to help target & personalize messages & offers to the right audience. & the triple display capability means your customers can deliver their messages across multiple screens. Specifications: General Type PC barebone Product Form Factor Mini PC Embedded Security Trusted Platform Module (TPM 2.0) Security Chip Colour Silver with black top & diamond cut around the top Processor / Chipset CPU Intel Core i 3 (5th Gen) 5010U / 2.1 GHz Number of Cores Dual-Core CPU Qty 1 Max CPU Qty 1 CPU Upgradability Not upgradable Processor Main Features Hyper-Threading Technology, Intel Virtualization Technology, Intel Wireless Display, Intel 64 Technology Cache Memory Installed Size 3 MB Cache Per Processor 3 MB RAM Installed Size 0 MB / 16 GB (max) Technology DDR3L SDRAM Form Factor SO-DIMM 204-pin Features Dual channel memory architecture Hard Drive Type No HDD Storage Controller Type SATA
- integrated Controller Interface Type SATA 6 Gb/ s Monitor Monitor Type None. Graphics Controller Type Integrated Graphics Processor Intel HD Graphics 5500 Video Interfaces Display Port Audio Output Type Integrated Sound Output Mode 7.1 channel surround Compliant Standards High Definition Audio Networking Type Integrated Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet Features ACPI support Expansion / Connectivity Bays 1 (total) / 1 (free) x internal 2.5" Slots 2 (total) / 2 (free) x SO-DIMM 204-pin 2 (total) / 2 (free) x M.2 Card Interfaces 4 x USB (Universal Serial Bus) 3.0 (2 front, 2 rear ) 2 x Mini Display Port 1 x headphones/ microphone 1 x LAN (Gigabit Ethernet)
- RJ-45 Miscellaneous Included Accessories VESA mounting kit Features Watchdog timer Theft/ Intrusion Protection Security lock slot (cable lock sold separately) Compliant Standards EN55022, ICES-003, EN55024, CISPR 22, Ro HS, UL 60950-1, IEC 60950-1, EN 60950-1, BSMI CNS 13438, ACPI 3.0b, CAN/ CSA C22.2 No. 60950-1, VCCI V-3, Directive 2002/ 96/ EC, VCCI V-4, KN22, KN24, China Ro HS, Directive 2011/ 65/ UE Power Device Type Power adapter Power Provided 65 Watt Operating System / Software OS Provided No operating system Manufacturer Warranty Service & Support 3 years warranty Service & Support Details Limited warranty
- 3 years

Dimensions & Weight Width 11.5 cm Depth 11.1 cm Height 4.87 cm Environmental Parameters Min Operating Temperature 0 °C Max Operating Temperature 50 °C




...

Equipped with a 5th generation Intel Core™ i 7-5557U processor, NUC5i 7RYH is the highest performing Intel NUC ever. Iris™ graphics 6100 delivers amazing multimedia experiences & makes NUC5i 7RYH perfect for immersive gaming. A replaceable lid provides plenty of options to extend system capabilities or add personal style. Intel Turbo Boost Technology 2.01 delivers performance that adapts to your needs. Add a 2.5-inch HDD or an M.2 SSD for more storage. Complete with Wi-Fi* 802.11ac wireless, Bluetooth*, & 7.1 surround sound, NUC5i 7RYH is ideal for home theater PCs, media server PCs, & home hubs. Specifications Processor 5th generation Intel Core i 7-5557U processor (3.1 G Hz up to 3.4 G Hz, Intel Turbo Boost Technology, dual-core, 4MB cache, 28W thermal design power) Memory Dual-channel DDR3L SODIMMs 1.35V, 1333/1600 M Hz, 16GB maximum Graphics Iris graphics 6100 1x Mini HDMI 1.4a 1x Mini Display Port 1.2 Audio Up to 7.1 surround audio via mini HDMI & mini Display Port Headphone & microphone jack on the front panel Connectivity 2x USB (Universal Serial Bus) 3.0 ports on the back panel 2x USB (Universal Serial Bus) 3.0 ports on the front panel (1x charging capable) 2x internal USB (Universal Serial Bus) 2.0 via header Consumer infrared sensor on the front panel Storage Internal support for M.2 SSD card (22x 42, 22x 60 or 22x 80) Internal SATA3 support for 2.5inch HDD/SSD up to 9.5mm thickness Networking Intel PRO 10/100/1000 network connection Intel wireless-AC 7265 M.2 soldered down, wireless antennas ...

NUC5CPYH is one of the most fully featured Intel NUCs. Based on a dual-core Celeron processor, this Intel NUC

Includes::

...

Specifications Family
- Intel Pentium Dual Core Model Number
- Pentium Dual Core G3220 Socket
- Intel LGA 1150 Core Frequency
-



...

Specifications Model
- Intel G3240 Family
- Intel Pentium Dual Core Core Frequency
- 3.1 G Hz Bus Speed
- 5 GT/s DMI clock



...

Enjoy brilliant PC performance that lets you communicate with friends & family, enjoy entertainment, & get your work done. Get the Intel-level performance you've come to expect & quality you can count on with an Intel Pentium processor. Specifications Processor number
- G3420 Socket
- Intel 1150 Clock Speed
- 3.2 G Hz Number of Cores
- 2 Number of Threads
- 2 Intel Smart Cache
- 3MB Lithography
- 22nm Max TDP
- 53W Processor Graphics
- Intel HD Graphics Graphics Base Frequency
- 350 M Hz Graphics Max Dynamic Frequency
- 1.15 G Hz Graphics Video Max Memory
- 1.7GB











...

Specifications Model
- Intel G3440 Family
- Intel Pentium Dual Core Core Frequency
- 3.3 G Hz Bus Speed
- 5 GT/s DMI clock



...

Specifications Model
- Intel Pentium Dual-Core G3450 Family
- Intel Pentium Dual-Core Core Frequency
- 3.4 G Hz Bus Speed
-



...

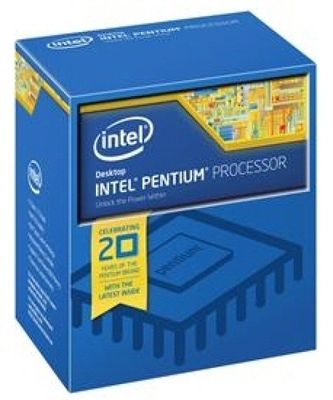

Intel Pentium Dual Core G4500 3.5 G Hz Socket 1151 3MB Cache Retail Boxed Processor Specifications: Processor Number G4500 Cache 3 MB Intel Smart Cache Bus Type DMI3 System Bus 8 GT/s Instruction Set 64-bit Instruction Set Extensions SSE4.1/4.2 Performance of Cores 2 of Threads 2 Processor Base Frequency 3.5 GHz TDP 51 W Memory Specifications Max Memory Size (dependent on memory type) 64 GB Memory Types DDR4-1866/2133, DDR3L-1333/1600 @ 1.35V Max of Memory Channels 2 Max Memory Bandwidth 34.1 GB/s ECC Memory Supported Yes Graphics Specifications Processor Graphics Intel HD Graphics 530 Graphics Base Frequency 350 MHz Graphics Max Dynamic Frequency 1.05 GHz Graphics Video Max Memory 1.7 GB Graphics Output e DP/DP/HDMI/DVI 4K Support Yes, at 60 Hz Max Resolution (Intel Wi Di) 1080p Max Resolution (HDMI 1.4) 4096x 2304@24 Hz Max Resolution (DP) 4096x 2304@60 Hz Max Resolution (e DP
- Integrated Flat Panel)& Dagger; 4096x 2304@60 Hz Max Resolution (VGA) N/A Direct X* Support 12 Open GL* Support 4.4 Intel Quick Sync Video Yes Intel In Tru 3D Technology Yes Intel Insider Yes Intel Wireless Display Yes Intel Clear Video HD Technology Yes Intel Clear Video Technology Yes of Displays Supported 3 Device ID 0x 1912 Expansion Options PCI Express Revision 3.0 PCI Express Configurations Up to 1x 16, 2x 8, 1x 8+2x 4 Max of PCI Express Lanes 16
...

Specifications of Cores
- 2 of Threads
- 2 Clock Speed
- 2.9 GHz Intel Smart Cache
- 3 MB DMI
- 5 GT/s Instruction




...
