Based on the new Intel I350 Gigabit Ethernet Controller, the Intel Ethernet I350 server adapters represent the next step in the Gb E networking evolution for the enterprise & data center by introducing new levels of performance through industry-leading enhancements for both virtualized & i SCSI Unified Networking environments. This new family of adapters also

Includes:: new power management technologies such as Energy Efficient Ethernet (EEE) & DMA Coalescing (DMAC). Intel I350 Gigabit Ethernet Controller With PCI Express V2.0 (5 GT/s) support Halogen-free (copper) Low-profile (dual & quad port copper; dual-port fiber) & standard height (quad-port fiber) DMA coalescing Intel i SCSI remote boot for Windows, Linux, & VMware Eight transmit (Tx) & receive (Rx) queue pairs per port Flexible Port Partitioning: 32 Virtual Functions on Quad-port Support for PCI-SIG SR-IOV

Specification Rx/ Tx round-robin scheduling



...

Shift your PC’s performance into high gear Intel Solid
- State Drives (Intel SSDs ) just got better. The next generation
...

It’s one thing to power your digital display & transfer video blazingly fast. It’s another to do all that & more with a miniscule, intelligent powerhouse of a computing device. Which is why we invented the Intel Next Unit of Computing (NUC). At a diminutive 4”x 4”x 2” form factor & equipped with the Third Generation Intel Core™ i 3 processor, the DC3217BY delivers stunning visuals & responsive performance from a pocket-sized solution. What’s even more amazing is that such a small device can offer so much power in an expandable, customizable package. Dramatically increase data transfer rates & transform device interconnectivity with Thunderbolt™ technology. Get a dif­ference in performance you can truly see & feel. The DC3217BY features Intel’s Thunderbolt™ technology transforming device inter­connectivity, dramatically increasing transfer performance with bi-directional 10 Gbps speed, & offers daisy chaining to multiple devices. two SO-DIMM sockets for expandability upto 16 GB of memory, two PCIe* mini-card connectors for flexible support of wireless & SSD configurations, BIOS vault technology, fast boot & Intel Visual BIOS. PROCESSOR Processor Support • Intel Core™ i 3 3217U Processor (1.8 G Hz, Dual Core processor with 3MB smart cache) • Supports Intel 64 architecture 3 CHIPSET • Intel QS77 Express Chipset GRAPHICS • Intel HD Graphics 4000 • HDMI Port supporting HDMI 1.4a standard • Thunderbolt port supporting display port capability PERIPHERAL CONNECTIVITY • Three Hi-Speed USB (Universal Serial Bus) 2.0 ports (two back panel ports & one front panel port) EXPANSION CAPABILITIES2 • One full length mini-PCIe slot supporting m SATA capability • One half length mini-PCIe slot with dual USB (Universal Serial Bus) 2.0 ports routed SYSTEM BIOS • Intel Visual Bios • 64 Mb Flash EEPROM with Intel Platform Innovation Framework for EFI Plug & Play • SMBIOS2.5 • Intel Express BIOS update support Fast Boot BIOS – Optimized POST for almost instant-on access to PC from power on SYSTEM MEMORY1 Memory Capacity • Dual-channel DDR3 with two connectors for 1600/1333/1066 MHz memory support (16 GB max) Memory Voltage • 1.5V & 1.35 V HARDWARE MANAGEMENT FEATURES • Processor fan speed control • Voltage & temperature sensing • Fan sensor inputs used to monitor fan activity • ACPI-compliant power management control THUNDERBOLT CONNECTOR • 10 Gb/s bi-directional & dual protocol for data & display AUDIO • Intel High Definition Audio (Intel HD Audio) via one HDMI 1.4a output and/or via one Thunder Bolt connector (Display Port 1.1a) supporting 8-channel (7.1) digital audio INDICATORS & CONTROLS • HDD LED, Power LED • Power on/off MECHANICAL Chassis Size • 4.59”x 4.41”x 1.55” (116.6mmx 112.0mmx 39.0mm) Board Size • 4”x 4” (101.6mmx 101.6mm) Baseboard Power Requirements • DC Power 19V, 65 Watt ENVIRONMENT Operating Temperature • 0°C to +55°C Storage Temperature • -20°C to +70°C ...

No more compromising between performance, profile, & price. The Next Unit of Computing (NUC) is a tiny 4"x 4"x 2" computing device with the power of the 3rd generation Intel Core™ i 3 processor. Its lower power consumption enables innovative system designs & energy-efficient applications in places like digital signage, home entertainment, & portable uses PROCESSOR Processor Support • Intel Core i 3 3217U Processor (1.8 G Hz, Dual Core processor with 3MB smart cache) • Supports Intel 64 architecture 3 CHIPSET • Intel QS77 Express Chipset GRAPHICS • Intel HD Graphics 4000 • Dual HDMI Ports supporting dual independent display capability PERIPHERAL CONNECTIVITY • Integrated Intel 10/100/1000 Network Connection • Three Hi-Speed USB (Universal Serial Bus) 2.0 ports (two back panel ports & one front panel port) EXPANSION CAPABILITIES • One full length mini-PCIe slot supporting m SATA capability • One half length mini-PCIe slot with dual USB (Universal Serial Bus) 2.0 ports routed SYSTEM BIOS • Intel Visual Bios • 64 Mb Flash EEPROM with Intel Platform Innovation Framework for EFI Plug & Play • SMBIOS2.5 • Intel Express BIOS update support Fast Boot BIOS – Optimized POST for almost instant-on access to PC from power on SYSTEM MEMORY Memory Capacity • Dual-channel DDR3 with two connectors for 1600/1333/1066 MHz memory support (16 GB max) Memory Voltage • 1.5V & 1.35 V HARDWARE MANAGEMENT FEATURES • Processor fan speed control • Voltage & temperature sensing • Fan sensor inputs used to monitor fan activity • ACPI-compliant power management control INTEL PRO 10/100/1000 NETWORK CONNECTION • Low-power design AUDIO • Intel High Definition Audio (Intel HD Audio) via two HDMI 1.4a outputs supporting 8 channel (7.1) digital audio Indicators & Controls • HDD LED, Power LED • Power on/off MECHANICAL Chassis Size • 4.59”x 4.41”x 1.55” (116.6mmx 112.0mmx 39.0mm) Board Size • 4”x 4” (101.6mmx 101.6mm) Baseboard Power Requirements • DC Power 19V, 65 Watt ENVIRONMENT Operating Temperature • 0°C to +55°C Storage Temperature • -20°C to +70°C AC Power Cord Not Included ...

The Next Unit of Computing Kit DCCP847DYE delivers new levels of performance & responsiveness in a pocket-sized solution. With an Intel Celeron processor, the Next Unit of Computing is an affordable, customizable computing system that fits in the palm of your hand & offers a world of flexibility. This fully scalable, next generation computing device provides a flexible, customizable engine. Create a PC home system to experience your movies & photos or drive digital signage, such as menus, news, & weather. The Next Unit of Computing challenges you to rethink what’s possible. Because the only thing more amazing than Intel technology is what you’ll do with it. Form Factor • 4.0 inches by 4.0 inches (101.60 millimeters by 101.60 millimeters)
- UCFF Processor • Soldered
- down Intel Celeron processor 847 with up to 17 W TDP
- Integrated graphics
- Integrated memory controller Memory • Two 204
- pin DDR3 SDRAM Small Outline Dual Inline Memory Module (SO-DIMM) sockets • Support for DDR3 1333 MHz & DDR3 1066 MHz SO-DIMMs • Support for 1 Gb, 2 Gb, & 4 Gb memory technology • Support for up to 16 GB of system memory with two SO
- DIMMs using 4 Gb memory technology • Support for non
- ECC memory • Support for 1.35 V low voltage JEDEC memory Chipset • Intel QS77 Express Chipset consisting of the Intel QS77 Express Platform Controller Hub (PCH) Graphics • Integrated graphics support for processors with Intel Graphics Technology: • Two High Definition Multimedia Interface * (HDMI*) back panel connectors Audio • Intel High Definition Audio via the HDMI v 1.4a interfaces Peripheral Interfaces • USB (Universal Serial Bus) 2.0 ports:
- Three front panel ports (via one dual
- port internal header & one front panel connector)
- Two ports are implemented with vertical back panel con nectors
- One port is reserved for the PCI Express * Half
- Mini Card
- One port is reserved for the PCI Express Full
- Mini Card • SATA port:
- One internal m SATA port (PCI Express Full
- Mini Card) for SSD support Expansion Capabilities • One PCI Express Half
- Mini Card connector • One PCI Express Full
- Mini Card connector BIOS • Intel BIOS resident in the Serial Peripheral Interface (SPI) Flash device • Support for Advanced Configuration & Power Interface (ACPI), Plug & Play, & System Management BIOS (SMBIOS) • LAN Support • Gigabit (10/100/1000 Mb/s) LAN subsystem using the Intel 82579V Gigabit Ethernet Controller Hardware Monitor Subsystem Hardware monitoring subsystem, based on a Nuvoton NPCE791C embedded controller, including: • Voltage sense to detect out of range power supply voltages • Thermal sense to detect out of range thermal values • One processor fan header • Fan sense input used to monitor fan activity • Simple fan speed control

















...

This bundle kit comprises of the Intel C53427HYE & an Intel 525 Series 180GB m SATA SSD. All that is required to complete this barebone is your choice of SO-DIMM memory & Operating system. A revolution in ultra-compact device design, Intel NUC packages a fully scalable, computing solution in the smallest possible form factor, complete with the Intel Core i 5 v Pro processor. This new generation computing device provides a flexible, customizable engine to drive digital signage, kiosks, & intelligent computing for small spaces, or anywhere else you can imagine. Intel NUC also has triple display 1 capabilities for multiple monitoring & display, along with Intel v Pro technology which lets your IT service provider remotely manage or repair your system. With that kind of power & size, you’ll rethink what’s possible. Because the only thing more amazing than Intel technology is what you’ll do with it. Form factor UCFF Processor 3rd generation Intel Core i 5-3427U processor (soldered down) with active fan heatsink Memory Two SO-DIMM slots supporting up to 16 GB of 1333/1600 M Hz DDR-3 memory Chipset Intel QS77 Express Chipset Display Dual Mini-Display Port 1.1a ports HDMI port supporting 1.4a Supporting triple independent display capability Audio Intel High Definition Audio (Intel HD Audio)2 subsystem in the following configuration: 8-channel (7.1) digital audio via HDMI 1.4a output & via one Display Port 1.1a connector LAN support Intel Gigabit Ethernet Controller Peripheral interfaces One USB (Universal Serial Bus) 3.0 port (front panel) Two USB (Universal Serial Bus) 2.0 ports (back panel) Two USB (Universal Serial Bus) 2.0 ports (internal headers) Expansion capabilities Full size mini PCI Express with m SATA support Half size mini PCI Express Intel m SATA specifications Range- Intel 525 Series Size
- 180GB Format
- m SATA 6 Gb/s 25nm MLC Sequential Read
- 550 MB/s Sequential Write
- 520 MB/s Random Read (8GB Span)
- 50000 IOPS Random Write (8GB Span)
- 60000 IOPS Latency
- Read
- 80 µs Latency
- Write
- 85 µs Power
- Active
- 300 m W Power
- Idle
- 250 m W Vibration
- Operating
- 2.17 Grms Vibration
- Non-Operating
- 3.13 Grms Shock (Operating & Non-Operating)
- 1, 000 G/0.5 msec Operating Temperature
- 30 C Weight
- <10 grams Mean Time Between Failures (MTBF)
- 1, 200, 000 hours Uncorrectable Bit Error Rate (UBER)
- <1 sector per 10^16 bits read






















...

Inte Nuc Intel NUC Kit BOXNUC5i 3RYK Intel Core i 3-5010U Barebone Board Form Factor UCFF (4" x 4") Internal Drive Form Factor M.2 SSD of Internal Drives Supported 1 Embedded Options Available No Lithography 14 nm TDP 15 W DC Input Voltage Supported 12-19 VDC Board Chipset Intel Core i 3-5010U Processor (3M Cache, 2.10 GHz) Processor Included Intel Core i 3-5010U Processor (3M Cache, 2.10 GHz) Warranty Period 3 yrs -Memory Specifications Max Memory Size (dependent on memory type) 16 GB Memory Types DDR3L-1333/1600 1.35V 2x SO-DIMMs Max of Memory Channels 2 Max Memory Bandwidth 25.6 GB/s Max of DIMMs 2 ECC Memory Supported No Graphics Specifications Integrated Graphics Yes Graphics Output Mini-DP 1.2, Mini-HDMI 1.4a Intel Clear Video Technology Yes of Displays Supported 3 Expansion Options PCI Express Revision 2 PCI Express Configurations M.2 slot with PCIe X4 lanes Max of PCI Express Lanes 4 PCIe x 4 Gen 2.x 1 I/O Specifications USB (Universal Serial Bus) Revision 2.0, 3.0 of USB (Universal Serial Bus) Ports 6 USB (Universal Serial Bus) 2.0 Configuration (Back + Internal) 0 + 2 USB (Universal Serial Bus) 3.0 Configuration (Back + Internal) 2B, 2F + 0 Total of SATA Ports 2 Max of SATA 6.0 Gb/s Ports 2 RAID Configuration RAID-0, RAID-1 Audio (back channel + front channel) 7.1 digital + analog stereo headset Integrated LAN 10/100/1000 Integrated Wifi Intel Wireless-AC 7265 + BT 4.0 Integrated Bluetooth Yes ...

Board Form Factor
- UCFF (4" x 4") Internal Drive Form Factor
- M.2 & 2.5" Drive Number of Internal Drives Supported
- 2


...

Requires users choice of SO-DIMM memory, 2.5inch storage (SSD or HDD) & choice of OS to complete the barebone system (not included). Building an home theater PC (HTPC) or personal cloud? The Intel NUC with an Intel Celeron processor gives you control over your digital media. HDMI* video, an infrared sensor port, & internal 2.5-inch drive support will allow you to drive your home entertainment experience from the 4x 4 form factor, so you can create a digital media center or personal cloud for your media files that fits in the palm of your h&. In addition, this Intel NUC introduces the foundation for a new boot management capability that lets you choose the operating systems that work best for you via a user-friendly interface. Features & Configurations Processor Intel Celeron processor N2820 (up to 2.4 G Hz dual-core, 1MB cache, 7.5W TDP) Memory 1 DDR3L SODIMM 1.35V, 1333/1600 MHz (down clocked to 1066 MHz), 8GB maximum Graphics Intel HD Graphics (up to 756 M Hz) 1 x HDMI* 1.4a Audio Up to 7.1 surround audio via HDMI interface Back panel headphone/microphone jack Peripheral connectivity 1 x USB (Universal Serial Bus) 3.0 port on the front panel 2 x USB (Universal Serial Bus) 2.0 ports on the back panel Front panel consumer IR sensor Storage Internal support for 2.5¨ HDD or SSD Networking 10/100/1000 Mbps Ethernet port Intel Wireless-N 7260BN pre-installed, including wireless antennas (IEEE 802.11bgn, Bluetooth* 4.0, Intel Wireless Display built-in) Enclosure Silver aluminum ring with diamond cut around black top Dimensions: 116.6mm x 112mm x 51.5mm Power adapter 12V, 36W wall-mount AC adapter Multi-country plugs (IEC types A/C/G/I) Additional features Intel Visual BIOS Intel Visual Boot Manager Windows* 8.1 & 8 Logo Compatible with Linux* VESA mount bracket (75x 75mm & 100x 100mm compatible) Half-length PCIe* mini-card slot (used by pre-installed wireless card) Low-acoustics active cooling design Kensington lock support Included in the box Intel NUC board DN2820FYB integrated in enclosure VESA mount bracket, with screws 12V, 36W wall-mount AC adapter Intel Celeron brand sticker Integration guide ...

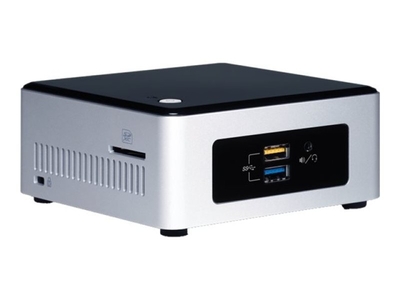

Intel NUC Kit NUC5i 3MYBE Intel Core I3-5010U Barebone Memory Specifications Max Memory Size (dependent on memory type) 16 GB Memory Types DDR3L-1333/1600 1.35V SO-DIMM Max of Memory Channels 2 Max Memory Bandwidth 25.6 GB/s Max of DIMMs 2 ECC Memory Supported No -Graphics Specifications Integrated Graphics Yes Graphics Output 2x m DP, 1x e DP of Displays Supported 3 -Expansion Options PCI Express Revision Gen 2 PCI Express Configurations M.2 slot with PCIe X2 lanes + HS Custom Solutions Header with PCIe x 4 lanes I/O Specifications USB (Universal Serial Bus) Revision USB 3.0, USB (Universal Serial Bus) 2.0 of USB (Universal Serial Bus) Ports 6 USB (Universal Serial Bus) 2.0 Configuration (External + Internal) 0 + 2 USB (Universal Serial Bus) 3.0 Configuration (External + Internal) 4 + 0 Total of SATA Ports 1 Max of SATA 6.0 Gb/s Ports 1 RAID Configuration 2.5" SSD + M.2 SATA SSD (RAID-0 RAID-1) Serial Port via Internal Header Yes Audio (back channel + front channel) Front panel headset jack Integrated LAN 10/100/1000 Mbps ...
