Specifications Capacity
- 80 GB Form Factor
- 2.5" Interface
- SATA 6 Gb Lithography
- 20 nm Sequential Read
- 340




...

Intel DH87MC socket LGA1150 DVI HDMI Dispaly Port 7.1 Channel Audio ATX Motherboard Delivering the performance you need & want to finish tasks quickly with the power that keeps up with them. The Intel Desktop Board DH87MC supports 4th generation Intel Core processor so you can multitask quickly & move effortlessly between applications, from e-mail to a web browser to a video or spreadsheet & back again. The Intel Desktop Board DH87MC features Power Supervisor to protect critical components by automatically monitoring & controlling the power flow, being equipped with an advanced protection shield to protect the processor & the motherboard from the electrostatic discharge damage, & having Intel Visual BIOS to make easy & fast real-time configuration changes. Form factor
- ATX AA (Altered Assembly)
- G74242-xxx BIOS ID string
- MCH8710H.86A Processor Supports the 4th generation Intel Core i 7 processor, Intel Core i 5 processor, & other Intel processors in the LGA1150 package View all compatible Intel processor numbers Memory Dual channel DDR3 1600/1333 MHz Four DIMMs, 32GB maximum system memory 1.2V-1.8V memory voltage control for maximum DIMM compatibility Supports Intel Extreme Memory Profile (Intel XMP) Chipset Intel H87 Chipset Intel Rapid Storage Technology, supports RAID 0, 1, 5, 10 Intel Smart Response Technology Intel Rapid Start Technology Intel Smart Connect Technology Graphics For processors with Intel HD Graphics: Display Port*, DVI-I, & HDMI ports Audio Intel High Definition Audio 1 subsystem in the following configuration: Ten (7.1+2) channel Intel High Definition Audio Five stack analog audio ports Rear optical S/PDIF out port & S/PDIF out header Front panel microphone/headphone header LAN support
- Gigabit Ethernet controller Peripheral interfaces Four USB (Universal Serial Bus) 3.0 ports (two back panel ports, two via internal headers) Ten USB (Universal Serial Bus) 2.0 ports (four back panel ports, five via internal headers, one via Mini PCIe* slot) Six Serial ATA 6.0 Gb/s ports Expansion capabilities Two PCI Express 2.0 x 1 slots & one PCI Express 2.0 x 4 slot Three PCI slots One full-size/half-size Mini PCIe card slot with support for m SATA solid-state drives



...

Intel's family of adapter, the Intel' Ethernet Converged Network Adapter X520 with SFP+ connectivity, is the flexible & scalable Ethernet adapter for today's demanding data center environments. Data center networks are being pushed to their limits. The escalating deployments of servers with multi-core processors & demanding applications such as High Performance Computing (HPC), database clusters, & video-on-demand are driving the need for 10 Gbps connections. Customers require flexible & scalable I/O solutions to meet the rigorous requirements of running mission-critical applications in virtualized & unified storage environments. ...

Unified networking solutions on the Intel Ethernet Converged Network Adapter X540 let you combine the traffic of multiple data center networks like LAN & SAN onto a single efficient network fabric. You now have the choice of NFS, i SCSI, or Fiber Channel over Ethernet (FCo E) to carry both network & storage traffic at speeds of up to 10 Gbps. The Intel X540 adapter combines support for all of these traffic types in one adapter at no additional cost & with no additional licensing fees for the adapter. i SCSI uses Ethernet to carry storage traffic, extending the familiarity & simplicity of Ethernet to storage networking, without the need for SAN-specific adapters or switches. Intel Ethernet X540 is the easiest, most reliable, & most cost-effective way of connecting servers to i SCSI SANs. ...

The Intel Ethernet 10 Gigabit Converged Network Adapter X520-SR1 enables data center transformation by delivering a reliable, unified 10 Gb E short range fiber optic connection. The Intel Ethernet Converged Network Adapter X520 provides advanced unified networking capabilities, including support for i SCSI, NFS, and FCo E. The Intel Ethernet Converged Network Adapter X520 facilitates greater network infrastructure consolidation & is the best choice for I/O virtualization. Intel Ethernet
- it just works! Specifications Device Type Network adapter Form Factor Plug-in card
- low profile Interface (Bus) Type PCI Express 2.0 x 8 Ports 10 G Base-SR Cabling Type Ethernet 10 G Base-SR Data Link Protocol Gig E, 10 Gig E, FCo E Data Transfer Rate 10 Gbps Network / Transport Protocol TCP/ IP, UDP/ IP, IPSec, i SCSI Processor 82599ES
- Intel


...

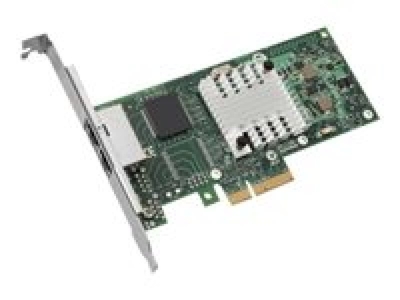

The Intel Ethernet Server Adapter I350-T2 offers two high-performing 1 Gb E connections. The adapter provides cost effective port density, advance features for superior virtualization & application performance, & new industry leading power management capability, all in a halogen-free design. The I350-T2 performance enhancing features include Single Route I/O virtualization (SR-IOV), Virtual Machine Device Queues (VMDq), Intelligent Offloads, PCIe v 2.0, 9.5K Jumbo Frame support & time-stamping. Based on the new fully integrated (bridgeless) Intel Ethernet Controller I350, this adapter introduces new levels of performance for both virtualized & i SCSI Unified Networking environments. ...

The new Intel Ethernet Server Adapter I350-F2 builds on Intel's extended history of excellence in Ethernet products. Intel continues its market leadership with this new generation of PCIe Gb E network adapters. Built with the bridgeless Intel I350 Ethernet Controller, these adapters represent the next step in the Gb E networking evolution for the enterprise & data center by introducing new levels of performance through industry-leading enhancements for both virtualized & i SCSI Unified Networking environments. This new family of adapters also

Includes:: new power management technologies such as Energy Efficient Ethernet (EEE) & DMA Coalescing (DMAC). Intel Ethernet
- It just works! Flexible I/O Virtualization The Intel Ethernet I350 adapter

Includes:: Intel Virtualization technology for connectivity to deliver I/O virtualization & Quality of Service (Qo S) features designed directly into the I350 controller on the adapter. I/O virtualization advances network connectivity models used in the servers to more efficient models by providing Flexible Port Partitioning (FPP), multiple Rx/ Tx queues, and on-controller Qo S functionality that can be used in both virtual & non-virtual server deployments. Scalable i SCSI performance Intel Ethernet I350 Server Adapter with native i SCSI initiators provides a simple, dependable, cost-effective way to connect to LANs & i SCSI SANs. These native initiators are broadly tested using multiple generations of operating systems, storage systems, and OS tools to help ensure reliability & ease of use. Standardizing on Intel Ethernet for i SCSI allows administrators to use a single initiator, TCP/IP stack, and a common set of management tools & IT policies. Energy Efficient Ethernet (EEE) The Intel Ethernet I350 Server Adapter family supports the IEEE802.3az Energy Efficient Ethernet (EEE) standard so that, during periods of low network activity, EEE reduces the power consumption of an Ethernet connection by negotiating with a compliant EEE switch port to transition to a low power idle (LPI) state. This reduces the controller power to Approx. 50% of its normal operating power, saving power on the network port & the switch port. As soon as increased network traffic is intelligently detected, the controller on the platform & the switch quickly come back to full power to handle the increased network traffic. DMA coalescing Another power management technology that can reduce power on the server platform is DMA Coalescing (DMAC). Typically, when a packet arrives at a server, DMA calls are made to transfer the packet within the server. These calls wake up the processor, memory & other system components from a lower power state in order to perform the tasks required to handle the incoming packet. Based on the configurable DMAC settings, incoming packets are buffered momentarily before any DMA calls are made. This enables the controller to intelligently identify opportunities to batch multiple packets together so that when components are wakened from lower power states they can efficiently handle the batched packets at the same time. This enables platform components to remain in lower power states longer, which can dramatically reduce platform energy consumption.




...

Intel Ethernet Server Adapter I350-T2 Network Adapter Please note: server components such as memory & power supplies must match those already installed in a server. To avoid compatibility clashes or for advice, please contact us on solutions@ebuyer.com. ...

Based on the new Intel I350 Gigabit Ethernet Controller, the Intel Ethernet I350 server adapters represent the next step in the Gb E networking evolution for the enterprise & data center by introducing new levels of performance through industry-leading enhancements for both virtualized & i SCSI Unified Networking environments. This new family of adapters also

Includes:: new power management technologies such as Energy Efficient Ethernet (EEE) & DMA Coalescing (DMAC). Intel I350 Gigabit Ethernet Controller With PCI Express V2.0 (5 GT/s) support Halogen-free (copper) Low-profile (dual & quad port copper; dual-port fiber) & standard height (quad-port fiber) DMA coalescing Intel i SCSI remote boot for Windows, Linux, & VMware Eight transmit (Tx) & receive (Rx) queue pairs per port Flexible Port Partitioning: 32 Virtual Functions on Quad-port Support for PCI-SIG SR-IOV

Specification Rx/ Tx round-robin scheduling



...

The Intel Ethernet SFP+ SR (Short Range
- Max link distance is 300 m) Optic is a SFP+ module designed for the Intel Ethernet Converged
...
