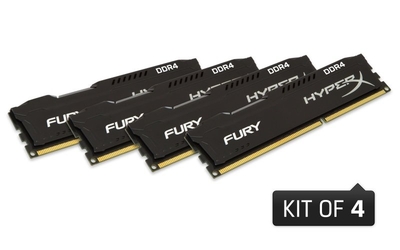

Automatic overclocking for X99 platforms. Hyper X FURY DDR4 can handle even the toughest battle. It automatically recognizes its host platform & overclocks to the highest frequency published (up to 2666 M Hz) FURY DDR4 runs at 1.2V, even at 2666 M Hz, so it stays cooler while you play. You don’t need to alter the voltage to reach higher speeds, which means there’s more power for other hardware in the system. FURY’s sleek, asymmetrical black heat spreader provides enhanced thermal dissipation to help keep your cool & help you stand out from the crowd. It complements Intel’s 6- or 8-core processors for faster video editing, 3D rendering, gaming & AI processing. FURY is affordable & available in kits with capacities up to 64GB in black
- Automatic overclocking — up to 2666 M Hz
- Low power consumption at 1.2V
- Optimized for Intel’s X99 chipset
- Stylish low profile heat spreader in black FEATURES/BENEFITS Easy to install — plug-&-play functionality Automatic overclocking — reach faster speeds & higher capacities just by installing the memory, no adjustments in BIOS needed Cost-efficient — the perfect combination of price & DDR4 performance Unique — asymmetrical, signature FURY heat spreader Design — low profile, black heat spreader color & matching PCB Reliable — 100% factory tested Compatible — tested with all popular brands of motherboards SPECIFICATIONS Capacities
- 8GB, 16GB, 32GB & 64GB kits Frequency Speed
- 2133 M Hz, 2400 M Hz, 2666 M Hz CAS Latency
- CL14-CL15 Voltage — 1.2V Operating Temperature
- 0°C to 85°C Storage Temperature: -55°C to 100°C

Dimensions
- 133.35mm x 34.24mm Compatible with Intel X99 chipset










...

Automatic overclocking for X99 platforms. Hyper X FURY DDR4 can handle even the toughest battle. It automatically recognizes its host platform & overclocks to the highest frequency published (up to 2666 M Hz) FURY DDR4 runs at 1.2V, even at 2666 M Hz, so it stays cooler while you play. You don’t need to alter the voltage to reach higher speeds, which means there’s more power for other hardware in the system. FURY’s sleek, asymmetrical black heat spreader provides enhanced thermal dissipation to help keep your cool & help you stand out from the crowd. It complements Intel’s 6- or 8-core processors for faster video editing, 3D rendering, gaming & AI processing. FURY is affordable & available in kits with capacities up to 64GB in black
- Automatic overclocking — up to 2666 M Hz
- Low power consumption at 1.2V
- Optimized for Intel’s X99 chipset
- Stylish low profile heat spreader in black FEATURES/BENEFITS Easy to install — plug-&-play functionality Automatic overclocking — reach faster speeds & higher capacities just by installing the memory, no adjustments in BIOS needed Cost-efficient — the perfect combination of price & DDR4 performance Unique — asymmetrical, signature FURY heat spreader Design — low profile, black heat spreader color & matching PCB Reliable — 100% factory tested Compatible — tested with all popular brands of motherboards SPECIFICATIONS Capacities
- 8GB, 16GB, 32GB & 64GB kits Frequency Speed
- 2133 M Hz, 2400 M Hz, 2666 M Hz CAS Latency
- CL14-CL15 Voltage — 1.2V Operating Temperature
- 0°C to 85°C Storage Temperature: -55°C to 100°C

Dimensions
- 133.35mm x 34.24mm Compatible with Intel X99 chipset










...

Automatic overclocking for X99 platforms. Hyper X FURY DDR4 can handle even the toughest battle. It automatically recognizes its host platform & overclocks to the highest frequency published (up to 2666 M Hz) FURY DDR4 runs at 1.2V, even at 2666 M Hz, so it stays cooler while you play. You don’t need to alter the voltage to reach higher speeds, which means there’s more power for other hardware in the system. FURY’s sleek, asymmetrical black heat spreader provides enhanced thermal dissipation to help keep your cool & help you stand out from the crowd. It complements Intel’s 6- or 8-core processors for faster video editing, 3D rendering, gaming & AI processing. FURY is affordable & available in kits with capacities up to 64GB in black
- Automatic overclocking — up to 2666 M Hz
- Low power consumption at 1.2V
- Optimized for Intel’s X99 chipset
- Stylish low profile heat spreader in black FEATURES/BENEFITS Easy to install — plug-&-play functionality Automatic overclocking — reach faster speeds & higher capacities just by installing the memory, no adjustments in BIOS needed Cost-efficient — the perfect combination of price & DDR4 performance Unique — asymmetrical, signature FURY heat spreader Design — low profile, black heat spreader color & matching PCB Reliable — 100% factory tested Compatible — tested with all popular brands of motherboards SPECIFICATIONS Capacities
- 8GB, 16GB, 32GB & 64GB kits Frequency Speed
- 2133 M Hz, 2400 M Hz, 2666 M Hz CAS Latency
- CL14-CL15 Voltage — 1.2V Operating Temperature
- 0°C to 85°C Storage Temperature: -55°C to 100°C

Dimensions
- 133.35mm x 34.24mm Compatible with Intel X99 chipset










...

Automatic overclocking for X99 platforms. Hyper X FURY DDR4 can handle even the toughest battle. It automatically recognizes its host platform & overclocks to the highest frequency published (up to 2666 M Hz) FURY DDR4 runs at 1.2V, even at 2666 M Hz, so it stays cooler while you play. You don’t need to alter the voltage to reach higher speeds, which means there’s more power for other hardware in the system. FURY’s sleek, asymmetrical black heat spreader provides enhanced thermal dissipation to help keep your cool & help you stand out from the crowd. It complements Intel’s 6- or 8-core processors for faster video editing, 3D rendering, gaming & AI processing. FURY is affordable & available in kits with capacities up to 64GB in black
- Automatic overclocking — up to 2666 M Hz
- Low power consumption at 1.2V
- Optimized for Intel’s X99 chipset
- Stylish low profile heat spreader in black FEATURES/BENEFITS Easy to install — plug-&-play functionality Automatic overclocking — reach faster speeds & higher capacities just by installing the memory, no adjustments in BIOS needed Cost-efficient — the perfect combination of price & DDR4 performance Unique — asymmetrical, signature FURY heat spreader Design — low profile, black heat spreader color & matching PCB Reliable — 100% factory tested Compatible — tested with all popular brands of motherboards SPECIFICATIONS Capacities
- 8GB, 16GB, 32GB & 64GB kits Frequency Speed
- 2133 M Hz, 2400 M Hz, 2666 M Hz CAS Latency
- CL14-CL15 Voltage — 1.2V Operating Temperature
- 0°C to 85°C Storage Temperature: -55°C to 100°C

Dimensions
- 133.35mm x 34.24mm Compatible with Intel X99 chipset










...

Hyper X HX421C14FBK2/16 is a kit of two 1G x 64-bit (8GB) DDR4-2133 CL14 SDRAM (Synchronous DRAM) 2 Rx 8, memory module, based on sixteen 512M x 8-bit FBGA components per module. Each module kit supports Intel Extreme Memory Profiles (Intel XMP) 2.0. Total kit capacity is 16GB. Each module has been tested to run at DDR4-2133 at a low latency timing of 14-14-14 at 1.2V. Additional timing parameters are shown in the Plug-N-Play (Pn P) Timing Parameters section below. ...

Hyper X HX421C14FBK2/8 is a kit of two 512M x 64-bit (4GB) DDR4-2133 CL14 SDRAM (Synchronous DRAM) 1 Rx 8, memory module, based on eight 512M x 8-bit FBGA components per module. Each module kit supports Intel Extreme Memory Profiles (Intel XMP) 2.0. Total kit capacity is 8GB. Each module has been tested to run at DDR4-2133 at a low latency timing of 14-14-14 at 1.2V. - Power Supply: VDD = 1.2V Typical
- VDDQ = 1.2V Typical
- VPP
- 2.5V Typical
- VDDSPD = 2.2V to 3.6V
- Nominal & dynamic on-die termination (ODT) for data, strobe, & mask signals
- Low-power auto self refresh (LPASR)
- Data bus inversion (DBI) for data bus
- On-die VREFDQ generation & calibration
- Single-rank
- On-board I2 serial presence-detect (SPD) EEPROM
- 16 internal banks; 4 groups of 4 banks each
- Fixed burst chop (BC) of 4 & burst length (BL) of 8 via the mode register set (MRS)
- Selectable BC4 or BL8 on-the-fly (OTF)
- Fly-by topology
- Terminated control command & address bus
- Height 1.230” (31.25mm), w/o heatsin















...

Hyper X HX421C14FB/4 is a 512M x 64-bit (4GB) DDR4-2133 CL14 SDRAM (Synchronous DRAM) 1 Rx 8, memory module, based oneight 512M x 8-bit FBGA components per module. Each module kit supports Intel Extreme Memory Profiles (Intel XMP) 2.0. Each module has been tested to run at DDR4-2133 at a low latency timing of 14-14-14 at 1.2V. ...

Get in the game with Hyper X FURY. Even newbies get up to speed fast, since FURY automatically recognises its host platform & automatically overclocks to up to 1866 M Hz*, providing plenty of power for your next death match. FURY's asymmetric heatspreader design lets you stand out from the crowd. It's available in black, blue, red & -- for the first time in the Hyper X line -- white, with a black PCB. So your rig can reflect your style & you can show it off with pride. It's 100-percent tested & LAN-ready plus it's backed by free technical support. Hyper X Pn P memory will run in most DDR3 systems up to the speed allowed by the manufacturer's system BIOS. Pn P cannot increase the system memory speed faster than is allowed by the manufacturer's BIOS. Hyper X FURY is available in frequency speeds from 1333 M Hz to 1866 M Hz. Reach faster speeds & higher capacities by just installing the memory, no adjustments in BIOS needed. No matter if you are an Intel or AMD gamer, the Hyper X FURY is ideal for you. To make sure it works, Hyper X FURY has been tested with popular brands of motherboards. Does your system have enough memory to get you into the game? Kits are available to max out your system's memory with up to 16GB of high-performance goodness. ...

Get in the game with Hyper X FURY. Even newbies get up to speed fast, since FURY automatically recognises its host platform & automatically overclocks to up to 1866 M Hz, providing plenty of power for your next death match. FURY's asymmetric heatspreader design lets you stand out from the crowd. It's available in black, blue, red & -- for the first time in the Hyper X line -- white, with a black PCB. So your rig can reflect your style & you can show it off with pride. It's 100-percent tested & LAN-ready plus it's backed by free technical support. Hyper X Pn P memory will run in most DDR3 systems up to the speed allowed by the manufacturer's system BIOS. Pn P cannot increase the system memory speed faster than is allowed by the manufacturer's BIOS. Hyper X FURY is available in frequency speeds from 1333 M Hz to 1866 M Hz. Reach faster speeds & higher capacities by just installing the memory, no adjustments in BIOS needed. No matter if you are an Intel or AMD gamer, the Hyper X FURY is ideal for you. To make sure it works, Hyper X FURY has been tested with popular brands of motherboards. Does your system have enough memory to get you into the game? Kits are available to max out your system's memory with up to 16GB of high-performance goodness. ...

Hyper X FURY Low Voltage 16GB Kit DDR3L 1600 M Hz Memory (2x 8GB) Hyper X HX316LC10FB/4 is a 512M x 64-bit (4GB) DDR3L-1600 CL10 SDRAM (Synchronous DRAM) 1 Rx 8, low voltage, memory module, based on eight 512M x 8-bit DDR3 FBGA components. Each module kit supports Intel Extreme Memory Profiles (Intel XMP) 2.0. This module has been tested to run at DDR3L-1600 at a low latency timing of 10-10-10 at 1.35V. Additional timing parameters are shown in the Pn P Timing Parameters section below. The JEDEC standard electrical & mechanical specifications areas follows: Pn P JEDEC TIMING PARAMETERS: JEDEC/ Pn P: DDR3L-1600 CL10-10-10 @1.35V/1.5V DDR3L-1333 CL9-9-9 @1.35V/1.5V DDR3L-1066 CL7-7-7 @1.35V/1.5V XMP Profile 1: DDR3L-1600 CL10-10-10 @1.35V FEATURES JEDEC standard 1.35V & 1.5V Power Supply VDDQ = 1.35V & 1.5V 800 M Hz f CK for 1600 Mb/sec/pin independent internal bank Programmable CAS Latency: 11, 10, 9, 8, 7, 6 Programmable Additive Latency: 0, CL
- 2, or CL
- 1 clock 8-bit pre-fetch Burst Length: 8 (Interleave without any limit, sequential with starting address “000” only), 4 with t CCD = 4 which does not allow seamless read or write [either on the fly using A12 or MRS] Bi-directional Differential Data Strobe Internal (self) calibration: Internal self calibration through ZQ pin (RZQ: 240 ohm ± 1%) On Die Termination using ODT pin Average Refresh Period 7.8us at lower than TCASE 85°C, 3.9us at 85°C < TCASE ≤ 95°C Asynchronous Reset Height 1.291” (32.80mm) w/heatsink, single sided component SPECIFICATIONS CL (IDD) 10 cycles Row Cycle Time (t R Cmin) 28.125ns (min.) Refresh to Active/ Refresh Command Time (t RFCmin) 260ns (min.) Row Active Time (t RASmin) 37.5ns (min.) Maximum Operating Power TBD W* UL Rating 94 V
- 0 Operating Temperature 0oC to +85oC Storage Temperature -55oC to +100oC * Power will vary depending on the SDRAM used.


...
