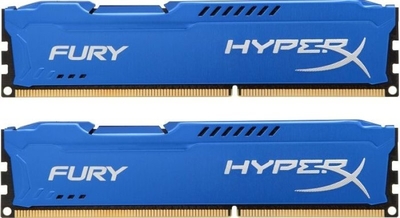

HyperX Fury 16GB 1600MHz DDR3 CL10 DIMM (Kit Of 2) Memory

Product Description

SPECIFICATIONS CL (IDD) 10 cycles Row Cycle Time (t R Cmin) 48.125ns (min.) Refresh to Active/ Refresh 260ns (min.) Command Time (t RFCmin) Row Active Time (t RASmin) 37.5ns (min.) Maximum Operating Power TBD W* (per module) UL Rating 94 V
- 0 Operating Temperature 0oC to 85oC Storage Temperature -55oC to +100oC * Power will vary depending on the SDRAM used. FEATURES • JEDEC standard 1.5V (1.425V ~1.575V) Power Supply • VDDQ = 1.5V (1.425V ~ 1.575V) • 800 M Hz f CK for 1600 Mb/sec/pin • 8 independent internal bank • Programmable CAS Latency: 11, 10, 9, 8, 7, 6 • Programmable Additive Latency: 0, CL
- 2, or CL
- 1 clock • 8-bit pre-fetch • Burst Length: 8 (Interleave without any limit, sequential with starting address “000” only), 4 with t CCD = 4 which does not allow seamless read or write [either on the fly using A12 or MRS] • Bi-directional Differential Data Strobe • Internal (self) calibration: Internal self calibration through ZQ pin (RZQ: 240 ohm ± 1%) • On Die Termination using ODT pin • Average Refresh Period 7.8us at lower than TCASE 85°C, 3.9us at 85°C < TCASE < 95°C • Asynchronous Reset • PCB: Height 1.180” (30.00mm), double sided component
