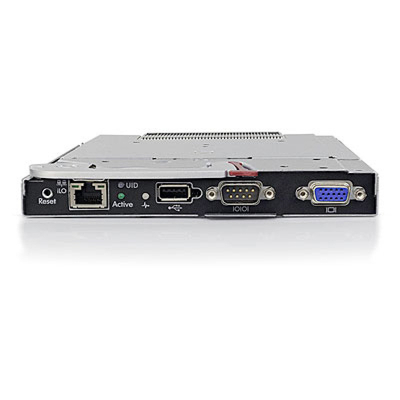

HPE BL CClass C7000 Onboard Administrator With KVM Option

The Onboard Administrator is the brains of the new c-Class infrastructure. Together with the enclosure's HPE insight display, the Onboard Administrator has been designed for both local and remote administration of HPE BladeSystem c-Class. This module and its firmware provides wizards for simple, fast setup and configuration, highly available and secure access to the HPE Bladesystem infrastructure, security roles for server, network, and storage administrators, automated power and cooling of the HPE Bladesystem infrastructure, agent-less device health and status and thermal logic power and cooling information and control. HPE BladeSystem solutions start with a BladeSystem c7000 Enclosure, optional c7000 hot-plug power supplies, HPE Active Cool Fans, and an optional redundant
BladeSystem Onboard Administrator module. Once the enclosure has been selected, the following components can be added: networking interconnect modules, HPE ProLiant and Integrity Server Blades, and Insight Control management software. Each c7000 enclosure is built with the following functions: Up to 16 half-height and/or up to 8 full-height server blades and/or storage blades per enclosure. Up to 4 different interconnect fabrics (Ethernet, FC, IB, iSCSI, SAS, etc.) supported simultaneously within the enclosure. Choice of a single-phase, three-phase or a -48V DC power subsystem for flexibility in connecting to datacenter power. HP Thermal Logic technology for lower power consumption and airflow. Four (4) or Ten (10) Active Cool 200 fans as standard. For redundancy and improved
power consumption and acoustics; additional Active Cool 200 Fan kits can be added for a maximum of 10 fans. Redundant hot-plug cooling, redundant hot-plug power supplies, redundant connections, redundant interconnect modules, optional redundant BladeSystem Onboard Administrator management modules. Lowest cost of ownership. Full AC redundancy - with no power zones. An BladeSystem Onboard Administrator management module is built in to the enclosure with the following functions: Robust, multiple enclosure setup and control. Reports asset and inventory information for the devices in the enclosure. Reports thermal and power information, including real-time actual power usage per server and per enclosure. Front-mounted Insight Display for easy management within the datacenter. Integrated
access to all server blade iLOs from a single cable. Provides integrated access to interconnect bay device management ports from the single BladeSystem Onboard Administrator cable. Single sign-on capability for all devices in the enclosure Role-based security locally and/or with LDAP directory services. Provides a wizard-based initial setup process for easy configuration. A BladeSystem c7000 enclosure provides the following benefits: With local and remote hardware management integrated across the solution, one full enclosure can be managed as easily as one server. Scalable: Management and network interconnects extend scalability beyond a single enclosure, allowing resources to be pooled and shared across multiple enclosures. Investment protection: Accommodates multiple server and network
designs in one enclosure. Lower costs per server, in comparison to rack-mounted servers Lower power consumption, in comparison to rack-mounted servers. Lower airflow requirements, in comparison to rack-mounted servers Please note: server components such as memory & power supplies must match those already installed in a server. To avoid compatibility clashes please contact us for advice on solutions@ebuyer.com.
