GIGABYTE HD Experience Series Powered by AMD Radeon HD 7750 GPU Integrated with the first 2GB DDR3 memory & 128-bit memory interface Features Dual-link DVI-D*2 / HDMI / D-Sub Overclock to 850 MHz Support AMD Avivo™HD System power supply requirement: 400W

Specification
- Chipset
- Radeon HD 7750 Digital max resolution
- 2560 x 1600 Analog max resolution
- 2048 x 1536 Process Technology
- 28 nm PCB Form
- ATX Core Clock
- 850 MHz Memory Clock
- 1600 MHz Memory Size
- 2 GB Memory Bus
- 128 bit Card Bus
- PCI-E 3.0 Memory Type
- DDR3 Direct X
- 11.1 Open GL
- 4.1 Multi-view
- 2 I/O
- HDMIx 1, DVI-Dx 2, D-subx 1 Card size
- H= 40mm, L= 195mm, W= 136.5mm Power requirement
- 400 W



















...

GIGABYTE HD Experience Series Powered by AMD Radeon HD 7770 GHz Edition GPU Integrated with the first 1GB GDDR5 memory & 128-bit memory interface Features Dual-link DVI-I / HDMI / mini Display Port * 2 Overclock to 1050 MHz Support Cross Fire X™ & Avivo™HD System power supply requirement: 450W Specificaion
- Chipset
- Radeon HD 7770 Digital max resolution
- 2560 x 1600 Analog max resolution
- 2048 x 1536 Process Technology
- 28 nm PCB Form
- ATX Core Clock
- 1050 MHz Memory Clock
- 4500 MHz Memory Size
- 1 GB Memory Bus
- 128 bit Card Bus
- PCI-E 3.0 Memory Type
- GDDR5 Direct X
- 11.1 Open GL
- 4.2 Multi-view
- 4 I/O
- HDMIx 1, DVI-Ix 1, mini Display Portx 2 Card size
- H=41.5 mm, L=212 mm, W=136.5 mm Power requirement
- 450 W

















...

Free Never Settle Forever Bronze Games Coupon. Select 1 game from the AMD Redemption Portal. Valid with selected purchases from 20th August 2013 whilst coupon stocks last. Offer not available on ex display cards. This new “ Triangle Cool” fansink integrates a patented triangle-shaped aluminum block into the aluminum extrusion module. The triangle design maximizes the efficiency of the wind flow to enhance heat dissipation, & also minimizes the turbulence between extruded aluminum fins, which can improve cooling performance for the whole fansink. Chipset Radeon
- HD 7790 Memory Clock
- 6000 MHz Core Clock
- 1075 MHz PCB Form
- ATX Process Technology
- 28 nm Digital max resolution
- 2560 x 1600 Analog max resolution
- 2048 x 1536 Multi-view
- 3 Memory Size
- 1 GB Memory Bus
- 128 bit Card Bus
- PCI-E 3.0 Memory Type
- GDDR5 Direct X
- 11.1 Open GL
- 4.2 Card size
- H=42, L=203, W=136 I/O HDMI * 1 DVI-I * 1 DVI-D * 1 Display Port Power requirement
- 450W















...

Supporting multiple independent display outputs simultaneously, AMD Eyefinity technology delivers innovative graphics display capabilities enabling massive desktop workspaces & ultra-immersive visual environments for the ultimate panoramic computing experience. Chipset
- AMD Radeon HD 7790 Memory Clock
- 6000 MHz Process Technology
- 28 nm PCB Form
- ATX Digital max resolution
- 2560 x 1600 Analog max resolution
- 2048 x 1536 Multi-view
- 3 Memory Size
- 1 GB Memory Bus
- 128 bit Card Bus
- PCI-E 3.0 Memory Type
- GDDR5 Direct X
- 11.1 Open GL
- 4.2 Core Clock
- 1075 MHz













...

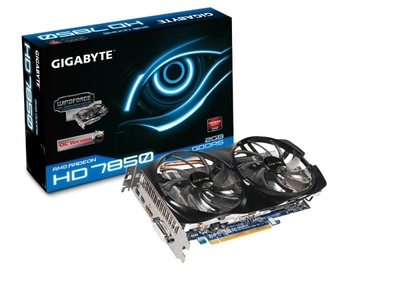

Free Never Settle Forever Silver Games Coupon. Select 2 games from the AMD Redemption Portal. Valid with selected purchases from 20th August 2013 whilst coupon stocks last. Offer not available on ex display cards. GIGABYTE HD Experience Series Powered by AMD Radeon HD 7850 GPU Integrated with the first 1GB GDDR5 memory & 256-bit memory interface Features Dual-link DVI-I / HDMI / mini Display Port * 2 Overclock to 900 MHz Support AMD Eyefinity Technology & Avivo™HD System power supply requirement: 500W

Specification
- Chipset
- Radeon HD 7850 Core Clock
- 900 MHz Digital max resolution
- 2560 x 1600 Analog max resolution
- 2048 x 1536 Process Technology
- 28 nm PCB Form
- ATX Memory Clock
- 4800 MHz Memory Size
- 1 GB Memory Bus
- 256 bit Card Bus
- PCI-E 3.0 Memory Type
- GDDR5 Direct X
- 11.1 Open GL
- 4.2 Multi-view
- 4 I/O
- HDMIx 1, DVI-Ix 1, Mini Display Portx 2 Card size
- H= 42.5mm, L=241 mm, W= 137mm Power requirement
- 500 W



















...

Gigabyte HD 7950 3GB GDDR5 DVI HDMI Display Port PCI-E Graphics Card Features & Benefits: Lower GPU Temperature: Ultra Durable VGA board provides dramatic cooling effect on lowering both GPU & memory temperature by doubling the copper inner layer of PCB. Better Overclocking Capability: Ultra Durable VGA board reduces voltage ripples in normal & transient state, thus effectively lowers noises & ensures higher overclocking capability. Decrease Power Switching Loss: Ultra Durable VGA board allows more bandwidth for electron passage & reduces circuit impedance. The less circuit impedance, the more stable flow of current & can effectively improve power efficiency. Chipset
- Radeon HD 7950 Digital max resolution
- 2560 x 1600 Analog max resolution
- 2048 x 1536 Process Technology
- 28 nm PCB Form
- ATX Core Clock
- Base 900/ Boost 1000 MHz Memory Clock
- 5000 MHz Memory Size
- 3072 MB Memory Bus
- 384 bit Card Bus
- PCI-E 3.0 Memory Type
- GDDR5 Direct X
- 11.1 Open GL
- 4.2 Multi-view
- 4 I/O HDMI * 1 DVI-I * 1 Mini Display Port *2 Card size
- H=38 mm, L=285 mm, W=126 mm Power requirement
- 500 W















...

Free Never Settle Forever Gold Games Coupon. Select 3 games from the AMD Redemption Portal. Valid with selected purchases from 20th August 2013 whilst coupon stocks last. Offer not available on ex display cards. GIGABYTE Ultra Durable VGA Series Powered by AMD Radeon HD 7970 GHz Edition GPU Integrated with the first 3GB GDDR5 memory & 384-bit memory interface Features Dual-link DVI-I / HDMI / mini Display Port * 2 Overclock to 1100 MHz Support AMD Eyefinity Technology & Avivo™HD System power supply requirement: 600W

Specification
- Chipset
- Radeon HD 7970 GHz Edition Digital max resolution
- 2560 x 1600 Analog max resolution
- 2048 x 1536 Process Technology
- 28 nm PCB Form
- ATX Core Clock
- Base 1050/ Boost 1100 MHz Memory Clock
- 6000 MHz Memory Size
- 3 GB Memory Bus
- 384 bit Card Bus
- PCI-E 3.0 Memory Type
- GDDR5 Direct X
- 11.1 Open GL
- 4.2 Multi-view
- 4 I/O
- HDMIx 1, DVI-Ix 1, Mini Display Portx 2 Card size
- H= 38mm, L=285 mm, W=126 mm Power requirement
- 600 W



















...

Free Never Settle Forever Gold Games Coupon. Select 3 games from the AMD Redemption Portal. Valid with selected purchases from 20th August 2013 whilst coupon stocks last. Offer not available on ex display cards. Gigabyte HD 7970 3GB GDDR5 DVI HDMI Displayport PCI-E Graphics Card GIGABYTE introduces the latest exclusive " Triangle Cool" Technology to reach a better cooling performance. The latest patented technology combines fin with clip module in a special triangle shape. With the original anti-turbulence structure plus the new triangle cooling design, it enhances the efficiency of heat dissipation dramatically by minimizing the flow of turbulence between fans. Therefore, the " Triangle Cool" Technology provides a more efficient air flow for the cooling system. Chipset
- Radeon HD 7970 Digital max resolution
- 2560 x 1600 Analog max resolution
- 2048 x 1536 Process Technology
- 28 nm PCB Form
- ATX Core Clock
- 1000 MHz Memory Clock
- 5500 MHz Memory Size
- 3072 MB Memory Bus
- 384 bit Card Bus
- PCI-E 3.0 Memory Type
- GDDR5 Direct X
- 11.1 Open GL- 4.2 Multi-view
- 4 I/O HDMI * 1 DVI-I * 1 Mini Display Port *2 Card size
- H=38 mm, L=285 mm, W=126 mm Power requirement
- 550 W














...

Contents 1x Gigabyte GA-Z87-HD3 1x Intel Core i 5 4670K (1150/ Quad Core/3.4 Ghz/6 Mb/ Haswell/84W/ Graphics) 8 Gb DDR3 (2x 4 Gb) Corsair Vengeance Pro Description Feel the Force of the Gigabyte Performance Bundle ideal of Gamers, Power Users & Overclockers. Built on the latest Intel Haswell platform it offers the perfect balance of power, performance & style. Complimented by the blisteringly fast Corsair Vengeance Pro Low Latency Memory. Why you Should Buy this bundle - Tested Prior to shipping & Pre Built to work straight out of the box
- Quad Core Computing for the most demanding of applications & games
- Killer good looks on a stylish black Motherboard/ Memory Combo
- Industry leading heat management Motherboard GIGABYTE 8 Series Motherboards support the latest 4th Generation Intel Core processors, bringing together a unique blend of features & technologies that offer the absolute ultimate platform for your next PC build. From high current capable digital power delivery, performance-enhancing caching technologies, exclusive high-end audio features, advanced networking & device charging, gold plated hardware connectors & of course, killer good looks, GIGABYTE 8 series motherboards are in a class of their own. Next Gen Intel 8 Series Platform The latest Intel 8 Series platform offers significant improvements in performance & power consumption with the latest 4th generation Intel Core processors & Intel Z87 chipsets. As well as a boost in overall productivity, the latest HD4600 Intel processor graphics provide native 4K resolution playback over standard HDMI connectivity, with significantly higher frame rates in the latest DX11 3D game titles. * Supports 4th Generation Intel Core processors * GIGABYTE Ultra Durable 4 Plus Technology * GIGABYTE UEFI Dual BIOS * 15µ gold plated CPU socket * Multi-GPU Support * All solid capacitors * GIGABYTE On/ Off Charge for USB (Universal Serial Bus) devices * LAN with high ESD Protection CPU Want a system that can not only rock the latest game but also rip through your media? Then combining a 4th gen Intel Core processor in the LGA1150 socket with the latest Intel 8 Series Z chipset will get you the results you want. The built-in visuals of the 4th gen Intel Core processors deliver everything you need to enjoy a stunning & seamless graphic experience when viewing & interacting with pictures and media on your PC without the need for a discrete graphics card, thanks to Intel HD Graphics 4600—the new baseline for all 4th gen Intel Core i 5 & Intel Core i 7 processors. Unlocked Intel Core processors enable system tuning for the processor cores, memory, & power. Adjusting these settings provides extra performance & fexibility for more complex multimedia applications & immersive gaming. Whether you are a novice overclocker or a seasoned veteran, these processors will have you singing their praises in no time. The Intel Core processor family delivers a great PC experience. Whether you are looking for enhanced performance, greater adaptability, or differentiated visual features, Intel has the processor to ft your needs. If you are using your PC for creativity, playing games, or everyday tasks such as homework & e-mail, these new processors make it easier to design, render, edit, play, & share. Processor Number – i 5-4670K Nm Technology – 22 Core Frequency – 3.4 G Hz Turbo Frequency – 3.8 G Hz HT- No Cores – 4 Threads – 4 Corsair Vengeance Pro Series memory modules are designed for overclocking on the latest 3rd & 4th generation Intel Core platforms, with eight-layer PCBs & ICs specially selected for performance potential. The aluminum heat spreaders provide superior temperature management & have the aggressive look you want in your gaming rig. XMP 1.3 profiles allow for automatic, reliable overclocking. They’re available in multiple colors to let you match your Vengeance Pro memory to your system’s color scheme. As a bonus, they’re priced to deliver class-leading value, so you’ll have more room left in your system build budget. Built for overclocking Each Vengeance Pro Series module is built from an eight-layer PCB & highly-screened memory ICs. The efficient heat spreader provides effective cooling to improve overclocking potential. Designed for great looks The heat spreader doesn’t just allow Vengeance Pro Series to run better –the aggressive yet refined form factor looks great in showcase systems. The color accent clip lets you match your Vengeance Pro Series memory to your system’s color scheme. Performance & Compatibility Vengeance Pro Series memory is optimized for performance on the latest 3rd & 4th generation Intel Core platforms. XMP 1.3 profile support makes stable overclocking easy & automatic. Perfect size The Vengeance Pro Series module height is carefully designed to fit easily in most system while still providing ample cooling performance & that edgy look.


...

Gigabyte Pre Built Intel Premium Bundle (Intel Core i 3
- 3220/ Gigabyte GA-H61M-USB3V/ Corsair 8gb DDR3 XMS Memory) Contents 1x
...
