Features with 2880 CUDA cores OC GURU II with GPU Boost 2.0 Technology Technology for intelligent monitoring of clock speed, ensuring that the GPU runs at its peak & the game is at its highest frame rate possible. It offers new levels of customization, including GPU temperature target, overclocking, & unlocked voltage. 3072 MB Memory & 384-bit Memory interface With high capacity memory, it can fulfill the multi-screen & high definition application for gamer to satisfy a real gaming spirits., Specifications Base Clock
- 876 Hz Boost Clock
- 928 M Hz Memory Clock
- 7000MHZ Effective CUDA Cores
- 2880 Bus Type
- PCI-Express 3.0 Memory Detail
- 3072MB GDDR5 Memory Bit Width
- 384bit






...

Gigabyte GTX 780 Ti 3GB GDDR5 Dual DVI HDMI Display Port PCI-E Graphics Card NEW WINDFORCE 3X 2 SLOT 450W cooling system Keeping the same 450W Cooling capacity using only 2 slots, the New WINDFORCE 3X 450W cooling system is equipped with two 8mm & four 6mm cooper heat-pipes, inclined fans, & GIGABYTE Triangle Cool technology. This not only provides an effective heat dissipation capacity but GPU Boost 2.0 technology also enables higher performance due to a lower temperature. Chipset Ge Force
- GTX 780 Ti Memory Clock
- 7000 MHz Process Technology
- 28 nm Memory Size
- 3072 MB Memory Bus
- 384 bit Core Clock
- Base / Boost clockï14;š1020 / 1085 MHz Card Bus
- PCI-E 3.0 Memory Type
- GDDR5 Direct X
- 11.2 Open GL
- 4.4 PCB Form
- ATX Digital max resolution
- 4096 X 2160 (via a single HDMI connector & not supported with two DVI connectors) Analog max resolution
- 2048 x 1536 Multi-view
- 4 I/O DVI-I*1 DVI-D*1 Display Port*1 HDMI*1 Card size
- L=292mm, W=129mm, H=43mm Power requirement
- 600W (with two 8-pin external power connectors) NVIDIA Features NVIDIA Ge Force Experience Want to know the best settings to play your games? Ge Force Experience will figure it out for you. Ge Force Experience connects you to NVIDIA’s cloud datacenter to download optimal game settings tailored to your PC based on your CPU, GPU & monitor. Optimal settings maximize image quality while maintaining great performance so you get the best experience. A built-in interactive screenshot viewer helps you learn more about each setting & their benefits. The Ge Force Experience application automatically notifies you of new driver releases from NVIDIA. With a single click, you’ll be able to update the driver directly, without leaving your desktop. NVIDIA Kepler GPU Architecture NVIDIAs Kepler GPU architecture has been designed from the ground up not just for maximum performance in the latest Direct X 11 games, but optimal performance per watt. The new SMX streaming multiprocessor is twice as efficient as the prior generation & the new geometry engine draws triangles twice as fast. The result is world class performance & the highest image quality in an elegant & power efficient graphics card. NVIDIA TXAA Technology Film studios invest enormous resources in developing advanced technologies & post-production effects to deliver visually spectacular experiences for movie-goers. For games to achieve this level of fidelity, developers need new anti–aliasing technologies that deliver a viewing experience that eliminates the distraction of unrealistic, jagged lines (”jaggies”) & aliased shimmering–without compromising performance. NVIDIA is making this happen today, bringing cinema-quality graphics to life in blockbuster gaming titles with an innovative new temporal antialiasing technology called TXAA. Available exclusively on Ge Force GTX Kepler-powered GPUs, TXAA is designed to be directly integrated into game engines. Plus, it combines the raw power of MSAA (multi–sample anti–aliasing) with a temporal filter & sophisticated resolve filters similar to those used in CG films. The end result is a smoother, more lifelike image than any other comparable technique. NVIDIA FXAA Technology FXAA is a NVIDIA-developed post-processing technique that selectively blurs a game’s graphics to tackle unsightly jagged edges & high-contrast pixel deviation. Gaining popularity amongst developers due to its low performance impact & its ability to anti-alias transparent textures & details, FXAA is highly recommended for low-end & mid-range systems. NVIDIA G-SYNC Technology NVIDIA G-SYNC is a groundbreaking new innovation that casts aside decades-old thinking to create the smoothest, most responsive computer displays ever seen. A monitor module you can install yourself, or buy pre-installed in gamer-focused monitors, NVIDIA G-SYNC waves goodbye to the days of screen tearing, input lag, & eyestrain-inducing stuttering caused by decades-old tech lazily carried over from analog TVs to modern-day monitors. NVIDIA GPU Boost 2.0 Technology Up until now, GPUs have operated at a fixed clock speed when playing 3D games, even if they have the potential to run faster. GPU Boost intelligently monitors graphics work load & increases the clock speed whenever possible. The result is that the GPU always performs at its peak & you get the highest framerate possible. With NVIDIA GPU Boost 2.0 Enjoy new levels of customization with advanced controls like GPU temperature target, overclocking, & overvoltage. NVIDIA Adaptive V-Sync Technology Nothing is more distracting than framerate stuttering & screen tearing. The first tends to occur when framerates are low, the second when framerates are high. Adaptive V-Sync is a smarter way to render frames. At high framerates, V-sync is enabled to eliminate tearing, at low frame rates, its disabled to minimize stuttering. It gets rid of distractions so you can get on with gaming. NVIDIA Phys X Technology Phys X is designed specifically for hardware acceleration by powerful processors with hundreds of cores. Combined with the tremendous parallel processing capability of the GPU, Phys X will provide an exponential increase in physics processing power & will take gaming to a new level delivering rich, immersive physical gaming environments. NVIDIA CUDA Technology NVIDIA CUDA technology is the world’s only C language environment that enables programmers & developers to write software to solve complex computational problems in a fraction of the time by tapping into the many-core parallel processing power of GPUs. With millions of CUDA-capable GPUs already deployed, thousands of software programmers are already using the free CUDA software tools to accelerate applications—from video & audio encoding to oil & gas exploration, product design, medical imaging, & scientific research. NVIDIA Surround with up to 4 Monitors Nothing is as breathtaking as playing your favorite games across three monitors. At 5760 x 1080, the expanded field of view fully engages human peripheral vision & provides for the most immersive experience in racing & flight simulators. Add in a fourth display to keep tabs on chat, email or web while you are gaming. NVIDIA 3D Vision NVIDIA 3D Vision brings a fully immersive, stereoscopic 3D experience to the PC. A combination of high-tech wireless glasses & advanced software, 3D Vision transforms hundreds of PC games into full stereoscopic 3D. Get up to 2x monitor & keyboard brightness with NVIDIA 3D Light Boost technology. In addition, you can enjoy 3D movies & 3D digital photographs from 3 D Vision Live.com in eye popping, crystal-clear quality. NVIDIA SLI Technology Used by the most demanding gamers worldwide, SLI lets you link up to three Ge Force GTX 760s together for astounding performance. & with NVIDIA’s track record for fast & frequent software updates, you’ll not only get the best performance in existing games, but future games too.















...

WINDFORCE 3X 450W Cooling system 8+2 phase VRM power design Powered by NVIDIA Ge Force GTX 780 Ti GPU Integrated with industrys best 3GB GDDR5 memory 384-bit memory interface Features Dual-link DVI-I/ DVI-D / HDMI / Display Port BASE:876 MHz / BOOST:928 MHz System power supply requirement: 600W Keeping the same 450W Cooling capacity using only 2 slots, the New WINDFORCE 3X 450W cooling system is equipped with two 8mm & four 6mm cooper heat-pipes, inclined fans, & GIGABYTE “ Triangle Cool” technology. This not only provides an effective heat dissipation capacity but GPU Boost 2.0 technology also enables higher performance due to a lower temperature. Specifications Chipset
- Ge Force GTX 780 Ti Memory Clock
- 7000 MHz Process Technology
- 28 nm Memory Size
- 3072 MB Memory Bus
- 384 bit Core Clock
- Base / Boost clock:876 / 928 MHz Card Bus
- PCI-E 3.0 Memory Type
- GDDR5 Direct X
- 11.2 Open GL
- 4.4 PCB Form
- ATX Digital max resolution
- 4096 X 2160 (via a single HDMI connector & not supported with two DVI connectors) Analog max resolution
- 2048 x 1536 Multi-view
- 4 I/O
- DVI-I*1, DVI-D*1, Display Port*1, HDMI*1 Card size
- L=292mm, W=129mm, H=43mm Power requirement
- 600W (with two 8-pin external power connectors)
















...

NVIDIA Features NVIDIA Ge Force Experience Want to know the best settings to play your games? Ge Force Experience will figure it out for you. Ge Force Experience connects you to NVIDIA’s cloud datacenter to download optimal game settings tailored to your PC based on your CPU, GPU & monitor. Optimal settings maximize image quality while maintaining great performance so you get the best experience. A built-in interactive screenshot viewer helps you learn more about each setting & their benefits. The Ge Force Experience application automatically notifies you of new driver releases from NVIDIA. With a single click, you’ll be able to update the driver directly, without leaving your desktop. NVIDIA Kepler GPU Architecture NVIDIAs Kepler GPU architecture has been designed from the ground up not just for maximum performance in the latest Direct X 11 games, but optimal performance per watt. The new SMX streaming multiprocessor is twice as efficient as the prior generation & the new geometry engine draws triangles twice as fast. The result is world class performance & the highest image quality in an elegant & power efficient graphics card. NVIDIA TXAA Technology Film studios invest enormous resources in developing advanced technologies & post-production effects to deliver visually spectacular experiences for movie-goers. For games to achieve this level of fidelity, developers need new anti–aliasing technologies that deliver a viewing experience that eliminates the distraction of unrealistic, jagged lines (”jaggies”) & aliased shimmering–without compromising performance. NVIDIA is making this happen today, bringing cinema-quality graphics to life in blockbuster gaming titles with an innovative new temporal antialiasing technology called TXAA. Available exclusively on Ge Force GTX Kepler-powered GPUs, TXAA is designed to be directly integrated into game engines. Plus, it combines the raw power of MSAA (multi–sample anti–aliasing) with a temporal filter & sophisticated resolve filters similar to those used in CG films. The end result is a smoother, more lifelike image than any other comparable technique. NVIDIA FXAA Technology FXAA is a NVIDIA-developed post-processing technique that selectively blurs a game’s graphics to tackle unsightly jagged edges & high-contrast pixel deviation. Gaining popularity amongst developers due to its low performance impact & its ability to anti-alias transparent textures & details, FXAA is highly recommended for low-end & mid-range systems. NVIDIA G-SYNC Technology NVIDIA G-SYNC is a groundbreaking new innovation that casts aside decades-old thinking to create the smoothest, most responsive computer displays ever seen. A monitor module you can install yourself, or buy pre-installed in gamer-focused monitors, NVIDIA G-SYNC waves goodbye to the days of screen tearing, input lag, & eyestrain-inducing stuttering caused by decades-old tech lazily carried over from analog TVs to modern-day monitors. NVIDIA GPU Boost 2.0 Technology Up until now, GPUs have operated at a fixed clock speed when playing 3D games, even if they have the potential to run faster. GPU Boost intelligently monitors graphics work load & increases the clock speed whenever possible. The result is that the GPU always performs at its peak & you get the highest framerate possible. With NVIDIA GPU Boost 2.0 Enjoy new levels of customization with advanced controls like GPU temperature target, overclocking, & overvoltage. NVIDIA Adaptive V-Sync Technology Nothing is more distracting than framerate stuttering & screen tearing. The first tends to occur when framerates are low, the second when framerates are high. Adaptive V-Sync is a smarter way to render frames. At high framerates, V-sync is enabled to eliminate tearing, at low frame rates, its disabled to minimize stuttering. It gets rid of distractions so you can get on with gaming. NVIDIA Phys X Technology Phys X is designed specifically for hardware acceleration by powerful processors with hundreds of cores. Combined with the tremendous parallel processing capability of the GPU, Phys X will provide an exponential increase in physics processing power & will take gaming to a new level delivering rich, immersive physical gaming environments. NVIDIA CUDA Technology NVIDIA CUDA technology is the world’s only C language environment that enables programmers & developers to write software to solve complex computational problems in a fraction of the time by tapping into the many-core parallel processing power of GPUs. With millions of CUDA-capable GPUs already deployed, thousands of software programmers are already using the free CUDA software tools to accelerate applications—from video & audio encoding to oil & gas exploration, product design, medical imaging, & scientific research. NVIDIA Surround with up to 4 Monitors Nothing is as breathtaking as playing your favorite games across three monitors. At 5760 x 1080, the expanded field of view fully engages human peripheral vision & provides for the most immersive experience in racing & flight simulators. Add in a fourth display to keep tabs on chat, email or web while you are gaming. NVIDIA 3D Vision NVIDIA 3D Vision brings a fully immersive, stereoscopic 3D experience to the PC. A combination of high-tech wireless glasses & advanced software, 3D Vision transforms hundreds of PC games into full stereoscopic 3D. Get up to 2x monitor & keyboard brightness with NVIDIA 3D Light Boost technology. In addition, you can enjoy 3D movies & 3D digital photographs from 3 D Vision Live.com in eye popping, crystal-clear quality. NVIDIA SLI Technology Used by the most demanding gamers worldwide, SLI lets you link up to three Ge Force GTX 780s together for astounding performance. & with NVIDIA’s track record for fast & frequent software updates, you’ll not only get the best performance in existing games, but future games too. Specifications Chipset
- Ge Force GTX 780 Memory Clock
- 6008 MHz Process Technology
- 28 nm Memory Size
- 3072 MB Core Clock
- Base / Boost clock:954 / 1006 MHz Memory Bus
- 384 bit Card Bus
- PCI-E 3.0 Memory Type
- GDDR5 Direct X
- 11.1 Open GL
- 4.3 PCB Form
- ATX Digital max resolution
- 4096 X 2160 (via a single HDMI connector & not supported with two DVI connectors) Analog max resolution
- 2048 x 1536 Multi-view
- 4 I/O
- DVI-I*1, DVI-D*1, Display Port*1, HDMI*1 Card size
- L=292mm, W=129mm, H=43mm Power requirement
- 600W (with two 8-pin external power connectors)
















...

NVIDIA Features NVIDIA Ge Force Experience Want to know the best settings to play your games? Ge Force Experience will figure it out for you. Ge Force Experience connects you to NVIDIA’s cloud datacenter to download optimal game settings tailored to your PC based on your CPU, GPU & monitor. Optimal settings maximize image quality while maintaining great performance so you get the best experience. A built-in interactive screenshot viewer helps you learn more about each setting & their benefits. The Ge Force Experience application automatically notifies you of new driver releases from NVIDIA. With a single click, you’ll be able to update the driver directly, without leaving your desktop. NVIDIA Kepler GPU Architecture NVIDIAs Kepler GPU architecture has been designed from the ground up not just for maximum performance in the latest Direct X 11 games, but optimal performance per watt. The new SMX streaming multiprocessor is twice as efficient as the prior generation & the new geometry engine draws triangles twice as fast. The result is world class performance & the highest image quality in an elegant & power efficient graphics card. NVIDIA TXAA Technology Film studios invest enormous resources in developing advanced technologies & post-production effects to deliver visually spectacular experiences for movie-goers. For games to achieve this level of fidelity, developers need new anti–aliasing technologies that deliver a viewing experience that eliminates the distraction of unrealistic, jagged lines (”jaggies”) & aliased shimmering–without compromising performance. NVIDIA is making this happen today, bringing cinema-quality graphics to life in blockbuster gaming titles with an innovative new temporal antialiasing technology called TXAA. Available exclusively on Ge Force GTX Kepler-powered GPUs, TXAA is designed to be directly integrated into game engines. Plus, it combines the raw power of MSAA (multi–sample anti–aliasing) with a temporal filter & sophisticated resolve filters similar to those used in CG films. The end result is a smoother, more lifelike image than any other comparable technique. NVIDIA FXAA Technology FXAA is a NVIDIA-developed post-processing technique that selectively blurs a game’s graphics to tackle unsightly jagged edges & high-contrast pixel deviation. Gaining popularity amongst developers due to its low performance impact & its ability to anti-alias transparent textures & details, FXAA is highly recommended for low-end & mid-range systems. NVIDIA G-SYNC Technology NVIDIA G-SYNC is a groundbreaking new innovation that casts aside decades-old thinking to create the smoothest, most responsive computer displays ever seen. A monitor module you can install yourself, or buy pre-installed in gamer-focused monitors, NVIDIA G-SYNC waves goodbye to the days of screen tearing, input lag, & eyestrain-inducing stuttering caused by decades-old tech lazily carried over from analog TVs to modern-day monitors. NVIDIA GPU Boost 2.0 Technology Up until now, GPUs have operated at a fixed clock speed when playing 3D games, even if they have the potential to run faster. GPU Boost intelligently monitors graphics work load & increases the clock speed whenever possible. The result is that the GPU always performs at its peak & you get the highest framerate possible. With NVIDIA GPU Boost 2.0 Enjoy new levels of customization with advanced controls like GPU temperature target, overclocking, & overvoltage. NVIDIA Adaptive V-Sync Technology Nothing is more distracting than framerate stuttering & screen tearing. The first tends to occur when framerates are low, the second when framerates are high. Adaptive V-Sync is a smarter way to render frames. At high framerates, V-sync is enabled to eliminate tearing, at low frame rates, its disabled to minimize stuttering. It gets rid of distractions so you can get on with gaming. NVIDIA Phys X Technology Phys X is designed specifically for hardware acceleration by powerful processors with hundreds of cores. Combined with the tremendous parallel processing capability of the GPU, Phys X will provide an exponential increase in physics processing power & will take gaming to a new level delivering rich, immersive physical gaming environments. NVIDIA CUDA Technology NVIDIA CUDA technology is the world’s only C language environment that enables programmers & developers to write software to solve complex computational problems in a fraction of the time by tapping into the many-core parallel processing power of GPUs. With millions of CUDA-capable GPUs already deployed, thousands of software programmers are already using the free CUDA software tools to accelerate applications—from video & audio encoding to oil & gas exploration, product design, medical imaging, & scientific research. NVIDIA Surround with up to 4 Monitors Nothing is as breathtaking as playing your favorite games across three monitors. At 5760 x 1080, the expanded field of view fully engages human peripheral vision & provides for the most immersive experience in racing & flight simulators. Add in a fourth display to keep tabs on chat, email or web while you are gaming. NVIDIA 3D Vision NVIDIA 3D Vision brings a fully immersive, stereoscopic 3D experience to the PC. A combination of high-tech wireless glasses & advanced software, 3D Vision transforms hundreds of PC games into full stereoscopic 3D. Get up to 2x monitor & keyboard brightness with NVIDIA 3D Light Boost technology. In addition, you can enjoy 3D movies & 3D digital photographs from 3 D Vision Live.com in eye popping, crystal-clear quality. NVIDIA SLI Technology Used by the most demanding gamers worldwide, SLI lets you link up to three Ge Force GTX 780s together for astounding performance. & with NVIDIA’s track record for fast & frequent software updates, you’ll not only get the best performance in existing games, but future games too. Specifications Chipset
- Ge Force GTX 780 Memory Clock
- 6008 MHz Process Technology
- 28 nm Memory Size
- 3072 MB Memory Bus
- 384 bit Core Clock
- Base / Boost clockï14;š863 / 900 MHz Card Bus
- PCI-E 3.0 Memory Type
- GDDR5 Direct X
- 11.1 Open GL
- 4.3 PCB Form
- ATX Digital max resolution
- 4096 X 2160 (via a single HDMI connector & not supported with two DVI connectors) Analog max resolution
- 2048 x 1536 Multi-view
- 4 I/O
- DVI-I*1, DVI-D*1, Display Port*1, HDMI*1 Card size
- L=292mm, W=129mm, H=43mm Power requirement
- 600W (with two 8-pin external power connectors)
















...

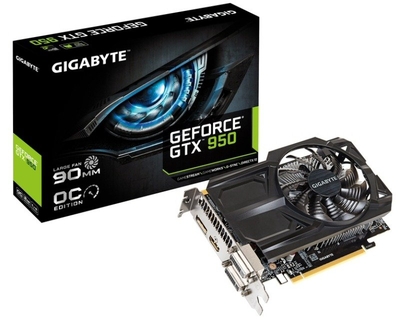

Gigabyte GTX 950 2GB GDDR5 Dual-link DVI HDMI Display Port PCI-E Graphics Card Perfect Upgrade for Online Gaming WINDFORCE 2X Cooling System brings ultimate cooling, efficiency, & quietness. OC Edition with base clock 1102 M Hz / boost clock 1279 M Hz (Std: 1026/1190) 2GB GDDR5 memory & 128-bit memory interface Ultra Durable 2 technology delivers lower temperature & longer system lifespan 4-Phase GPU power design (reference: 3) OC GURU II -- Br&-new intuitive interface helps you easily modify important settings & directly update driver & BIOS. WINDFORCE 2X Cooling System Highly acclaimed cooling solution with the unique fan design & large heat dissipation area, bringing efficient cooling in quietness WINDFORCE 2X -- Unique Blade Fan Design The air flow is split through the triangle design at the fan edge, & is guided smoothly through the fan by the special 3D stripe curve design, effectively enhancing the air flow by 23% over traditional fans, whilst reducing air turbulence. Specifications Chipset Ge Force GTX 950 Process Technology 28 nm Memory Clock 6610 MHz Memory Size 2GB Memory Bus 128-bit Memory Type GDDR5 Card Bus PCI-E 3.0 Direct X 12 Open GL 4.5 PCB Form ATX Digital max resolution 4096 X 2160 Analog max resolution 2048 x 1536 Multi-view 4 I/O Dual-link DVI-I*1/DVI-D*1/HDMI*1/ Display Port*1 Card size H=42 mm, L=208 mm, W=136 mm Power requirement 350W (with one 6-pin external power connector) ...

Gigabyte Ge Force GTX 950 2GB GDDR5 Dual-link DVI-I HDMI 3x Display Port PCI-E Graphics Card GPU Gauntlet Sorting Forged with only the top-notch GPU, the Gigabyte XTREME GAMING graphics cards guarantee the higher overclocking capability in terms of excellent power switching, ensuring the highest performance without compromising system reliability. WINDFORCE 2X cooling system Equipped with high performance pure copper heat-pipes which direct touch the GPU can strengthen the speed of heat dissipation. Besides, the air flow is effectively enhanced by the unique blade fan design, this not only increase the cooling capacity while reducing air turbulence but also results a lower noise level. Unique Blade Fan Design The airflow is spilt through the triangle design at the fan edge, & is guided smoothly through the fan by special 3D stripe curve design. At the same time, it effectively enhanced the cooling capacity while reducing air turbulence. 3D-Active Fan with LED Indicators GIGABYTE's XTREME GAMING graphics cards are equipped with 3D-Active Fan, the industry's first 0d B semi-passive fan design introduced by GIGABYTE back in 2007. The fans will remain off when the GPU is under a set loading or temperature for low power gaming. Besides, LED fan indicators on the top of the graphics card provide an instant display of whether the fans are spinning or not. Specifications: Chipset Ge Force GTX 950 Core Clock Base/ Boost clock: 1203 / 1405 MHz (standard:1026/1190) Memory Clock 7000 MHz Process Technology 28 nm Memory Size 2 GB Memory Bus 128 bit Card Bus PCI-E 3.0 Memory Type GDDR5 Direct X 12 Open GL 4.5 PCB Form ATX Digital max resolution 4096 X 2160 Analog max resolution 2048 x 1536 Multi-view 4 I/O Dual-link DVI-I / HDMI / Display Port*3 Card size H=42 mm, L=240 mm, W=132 mm Power requirement 350W (with one 8-pin external power connector) ...

. rm-row, . rm-row * { box-sizing: content-box!important; }. rm-row {

Width: 100%; overflow: hidden; padding-top:

...

Gigabyte Ge Force GTX 960 4GB GDDR5 Dual-link DVI HDMO Display Port PCI-E Grpahics Card Powered by NVIDIA Ge Force GTX 960 GPU Integrated with industrys best 4GB GDDR5 memory 128-bit memory interface BASE: 1190 MHz / BOOST: 1253 MHz (1216/1279 MHz in OC Mode) Features Dual-link DVI-I / Dual-link DVI-D / HDMI / Display Port System power supply requirement: 400W (with one 6-pin external power connector) GIGABYTE introduces WINDFORCE, the latest cooling technology that differentiates the brand’s graphics cards from the rest. GIGABYTE understands that a fan is crucial to the graphics card, so only the fan with the most efficiency is selected for WINDFORCE. The airflow is spilt through the triangle design at the fan edge, & is guided smoothly through the fan by special 3D stripe curve design. At the same time, it effectively enhanced the cooling capacity while reducing air turbulence. Equipped with pure copper heat pipe direct touch (HDT) technology, delivering superior cooling capacity & heat transfer efficiency at an extremely low noise level. Chipset Ge Force GTX 960 Core Clock Base / Boost clock:1190 / 1253 MHz Memory Clock 7010 MHz Process Technology 28 nm Memory Size 4 GB Memory Bus 128 bit Card Bus PCI-E 3.0 Memory Type GDDR5 Direct X 12 Open GL 4.4 PCB Form ATX Digital max resolution 4096 X 2160 Analog max resolution 2048 x 1536 Multi-view 4 I/O Dual-link DVI-I / Dual-link DVI-D / HDMI / Display Port Card size H=42mm, L=181mm, W=136mm (include bracket) Power requirement 400W (with one 6-pin external power connector) ...

Gigabyte GTX 960 G1 Gaming 2GB GDDR5 Dual-Link DVI HDMI Display Port PCI-E Graphics Card G1 Gaming series Graphics Card G1 Gaming Graphics Cards are forged with only the top-notch GPU via the very own GPU Gauntlet & Ultra Durable VGA components to ensure highest performance without compromising system reliability. Combined with the WINDFORCE cooling system & ultra HD support via flexible multi-display innovation, gamers can immerse themselves in the most enriched gaming environment than ever before. WINDFORCE 3X --- Fan Stop with Intuitive Fan Indicators Featuring LED indicators on the top of the graphics card to provide an instant display of whether the fans are spinning or not. WINDFORCE 3X --- Unique blade fan design The air flow is split through the triangle design at the fan edge, & is guided smoothly through the fan by the special 3D stripe curve design, effectively enhancing the air flow by 23% over traditional fans, whilst reducing air turbulence. WINDFORCE 3X --- Extreme Silent & Cool With WINDFORCE 3X cooling system, the fan noise in full loading test only have 18.1d B while the reference card is 32.6d B. WINDFORCE 3X --- Extreme Silent & Cool With the WINDFORCE 3X powerful cooling design, the temperature is 17% lower than the reference cooling design in furmark full loading test. Flex Display technology GIGABYTE Flex display technology can automatically detect any connected monitors & achieve multi-display gaming up to 4 monitors at the same time by using various output groups. Users could enjoy the best gaming experience in ultra HD resolution with extended flexibility in arranging monitor configurations & making future system upgrade extremely easy. GV-N960G1 GAMING-2GD Main Features Fan Stop mode with Intuitive Fan Indicators G1 Gaming series graphics card Super over clocking by GPU Ganutlet sorting technology WINDFORCE 3X cooling system Flex Display technology Full Metal made fan cover & stylish back plate 6-Phase GPU power design (reference: 3) Ultra Durable graphics card components OC GURU II with GPU Boost 2.0 Technology

Specification GPU Ge Force GTX 960 Core Base Clock 1241 MHz (std. 1127) Core Bosst Clock 1304 MHz (std. 1178) Memory clock 7010 M Hz Memory Size 2048MB GDDR5 Bus Type PCI Express 3.0 Memory Bus 128-bit Cuda Cores 1024 Memory type GDDR5 128 Mx 32 Direct X 12 OPENGL 4.4 DVI Port DVI-I /DVI-D Display Port 1.2 *3 HDMI 2.0 *1 (support 4K@60 Hz) 3D’11 P: 8364 / X: 3269 NEW 3D MARK (FS) Default: 6171, Extreme: 3296

...
