Supports one USB (Universal Serial Bus) 3.0 ports (internal) Enlarged front & top mesh design for superb ventilation Can accommodate ...

The Silent Pro M2 is the 2nd Generation of Cooler Masters successful Silent Pro M Series. It features a powerful single 12V rail capable of powering a High End PC with 8 Core CPUs & several VGAs running in SLI or X-Fire. Thanks to its skillfully crafted aluminum-copper heatsink combined with a 135mm Super Silent HDB fan it remains cool & virtually silent in typical operation. The modular cable system with flat wires helps you to create a neat & organized build with excellent airflow resulting in a cool & quiet System overall. The M2 series comes with no less than a 5 year warranty!

Features: Cool
- thanks to its Copper-Aluminum Heat Sink Quiet
- 135mm Super Silent HDB Fan Safe
- through Multiple Over Power Protections Powerful
- Single 12V Rail with 58A Smart
- Modular Flat cable system Efficient
- 80 Plus Bronze Certification* (varies per Model) Reliable
- 5 year warranty Environmental Friendly
- ERP & Ro HS Specifications: Model RS-720-SPM2 Type Intel Form Factor ATX 12V V2.3 Dimension (W / H / D) 150 x 180 x 86mm (5.9 x 7.1 x 3.4 inch) Input Voltage 90-264 Vac (Auto Range) Input Current 11
- 5.5A Input Frequency Range 47
- 63 Hz PFC Active PFC (>0.9) Power Good Signal 100-500ms Hold Up Time >17ms Efficiency 85% Typically MTBF 100, 000 Hours Protection OVP/UVP/OCP/OPP/OTP/SCP Output Capacity 720W Operation Temperature 0-40°C (Nominal Input Voltage) Regulatory TUV / CE / UL / FCC / BSMI / GOST / C-tick / KC / CCC Fan 135mm Hydraulic Dynamic Bearings Cable Connectors: Connector M/B 24 Pin Connector x 1 CPU 4+4 Pin x 1 PCI-E 6+2 Pin x 4 SATA x 9 4 Pin Peripheral x 5 4 Pin Floppy x 1











...

The Silent Pro M2 is the 2nd Generation of Cooler Masters successful Silent Pro M Series. It features a powerful single 12V rail capable of powering a High End PC with 8 Core CPUs & several VGAs running in SLI or X-Fire. Thanks to its skillfully crafted aluminum-copper heatsink combined with a 135mm Super Silent HDB fan it remains cool & virtually silent in typical operation. The modular cable system with flat wires helps you to create a neat & organized build with excellent airflow resulting in a cool & quiet System overall. The M2 series comes with no less than a 5 year warranty!

Features: Cool
- thanks to its Copper-Aluminum Heat Sink Quiet
- 135mm Super Silent HDB Fan Safe
- through Multiple Over Power Protections Powerful
- Single 12V Rail with 40A Smart
- Modular Flat cable system Efficient
- 80 Plus Bronze Certification** (varies per Model) Reliable
- 5 year warranty Environmental Friendly
- ERP & Ro HS Specifications: Model RS-850-SPM2 Type Intel Form Factor ATX 12V V2.3 Dimension (W / H / D) 150 x 180 x 86mm (5.9 x 7.1 x 3.4 inch) Input Voltage 90-264 Vac (Auto Range) Input Current 11
- 5.5A Input Frequency Range 47
- 63 Hz PFC Active PFC (>0.9) Power Good Signal 100-500ms Hold Up Time >17ms Efficiency 88% Typically MTBF 100, 000 Hours Protection OVP/UVP/OCP/OPP/OTP/SCP Output Capacity 850W Operation Temperature 0-40°C (Nominal Input Voltage) Regulatory TUV / CE / UL / FCC / BSMI / GOST / C-tick / KC / CCC Fan 135mm Hydraulic Dynamic Bearings Cable Connectors: Connector M/B 24 Pin Connector x 1 CPU 8 Pin x 2 PCI-E 8 Pin x 3 PCI-E 6+2 Pin x 3 SATA x 12 4 Pin Peripheral x 5 4 Pin Floppy x 1











...

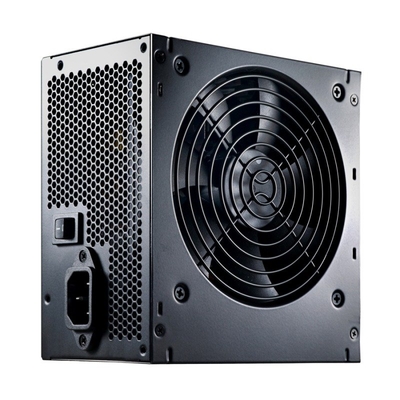

Overview The reliable, efficient & premium line of B power supplies is ideal for mainstream & basic computing systems. Built with quality components & dual +12V outputs, the B series can handle demands of high power requirements. In addition to the stable & clean power, the highly developed features incorporated include worry-free protection system & Green Power design to meet Energy Star, Blue Angel, & Er P 2010 requirements. Features Higher than 85% efficiency under typical load operation Active PFC & PWM Combo Control Silent 120mm fan with intelligent fan speed control Green power design to meet Energy Star, Blue Angel & Er P 2010 requirements Powerful +12V rail for strong resistance to any overloading Multiple built-in protection systems: OCP / OVP / OPP / OTP / SCP Series B Series Model B500 Model Number RS500-ACABM3-U1

Dimensions W x H x D) 150 x 140 x 86mm Maximum Power Output 500W PFC Active Type ATX12V v 2.3 Connectors Motherboard 20+4 1 CPU 4+4 1 PCI-E 6+2 2 SATA 6 Peripheral 4 Pin 3 Floppy 1

...

The reliable, efficient & premium line of Thunder power supplies is ideal for mainstream & basic computing systems. Built with quality components and single +12V output, the Thunder series is fit to handle demands of high power requirements. In addition to the stable & clean power, the highly developed features incorporated include worry-free protection design & reach Green power design to meet Energy Star & Blue Angel requirements. Single 12 V Power Rail Tackling challenges from the most power-intensive peripherals head on, solitary 12 V power rails provide ample power & strong resistance to any overloading. Double-Layer EMI Filter Dual protection from electromagnetic interference, thus restraining noise & interference for greater protection for you & your connections. Intel Compliant Intel ATX 12V v 2.3 Intelligent Fan Speed Control Speed control makes the 120 mm fan adept for any userÂ’s circumstances & need. Multiple Protection Design Over Voltage Protection (OVP), Over Power Protection (OPP), Over Current Protection (OCP), Short Circuit Protection (SCP). Massive Bulk Capacitor Producing hold times >14ms upon full loading. & More
- Multiple updated connectors for all types of interfaces (PCIe, SATA etc.)
- High reliability with an MBTF of at least 100, 000 hours of use.
- Three Year Warranty. Model RS-600-ACAB-D3 Type lntel ATX 12V V2.3 Dimension (W x L x H) 150 x 140 x 86mm 5.9 x 5.5 x 3.4 inch Input Voltage 180~264 Vac Input Current 5A@230 Vac Input Frequency Range 60~50 Hz PFC Active PFC (>0.9 typical) Power Good Signal 100 ~ 500 ms Hold Up Time >14ms Efficiency >85%@ Typical Load MTBF >100, 000 Hours Protection OVP / OCP / OPP / OTP / SCP Output Capacity 600W Operation Temperature 0~40°C Regulatory CE / GOST / C-tick / KC Fan 120mm Fan Connector MB 20+4 Pin x 1 CPU12V 4+4 Pin x 1 PCI-e 6+2 Pin x 2 SATA x 6 4 Pin Peripheral x 3 4 Pin Floppy x 1


...

When ultra-high performance coolers demand additional performance, count on Blade Master PWM fan series to increase cooling efficiency. Blade Master offers a balance of high air pressure with balanced airflow & minimal noise levels. With the Blade Master family of 120mm, 92mm, & 80mm fans, unique wave-form blades create increased pressure that exceeds competitor fans at the same airflow. The highest air pressure allows Blade Master fans to blow directly through dense performance heat sinks for extreme cooling. Well-balanced cooling performance with fan airflow, air pressure, & noise. Wide PWM fan speed range between 600
- 2000 R.P.M. Anti-vibration rubber pads around the edges to decrease noise. Distinguished blade shape for airflow improvement. Specs Model R4-BMBS-20PK-R0 Fan Dimension 120 x 120 x 25 mm Speed (R.P.M.) 600
- 2000 R.P.M. Air Flow (CFM) 21.2
- 76.8 CFM Air pressure (mm H2O) 0.40 – 3.90 mm H2O Noise Level 13 – 32 d BA Bearing Type Long Life Sleeve Fan Life Expectancy 40, 000 hours Voltage Rating 12 V Current (Ampere) 0.36A Max. Power consumption 4.32 W Max. Weight 166 g 0.37 lbs Connector 4-pin Screws 4 pcs Rubber 4 pcs Warranty 1 year


...

Having the features of a full tower in a mid tower chassis Cooler Master’s CM 690 quickly became a top-selling mid tower chassis due to its sleek design, full tower like features & exceptional value. Today, we have raised the bar again, with the new CM 690 II, which comes in regular & advanced editions. The new version enhances the original CM 690 killer features with a seductive all-black interior, added capacity, superior cooling system & user-friendly design. Full Tower Like Capacity Categorized as a mid tower chassis, the CM 690 II is the first-in-its-class to house up to 3 cards, with the advanced edition to include a bonus card retention bracket. The internal has enough space for supporting up to 2 radiators for water cooling units. Needless to say, this chassis will have no problem fitting in larger CPU coolers such as V10 & an abundance of hard drives. Superior Cooling System With the potential to be a graphics rendering machine, CM 690 II has a new oversized steel mesh, with filters provided on the front, top & underneath the chassis. It allows more free flowing air to pass in & out of the unit as well as protecting the fans from collecting dust. This is complemented by the ability to place up to 10 fans within the chassis. Not forgetting the enthusiasts, we have a top & bottom internal-mount radiator design for those extreme systems. User-friendly Design The Cooler Master quality build is also reflected in the easy-to-use features. We have enhanced the cable management with even tidier cable routing. Installing a new CPU cooler is easier now, with the newly added retaining hole & the tool-free drive bay design is now a must-have for any chassis. CM 690 II Advanced Edition Features The CM 690 II Advanced

Includes:: an external HDD dock, meaning you can now access files from a drive without an external enclosure or the need to open up the case. In addition, to keep your system future-proof, it also comes with a 1.8”/2.5” drive cage for smaller SSD drives. Advanced edition also features a revolutionary steel GPU retention bracket that can be reinforce the weight of up to three graphics cards while providing an option fan mount on the bracket, yet ensuring that heavy & long graphics cards have additional support. Features Front, top an bottom mesh including dustfilters Accommodates 120*140mm radiator on top or bottom Up top 10 casefans External SATA X-dock Front blue led fan on/off

Includes:: 1.8 & 2.5 HDD & SSD adapter Good cable management CPU retaining hole for easy maintaince 2 Year warranty Product Number RC-692A-KKN5 Available Colour Black Material Steel body / Plastic + Mesh bezel Dimension (W / H / D) 214.5 x 496 x 528.8 mm / 8.4 x 19.5 x 20.8 inch Weight 9.56kg / 21.08 lb M/B Type Micro-ATX, ATX, Mini -ITX 5.25" Drive Bay 4 (without the use of exposed 3.5" drive bay) 3.5" Drive Bay 6 hidden (4 removable), 1 exposed (converted from one 5.25" drive bay) I/O Panel USB 3.0 x 2 (internal), USB (Universal Serial Bus) 2.0 x 2, Mic x 1, Audio x 1 (supports HD/AC97 audio) Expansion Slots 7+1 Cooling System Front: 140 x 25mm blue LED fan x 1 / 1200RPM / 19d BA Rear: 120mm fan x 1 / 1200 RPM / 17d BA Top: 140 x 25mm fanx 1/1200RPM/19d BA (supports 120/140mm fan x 2) Bottom: 120mm fan x 2 (not included) Left side: 120/140mm fan x 2 (not included) Right side: 80 x 15mm x 1 (not included) HDD cage: 120mm fan x 1 (not included) Power Supply Standard ATX PS2 / EPS 12V 2.5"/3.5"- SATA HDD Drive Bay 2 (converted from one 3.5” drive bay) Maximum Compatibility VGA card length:304mm / 11.96 inch CPU cooler
Height:177mm / 6.96 inch




...

@font-face{ font-family: BNKGOTHL; src: url ('http://www.cmstorm.com/files/css/BNKGOTHL.TTF'); } tab-overview { font-family: BNKGOTHL; font-
Size:16px; } Phantom keycaps Icons & letters are printed on the side of the keycaps which gives the TK Stealth an extremely sleek, clean & stylish look, & will last virtually forever. Cherry MX switch Each CHERRY MX switch is tested & guaranteed to last at least 50 million hits.A solid steel plate supports all switches & the circuit logic for maximum durability, the best possible tactile feedback & extreme stability N-Key Rollover over USB (Universal Serial Bus) N-Key Roll Over in USB (Universal Serial Bus) mode means even the wildest key combos are registered perfectly. Multi media & win-lock shortcuts FN key combos allow you to quickly & conveniently access multimedia commands & to lock the WIN keys so you avoid accidental presses. Easy cable management Detachable braided USB (Universal Serial Bus) cable & cable routing groves at the underside of the keyboard. Easy cable management & better flexibility.
...

CM 690 II raises the bar again with practical improvements over the top-selling CM 690. The spacious mid-tower will keep enthusiasts happy with room for up to 3 vga cards, high-end CPU coolers, top or bottom mount water cooling radiator. It also features much enhanced airflow with oversized mesh & enough space for up to 10 fans. Maintenance will be a breeze with the tool-free drive bays, new cable management & CPU cooler retention hole. Features Oversized front & top mesh design for superb ventilation Accommodates 120 x 240 mm radiator inside the top & bottom Dust-control filters for all meshed areas Front blue LED fan on/off switch Rear retaining holes for water cooling kit Cable managment & CPU retaining hole for easy maintainence 2 Year warranty Available Colour
- Black Material
- Steel body / Plastic + Mesh bezel Dimension (W / H / D)
- 214.5 x 511.8 x 528.8 mm / 8.4 x 20.1 x 20.8 inches Weight
- Net Weight: 9.19kg / 20.3 lbs Gross Weight
- 11.19kg / 24.7 lbs M/B Type
- Micro
- ATX / ATX 5.25" Drive Bay
- 4 Exposed (encloses with two tool-free systems) 3.5" Drive Bay
- 6 Hidden I/O Panel
- USB (Universal Serial Bus) 2.0 x 2, e SATA x 1, MIC x 1, Audio x 1 (supports HD / AC97 audio) Expansion Slots
- 7 + 1 Cooling System Front: 120 x 25 mm Blue LED fan x 1 / 1200 RPM / 19 d BA Rear: 120 mm fan x 1 / 1200 RPM / 17 d BA Top: 120 / 140 mm fan x 2 / 1200 RPM / 19 d BA (not included) Bottom: 120 mm fan x 2 (not included) Right side: 80 x 15 mm x 1 (not included) Left side: 120 / 140 mm fan x 2 (not included) HDD cage: 120 mm fan x 1 (not included) Power Supply Standard ATX PS2 / EPS 12V (not included)










...

The Coolermaster COSMOS 2 Ultra Tower case features a streamlined design accentuated by a pair of distinctive handles like no other. The smooth, brushed aluminum touch of the side panels unlock & swing open like the doors of a luxurious race-car. Hidden behind the front slide cover lies a stack of hot-swappable drive bays. The black interiors provide enough space for oversized XL-ATX System Boards equipped with 4 double width graphics accelerators. A second slide cover on top hides the Advanced Control Panel to manage up to 10 fans & their respective LED lights. The combination of its elegant looks, numerous expansion options & features make the Coolermaster COSMOS 2 a “ Dream Case”. Features Stylish & streamlined race-car inspired design Brushed aluminum & steel for strength & elegance Airflow optimized design Supports up to 10 fans & 13 HDDs (2 from X-dock) Supports 4 Way SLI/CF Supports XL-ATX / SSI CEB / SSI EEB boards Advanced Control Panel: 4 channel fan speed control I/O (USB 3.0 x 2, USB (Universal Serial Bus) 2.0 x 4, e-SATA, Fan LED on/off switch) Specifications Case type Coolermaster Cosmos 2 Available Colour Midnight Black Material Exterior: Aluminum, Mesh, Synthetics; Interior: Steel-Alloy, Synthetics, Rubber Dimension (W / H / D) 344 (W) x 704 (H) x 664 (D)mm / 13.5 x 27.7 x 26.1 inch Weight 22kg / 48.5 lb M/B Type Micro-ATX, ATX, E-ATX, XL-ATX, SSI CEB, SSI EEB 5.25" Drive Bay 3 3.5" Drive Bay 13 (2 from X-dock, Middle cage for 5 HDDs, Bottom cage for 6 HDDs) 2.5" Drive Bay 11 (converted from 3.5" bay) I/O Panel USB (Universal Serial Bus) 3.0 x 2, USB (Universal Serial Bus) 2.0 x 4, e-SATA x 1, Audio In & Out Expansion Slots 10+1 Cooling System Front: 200mm LED fan x 1, 700 RPM, 19 d BA (converted from 120/140mm x 1) Top: 120mm black fan x 1, 1200 RPM, 17 d BA (converted from 200mm fan x 1/140mm fan x 2/ 120mm fa Rear: 140mm fan x 1, 1200 RPM, 19 d BA Side: 120mm fan x 2 (not included) HDD: Mid.HDD: 120x 25mm fan x 1 (not included) Bottom HDD: 120mm fan x 2, 1200 RPM, 17 d BA Power Supply ATX PS2 / EPS 12V (not included) Maximum Compatibility CPU cooler

Height: 190mm / 7.48 inch Graphics card length: 385mm / 15.15 inch

...
