The NC325m Adapter is a Quad (4) port Gigabit server adapter for c-Class Blade Servers. The NC325m Adapter has been designed & validated with Blade System customer needs in mind. in addition, it supports the following IEEE standards: 802.3, 802.3ab, 802.3ad, 802.3x, 802.3p, & 802.1Q. The PCI Express NC325m Adapter can be installed in any of the c-Class server blades' available mezzanine slots that are able to support 4 ports. The NC325m Adapter ports are not RJ45 but are four electrical connections to the Interconnect bays & the copper cabling is via a Blade System switch or a pass-thru module & not directly from the NC325m Adapter. Tested & proven to meet demanding Blade System standards with full software driver support, the NC325m ships with all the advanced server features that Pro Liant customers have come to expect, such as support for failover & load balancing, Pre-Boot Execution Environment (PXE), large send offload capability, Wake-on-LAN (WOL) & multiple VLAN tagging. Please note: server components such as memory & power supplies must match those already installed in a server. To avoid compatibility clashes or for advice, please contact us on solutions@ebuyer.com. ...

The HP NC360m is a HP Blade System c-Class network adapter providing two Gigabit Ethernet ports on a single mezzanine card. With the addition of the NC360m, HP Blade System c-Class customers now have the choice of an HP network adapter that uses either an Intel or Broadcom controller. The NC360m is designed for applications requiring additional Gigabit Ethernet ports than those provided on the server. It is ideal for virtualization, security, server consolidation, network segmentation & other Blade System applications requiring additional network port density. Tested & proven to meet demanding Blade System standards, the adapter ships with the advanced server features that Pro Liant customers have come to expect, such as support for failover & load balancing, TCP/IP checksum offloading, large send offloading, Wake-on-LAN, PXE, jumbo frames, VLAN tagging & much more. Please note: server components such as memory & power supplies must match those already installed in a server. To avoid compatibility clashes or for advice, please contact us on solutions@ebuyer.com. ...

The NC360T is a high performance PCI Express (PCIe) dual port, copper, gigabit network solution for Pro Liant customers who demand the latest in dual port Ethernet network adapter bandwidth & features. It offers two ports on a single PCI Express adapter, allowing customers to save valuable I/O slots for other uses. It is based upon the high performance Intel 82571EB chipset & offers a 4 lane (x 4) PCI Express bus. Unique customer benefits & differentiators are: flexibility to order & install (It has both standard & low profile capability.); &, usable in Ethernet or Fast Ethernet legacy twisted pair environments to preserve legacy infrastructure investments. Please note: server components such as memory & power supplies must match those already installed in a server. To avoid compatibility clashes or for advice, please contact us on solutions@ebuyer.com. ...

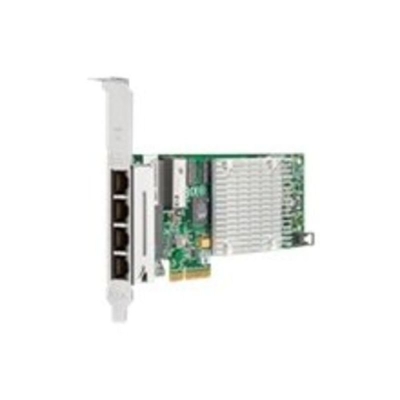

The HP NC364T PCI Express Quad-Port Gigabit Server Adapter features four 10/100/1000T Gigabit Ethernet ports on a single card, saving valuable server I/O slots for other purposes. The four ports provide the highest port density available for Pro Liant servers in a single PCI Express network adapter. The NC364T is ideal for virtualization, security, server consolidation, network segmentation, & other Pro Liant server applications requiring maximum throughput & port density. The total aggregate throughput of 4 Gbps meets the needs for customers desiring high bandwidth but not yet ready to move to 10 Gigabit Ethernet. The NC364T is a low-profile card. The x 4 PCI Express interface is compatible with x 4, x 8, & x 16 PCI slots. Please note: server components such as memory & power supplies must match those already installed in a server. To avoid compatibility clashes or for advice, please contact us on solutions@ebuyer.com. ...

The HP NC373T is a high performance PCI Express Gigabit Ethernet multifunction network adapter suitable for either standard or low profile slots in Pro Liant servers running in a twisted pair (copper) network environment. In addition to delivering standard Gigabit Ethernet networking, the NC373T supports TOE (TCP/IP Offload Engine), for Windows only, Internet Small Computer System Interface (i SCSI), & RDMA (Remote Direct Memory Access) over a single network connection making it a multifunction Ethernet server adapter. Besides its multifunction capabilities, the NC373T ships with all the advanced server features that Pro Liant customers have come to expect, such as support for failover & load balancing, Pre-Boot Execution Environment (PXE), large send offload capability, multiple VLAN tagging, & auto-negotiated 10/100/1000 Mbps Ethernet speeds. Device Type Network adapter Interface (Bus) Type PCI Express x 4 PCI

Specification Revision PCI-X 1.0a

Dimensions (Wx Dx H) 6.6 in x 2.5 in Cabling Type Ethernet 10 Base-T, Ethernet 100 Base-TX, Ethernet 1000 Base-T Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet Data Transfer Rate 1 Gbps Network / Transport Protocol TCP/IP, i SCSI Processor 1 x BCM5708
- Broadcom RAM 92 KB Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3p System Requirements Microsoft Windows Server 2003 Enterprise Edition, Microsoft Windows Server 2003 Standard Edition, Red Hat Enterprise Linux 3, Su SE Linux Enterprise Server 9 for x 86/AMD64/ Intel EM64T, Microsoft Windows Server 2003 Standard x 64 Edition, Red Hat Enterprise Linux 4, Microsoft Windows Server 2003 Enterprise x 64 Edition




...

The HP NC382m is a multifunction adapter that combines standard Gigabit Ethernet networking, TCP/IP offload engine (TOE) accelerations for Microsoft Windows, & i SCSI boot into a single mezzanine card. This x 4 PCI Express dual-port adapter is supported on all HP Blade System Pro Liant c-Class servers in all mezzanine slots. Multiple adapters can be installed per server. In addition to its multifunction capabilities, the NC382m adapter ships with advanced server features that Pro Liant customers have come to expect, such as support for failover & load balancing, TCP/IP checksum offloading, large send offloading, PXE, jumbo frames, VLAN tagging, Qo S, & much more. Please note: networking components such as switches, routers, UPS & wireless devices require that speeds & standards be consistent throughout the network to gain optimum performance. To avoid compatibility clashes or for advice, please contact us on solutions@ebuyer.com. ...

HP NC382T is a high performance PCI Express (PCIe) Dual Port, copper, Multifunction Gigabit Server Adapter for the discerning Pro Liant customer used to optimum performance. Please note: networking components such as switches, routers, UPS & wireless devices require that speeds & standards be consistent throughout the network to gain optimum performance. To avoid compatibility clashes or for advice, please contact us on solutions@ebuyer.com. ...

The NC522SFP is an eight lane (x 8) PCI Express (PCIe) 10 Gigabit network solution offering the highest bandwidth available in a Pro Liant Ethernet adapter. This PCI Express Gen 2 adapter ships with two SFP+ (Small Form-factor Pluggable) cages suitable for connecting to Direct Attach Cable (DAC) or fiber modules supporting SR, LR, & LRM fiber optic cabling. The NC522SFP allows customers both flexibility & the ability to provision their Pro Liant servers with bandwidth for every need. The NC522SFP ships with advanced server features that Pro Liant customers have come to expect, such as support for TCP checksum & segmentation (LSO) offload capability, VLAN tagging, jumbo frames, IPv 6, & more. Flexible to order & install, the NC522SFP can be used in either standard or low profile slots. ...

The NC532m is a 10 Gigabit Ethernet network adapter for the Pro Liant c-Class Blade System. The adapter is a dual port 10 Gb E mezzanine, that when paired with the 10 Gb virtual connect module provides up to eight physical function NICs that can be configured to operate at any speed from 100 Mbs to 10 Gbs. The NC532m also offers the highest throughput available in a Pro Liant Ethernet c-Class adapter when operating in straight 10 Gb mode. The adapter ships with support for VLAN tagging, Qo S, 9K jumbo frames, teaming (bonding), Receive Side Scaling (RSS), PXE. The NC532m adapter is supported in Pro Liant c-class server Type I & II mezzanine slots allowing customers to provision their servers with unprecedented bandwidth never before available in a blade. Please note: server components such as memory & power supplies must match those already installed in a server. To avoid compatibility clashes or for advice, please contact us on solutions@ebuyer.com. ...

The NC550SFP is an eight lane (x 8) PCI Express (PCIe) 10 Gigabit network solution offering optimal throughput for a Pro Liant Ethernet adapter. This PCI Express Gen 2 adapter ships with two SFP+ (Small Form-factor Pluggable) cages suitable for connecting to Direct Attach Cable (DAC) or fiber modules supporting SR fiber optic cabling. The NC550SFP ships with advanced server features that Pro Liant customers have come to expect, such as support for TCP checksum & segmentation, Large Send & Large Receive offload capability, SR-IOV, VLAN tagging, 9K jumbo frames, IPv 4 & IPv 6, teaming for failover & load balancing, & TCP/IP Offload for Windows. Easy to install & configure, the NC550SFP can be used in either standard or low profile slots. Please note: server components such as memory & power supplies must match those already installed in a server. To avoid compatibility clashes or for advice, please contact us on solutions@ebuyer.com. ...
