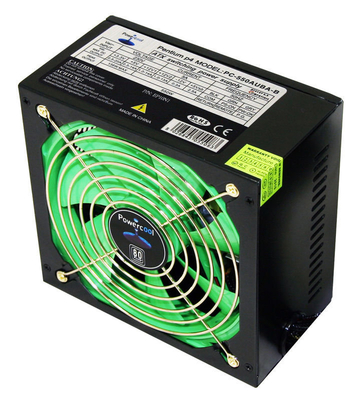

PowerCool 550W Fully Wired Power Supply

Product Description

High Efficiency
- 80 Plus Certified ATi Crossfire & n Vidia SLi Ready Low noise cooling fan system Intel Form Factor ATX 12V V2.31 Advanced Thermal & Acoustic Design EZ Connector System Multi-GPU support: independent double +12V rails designed specially for dual graphic cards Multi-Core CPU Support: provides 8-pin 12V CPU support with stable voltage AMD support: supports the newest Athlon 64 CPU by AMD Active PFC: enhances utilization of energy Ventilation: 1 x 12cm fan Full range: AC full range input Over Temperature Protection Short Circuit Protection Over Voltage Protection 20+4 pin: compatible with all motherboards available on the market Input Range: 230 Vac Voltage, 5A Current, 50 Hz Frequency

Dimensions: 150 mm x 157 mm x 86 mm (W x D x H) Retail Box

Dimensions: 303 mm x 126 mm x 203 mm (W x D x H) MTBF: 100k hours AC INPUT: 230 VAC 6A 50-60 Hz DC +3.3V +5V +12V1 +12V2 -12V +5VSB Output 20A 14A 14A 13A 0A 2A Max 550W 20+4 Pin Main Connectors: 1 4+4 Pin 12V Connectors:1 SATA Connectors:4 4-Pin Molex Connectors:4 6+2 Pin PCI-e Connectors:2 Floppy Drive Connectors:1 Dimensions: 150mm x 85mm x 180mm (W x H x D) Input Voltage: 230 VAC Input Current: 6A Input Frequency Range: 50-60 Hz PFC: Active PFC Power Good Signal: 150-450 ms Hold Up Time: 1ms-40ms Efficiency: 75% MTBF: 100, 000 Hours Protection: OVP / UVP/ OPP Power: 550W Operation Temperature: 45°C Safety: CE / RHOS Cooling: 12cm Fan Noise: < 17 d BA Certification: n Vidia SLi Certified ATi Crossfire Certified
