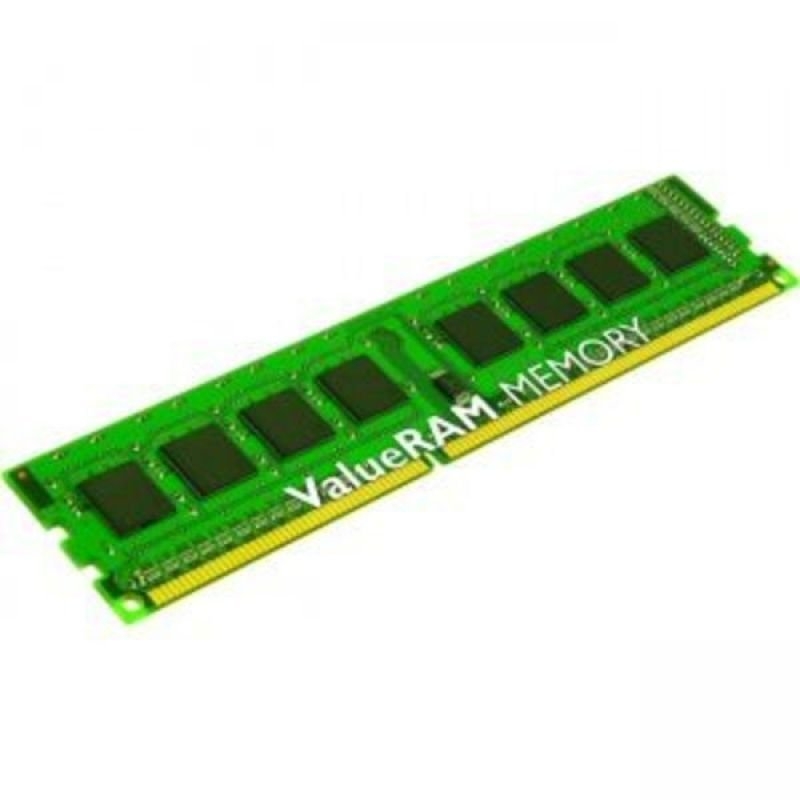

Value RAM is Kingstons value-priced line of industry-standard, generic memory intended for customers who have white box or generic computer systems, or who plan to purchase memory by
Specification. Value RAM is designed to industry specifications tested, is 100% tested & is available at competitively low prices. Features JEDEC standard 1.5V (1.425V ~1.575V) Power Supply VDDQ = 1.5V (1.425V ~ 1.575V) 667 M Hz f CK for 1333 Mb/sec/pin 8 independent internal bank Programmable CAS Latency: 9, 8, 7, 6 Programmable Additive Latency: 0, CL
- 2, or CL
- 1 clock Programmable CAS Write Latency (CWL) = 7 (DDR3-1333) 8-bit pre-fetch Burst Length: 8 (Interleave without any limit, sequential with starting address “000” only), 4 with t CCD = 4 which does not allow seamless read or write [either on the fly using A12 or MRS] Bi-directional Differential Data Strobe Internal (self) calibration: Internal self calibration through ZQ pin (RZQ: 240 ohm ± 1%) On Die Termination using ODT pin Average Refresh Period 7.8us at lower than TCASE 85°C, 3.9us at 85°C < TCASE < 95°C Asynchronous Reset PCB
Height: 1.18” (30mm), double sided component Technical
Specification CL (IDD) 9 cycles Row Cycle Time (t R Cmin) 49.5ns (min.) Refresh to Active/ Refresh 160ns (min.) Command Time (t RFCmin) Row Active Time (t RASmin) 36ns (min.) Maximum Operating Power 2.400 W UL Rating 94 V
- 0 Operating Temperature 0oC to 85oC Storage Temperature -55oC to +100oC
