Simple to install, silent operation, powerful performance & easy expandability define the Kelvin Series. The silent high-performance ceramic pump is strong enough to support considerable expansion, should you decide to include GPU blocks and/or additional radiators in the same loop. The Kelvin Series water cooling systems are constructed from enthusiast class components. Both the CPU block & the radiator are made from pure copper, for maximum performance & an increased product life span with zero maintenance required. All modern CPU sockets are supported by the versatile, easy-to-use mounting kit. Key features Fantastic cooling performance The strong pump & the full-copper construction places the Kelvin Series Water Cooling system ahead of the pack in cooling performance. Expandable system. Just open it up to get the full benefits of custom water cooling, with the ability to add any components you want to the loop, such as a graphics card cooler. High pressure pump allows strong water flow rates even when an additional CPU or GPU water block or an additional radiator has been added to the loop. All parts have fully standard G 1/4" thread fittings for compatibility with the vast majority of enthusiast water cooling products. The tubes are fastened with two-part brass fittings, providing a secure seal while being easy to open & re-seal with a standard wrench. Easy refilling with dedicated fill port Made with enthusiast-grade components developed in cooperation with Alphacool Highly reliable ceramic bearing pump, with custom tuned maximum RPM for the optimal balance between performance & noise level Full copper radiator Full copper CPU Water block design featuring strategic jet plate improvements Triple fan radiator, a 30mm thick 360, providing a much larger area than nearly all other pre-filled water cooling units. Long lifetime. The performance of most pre-filled water cooling systems degrade quite significantly over time, because of galvanic corrosion & water loss. Galvanic corrosion occurs over time when two metals with different galvanic potential (such as aluminum & copper) are in contact. It can be slowed with anti-corrosion additives in the water, but the best way to maintain performance over time is to use metals with similar galvanic potential. The Kelvin Series water cooling system is constructed with pure copper in both the radiator & the water block, along with brass fittings. To avoid the common issue of most pre-filled water cooling units (that tend to lose performance over time due to water loss in the tubes), Fractal Design equipped the Kelvin series with a fill dedicated port. General Specifications Block/pump assembly measurements: 69*69*40 mm Tubing Measurements: 320mm long, 11mm outer & 8mm inner diameter Fitted with anti-kink coils for worry-free installation Kelvin S36 Radiator Measurements: 30*124*397mm Thread class for fill port & all tube fittings: G 1/4" Supported sockets: Intel: 775, 1150, 1155, 1156, 1366, 2011; AMD: AM2, AM2+, AM3, AM3+, FM1, FM2, FM2+ Fans included: 3 pcs Fractal Design Zero™ Thermal Paste ; 1 g syringe, sufficient for multiple mountings Colors Available: Black Net weight
- Base unit only, not including mounting or fans: 1.4kg Net weight
- SS-HP fan, per fan: 165 g Net weight
- Total excluding packaging & manual.

Includes:: fans, mounting kit for all platforms, cooling paste (including packaging for the cooling paste) & adapter cable: 2.2kg Package

Dimensions
- W x H x D: 350*250*151 mm Package weight: 3.0kg Fan Specifications Fractal Design Silent Series HP 120 mm 800
- 1700 RPM PWM control Max air flow: 62.4 CFM Max pressure: 2.33 mm H2O Acoustical noise: 26.9 d B (A) DC 12V, 0.18A Pump Specifications Ceramic bearing 2400 RPM Voltage control Maximum water flow: 72 l/h Maximum pressure: 1.0 m H2O Acoustical noise: 25.0 d B (A) DC 12V, 0.27A Package contents Fractal Design Kelvin S36 pre-assembled Water Cooling Unit 3 Fractal Design Silent Series HP PWM controlled fans Intel 775, 1150, 1155, 1156, 1366 mounting hardware (including back plate) Intel 2011 mounting hardware AMD AM2, AM2+, AM3, AM3+, FM1, FM2, FM2+ mounting hardware PWM splitter cable Fractal Design Zero™ Thermal Paste, 1g Syringe Long & short radiator mounting screws User manual








...

Fractal Design Newton R3 Series power supply units (PSUs) provide clean power efficiently & silently. The Newton R3 is the ultimate choice for demanding high-end gaming computers & ultra-quiet media PCs. The visual appearance of Newton R3 Series PSUs is proof of Fractal Design's commitment to providing innovative computer components infused with stylish, elegant, contemporary Scandinavian design. The key features 80PLUS Platinum Single, powerful 12V rail SLI (800W & up) & Cross Fire X Certified Long-life ball-bearing fan Modular cables Japanese capacitors Semi-passive fan 80 PLUS Platinum certified efficiency Newton R3 Series PSUs meet the highest efficiency specifications currently available for consumer-grade power supplies. This efficiency produces both positive environmental impact, as well as reduces electricity bills. in addition, because the Newton R3 Series PSUs generate less heat, they provide power at lower fan speeds, which results in reduced noise levels. Excellent electrical performance Newton R3 Series PSUs feature excellent DC voltage regulation & ripple suppression; they can deliver their full-rated wattage continuously even with an intake temperature as high as 50°C. SLI & Cross Fire X support Newton R3 Series PSUs are tested & certified compatible with the latest graphics cards. Modular Cables With the exception of a few, all cables on the Newton series power supplies can be detached from the PSU unit. This reduces the clutter, assists with a clean installation & improves the airflow in the computer case. Compliant with the latest standards Newton R3 PSUs are compliant with the latest PSU standards: ATX12V 2.31 & EPS12V2.92. Semi-passive Fan Operation Newton R3 Series PSUs generate very little heat, they work well without active cooling in most environmental & loading conditions, especially in a well-ventilated case. Subsequently, Newton R3 Series PSUs are equipped with temperature sensors that only start the fan when required to keep the operating temperature down. Single powerful 12V rail To provide maximum support for modern components, Newton R3 Series PSUs deliver their full wattage from a single 12V rail. Extra-long ATX12V cable Newton R3 Series PSUs are equipped with a 700mm long 12V ("P4") connector cable, which accommodates bottom-mounted-PSU computer cases. Long-life Ball-bearing Fan Newton R3 Series PSUs are equipped with ball-bearing fans, which provide the longest expected fan life available on the market. Premium Japanese capacitors Newton R3 Series PSUs are equipped with 100% high-end Japanese industrial capacitors for maximum reliability & longer life. General specifications Wattage range
- 600-1000W 80PLUS Certification
- Platinum Modular cables
- Yes Fan type
- 135mm ball-bearing Maximum operating temperature at full load
- 50°C Semi-passive operation
- Yes Capacitors
- Japanese Case

Dimensions
- W x H x D (mm)
- 150 x 86 x 165 Life expectancy (MTBF)
- 100, 000 hours at full load PSU

Specification compliance
- ATX 2.31 & EPS 2.92 Package

Dimensions
- W x H x D (mm)
- 445 x 235 x 145 Warranty
- 5 Years



















...

80 PLUS Platinum certified efficiency Newton R3 Series PSUs meet the highest efficiency specifications currently available for consumer-grade power supplies. This efficiency produces both positive environmental impact, as well as reduces electricity bills. in addition, because the Newton R3 Series PSUs generate less heat, they provide power at lower fan speeds, which results in reduced noise levels. Excellent electrical performance Newton R3 Series PSUs feature excellent DC voltage regulation & ripple suppression; they can deliver their full-rated wattage continuously even with an intake temperature as high as 50°C. SLI & Cross Fire X support Newton R3 Series PSUs are tested & certified compatible with the latest graphics cards. Modular Cables With the exception of a few, all cables on the Newton series power supplies can be detached from the PSU unit. This reduces the clutter, assists with a clean installation & improves the airflow in the computer case. Newton R3 PSUs are compliant with the latest PSU standards: ATX12V 2.31 & EPS12V2.92. Semi-passive Fan Operation Newton R3 Series PSUs generate very little heat, they work well without active cooling in most environmental & loading conditions, especially in a well-ventilated case. Subsequently, Newton R3 Series PSUs are equipped with temperature sensors that only start the fan when required to keep the operating temperature down. Single powerful 12V rail To provide maximum support for modern components, Newton R3 Series PSUs deliver their full wattage from a single 12V rail. Extra-long ATX12V cable Newton R3 Series PSUs are equipped with a 700mm long 12V ("P4") connector cable, which accommodates bottom-mounted-PSU computer cases. Newton R3 Series PSUs are equipped with ball-bearing fans, which provide the longest expected fan life available on the market. Newton R3 Series PSUs are equipped with premium Japanese capacitors for maximum reliability & durability. ...

Fractal Design Newton R3 Series power supply units (PSUs) provide clean power efficiently & silently. The Newton R3 is the ultimate choice for demanding high-end gaming computers & ultra-quiet media PCs. The visual appearance of Newton R3 Series PSUs is proof of Fractal Design's commitment to providing innovative computer components infused with stylish, elegant, contemporary Scandinavian design. The key features 80PLUS Platinum Single, powerful 12V rail SLI (800W & up) & Cross Fire X Certified Long-life ball-bearing fan Modular cables Japanese capacitors Semi-passive fan 80 PLUS Platinum certified efficiency Newton R3 Series PSUs meet the highest efficiency specifications currently available for consumer-grade power supplies. This efficiency produces both positive environmental impact, as well as reduces electricity bills. in addition, because the Newton R3 Series PSUs generate less heat, they provide power at lower fan speeds, which results in reduced noise levels. Excellent electrical performance Newton R3 Series PSUs feature excellent DC voltage regulation & ripple suppression; they can deliver their full-rated wattage continuously even with an intake temperature as high as 50°C. SLI & Cross Fire X support Newton R3 Series PSUs are tested & certified compatible with the latest graphics cards. Modular Cables With the exception of a few, all cables on the Newton series power supplies can be detached from the PSU unit. This reduces the clutter, assists with a clean installation & improves the airflow in the computer case. Compliant with the latest standards Newton R3 PSUs are compliant with the latest PSU standards: ATX12V 2.31 & EPS12V2.92. Semi-passive Fan Operation Newton R3 Series PSUs generate very little heat, they work well without active cooling in most environmental & loading conditions, especially in a well-ventilated case. Subsequently, Newton R3 Series PSUs are equipped with temperature sensors that only start the fan when required to keep the operating temperature down. Single powerful 12V rail To provide maximum support for modern components, Newton R3 Series PSUs deliver their full wattage from a single 12V rail. Extra-long ATX12V cable Newton R3 Series PSUs are equipped with a 700mm long 12V ("P4") connector cable, which accommodates bottom-mounted-PSU computer cases. Long-life Ball-bearing Fan Newton R3 Series PSUs are equipped with ball-bearing fans, which provide the longest expected fan life available on the market. Premium Japanese capacitors Newton R3 Series PSUs are equipped with 100% high-end Japanese industrial capacitors for maximum reliability & longer life. General specifications Wattage range
- 600-1000W 80PLUS Certification
- Platinum Modular cables
- Yes Fan type
- 135mm ball-bearing Maximum operating temperature at full load
- 50°C Semi-passive operation
- Yes Capacitors
- Japanese Case

Dimensions
- W x H x D (mm)
- 150 x 86 x 165 Life expectancy (MTBF)
- 100, 000 hours at full load PSU

Specification compliance
- ATX 2.31 & EPS 2.92 Package

Dimensions
- W x H x D (mm)
- 445 x 235 x 145 Warranty
- 5 Years



















...

Fractal Design Newton R3 Series power supply units (PSUs) provide clean power efficiently & silently. The Newton R3 is the ultimate choice for demanding high-end gaming computers & ultra-quiet media PCs. The visual appearance of Newton R3 Series PSUs is proof of Fractal Design's commitment to providing innovative computer components infused with stylish, elegant, contemporary Scandinavian design. The key features 80PLUS Platinum Single, powerful 12V rail SLI (800W & up) & Cross Fire X Certified Long-life ball-bearing fan Modular cables Japanese capacitors Semi-passive fan 80 PLUS Platinum certified efficiency Newton R3 Series PSUs meet the highest efficiency specifications currently available for consumer-grade power supplies. This efficiency produces both positive environmental impact, as well as reduces electricity bills. in addition, because the Newton R3 Series PSUs generate less heat, they provide power at lower fan speeds, which results in reduced noise levels. Excellent electrical performance Newton R3 Series PSUs feature excellent DC voltage regulation & ripple suppression; they can deliver their full-rated wattage continuously even with an intake temperature as high as 50°C. SLI & Cross Fire X support Newton R3 Series PSUs are tested & certified compatible with the latest graphics cards. Modular Cables With the exception of a few, all cables on the Newton series power supplies can be detached from the PSU unit. This reduces the clutter, assists with a clean installation & improves the airflow in the computer case. Compliant with the latest standards Newton R3 PSUs are compliant with the latest PSU standards: ATX12V 2.31 & EPS12V2.92. Semi-passive Fan Operation Newton R3 Series PSUs generate very little heat, they work well without active cooling in most environmental & loading conditions, especially in a well-ventilated case. Subsequently, Newton R3 Series PSUs are equipped with temperature sensors that only start the fan when required to keep the operating temperature down. Single powerful 12V rail To provide maximum support for modern components, Newton R3 Series PSUs deliver their full wattage from a single 12V rail. Extra-long ATX12V cable Newton R3 Series PSUs are equipped with a 700mm long 12V ("P4") connector cable, which accommodates bottom-mounted-PSU computer cases. Long-life Ball-bearing Fan Newton R3 Series PSUs are equipped with ball-bearing fans, which provide the longest expected fan life available on the market. Premium Japanese capacitors Newton R3 Series PSUs are equipped with 100% high-end Japanese industrial capacitors for maximum reliability & longer life. General specifications Wattage range
- 600-1000W 80PLUS Certification
- Platinum Modular cables
- Yes Fan type
- 135mm ball-bearing Maximum operating temperature at full load
- 50°C Semi-passive operation
- Yes Capacitors
- Japanese Case

Dimensions
- W x H x D (mm)
- 150 x 86 x 165 Life expectancy (MTBF)
- 100, 000 hours at full load PSU

Specification compliance
- ATX 2.31 & EPS 2.92 Package

Dimensions
- W x H x D (mm)
- 445 x 235 x 145 Warranty
- 5 Years



















...

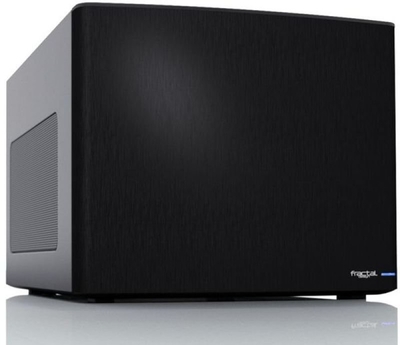

The Node 304 features a unique modular interior for outstanding configurability. The Node 304 accommodates up to six hard drives. Unused mounting brackets can be removed to allow for long graphic cards, additional airflow or more space for organizing cables. in addition, it is equipped with three hydraulic bearing fans, easy-to-clean air filters in all intakes & two front USB (Universal Serial Bus) 3.0 ports. Featuring hybrid functionality, the Node 304 case is ideally used as a cool-running file server, a stylish & quiet home theatre PC or a powerful gaming system highlighting minimalistic & stunning Scandinavian design & maximum functionality. Key features Compact, modular interior Minimalistic design with an elegant aluminum front panel Unique new modular mounting system that accommodates up to 6 hard drives Accommodates tower CPU coolers & single-fan water cooling systems Filtered air intakes ensure a dust-free environment for internal components Three Silent Series R2 hydraulic bearing fans included Excellent cooling for all components Accommodates ATX power supplies Fan controller for all fans included USB (Universal Serial Bus) 3.0 for fast file transfers Specifications Mini ITX, DTX motherboard compatibility 2 expansion slots 6 “ supports either 3.5" or 2.5" HDD / SSD ATX PSUs, up to 160mm in length (To fit in combination with a long graphics card, PSUs with modular connectors on the back typically need to be shorter than 160 mm) Graphics cards, up to 310mm in length, when 2 HDD slots (1 HDD hanging bracket total) are removed (Graphics cards longer than 170 mm will conflict with PSUs longer than 160mm) Tower CPU coolers, up to 165 mm tall Case

Dimensions (W x H x D): 250 x 210 x 374 mm Case

Volume: 19.5 Liters Net weight: 4.9kg Colors available: Black & White Cooling system 2
- Front mounted 92mm Silent Series R2 hydraulic bearing fans, 1300 RPM speed (compatible with 80mm fans) “ included 1
- Rear mounted 140mm Silent Series R2 hydraulic bearing fan, 1000 RPM speed (compatible with 120mm fans) “ included Removable air filters for front fans & PSU Fan filter for graphics card 1
- fan controller for all 3 fans included Front interface 2
- USB (Universal Serial Bus) 3.0 (Internal 3.0 to 2.0 adapter included) 1
- 3.5mm audio in (microphone) 1
- 3.5mm audio out (headphone) Power button with LED HDD LED Package contents Node 304 computer case User manual Accessory box Additional information EAN/GTIN-13: 7350041081111 UPC: 817301011112 Product code: FD-CA-NODE-304-WH Available for System Integrators









...

The Node 605 highlights a minimalistic, sleek Scandinavian appeal which is designed to integrate into your home theatre equipment. Featuring a stunning exterior appearance accompanied by a modern, black interior with sound & vibration dampening materials, the Fractal Design Node 605 supports a full ATX motherboard as well as a graphics card up to 280mm in length. Cleverly hidden behind the access panel on the solid 8mm thick aluminum front panel are two USB (Universal Serial Bus) 3.0 ports, a Fire Wire port & a multi-format card reader for multiple formats. Solid aluminum front panel Supports full ATX motherboards Noise-dampening material 4 HDD/SSD slots Integrated card reader Two Silent Series R2 hydraulic bearing fans included Supports graphic cards up to 280mm in length (180mm with all hard drives in place) USB (Universal Serial Bus) 3.0 & Fire Wire front connectors Technical specifications ATX, micro ATX, Mini ITX, DTX motherboard compatibility 7 expansion slots 4
- supports either 2.5" or 3.5" HDD / SSD 1 slim-line ODD (only supported with m ATX or smaller motherboards) PSU compatibility: 180 mm (including any modular connectors) with both hard drive cages mounted or 190 mm (excluding cables & any modular connectors) with one hard drive cage mounted CPU cooler compatibility: Approx 125mm with side-mounted fans
- For coolers with top-mounted fans, Fractal Design recommends that you add at least 30 mm clearance for decent airflow Case

Dimensions (W x H x D): 445 x 164 x 349 mm (excluding front panel
- 440 x 162 x 341 mm) Net weight: 6, 0kg Cooling / ventilation 5 (3
- 120mm + 2
- 80mm) 2 – 120mm Silent Series R2 fans included Removable air filters for side fans & PSU Integrated three-channel fan controller Graphics card compatibility 180 mm with both hard drive cages mounted 255 mm with one hard drive cage mounted 290 mm in the top two ATX expansion card slots with two hard drive cages mounted 280 mm in the top four ATX expansion card slots with one hard drive cage mounted, containing one 3.5" HDD & one 2.5" SSD Front interface 2
- USB (Universal Serial Bus) 3.0 1
- Fire Wire (IEEE 1394) 1
- 3.5mm audio in (microphone) 1
- 3.5mm audio out (headphone) Power button with LED HDD LED Retail package contents Node 605 computer case User manual Accessory box










...

The Node 804 is a micro ATX chassis which focuses on cooling performance & maximum configurability, all packed in an interesting new form factor with Scandinavian elegant design. The dual chamber layout separates hot running components from the cooler ones & allows for unrestricted airflow over the motherboard, processor and graphics card. The case comes with three excellent 120mm fans but can be upgraded with several additional fans if needed. Featuring plenty of options for placing water cooling components, tall heat sinks & hard drives. The flexibility of this case really gives the users the possibility to create their optimal system build. Key features Highly effective dual chamber case layout for best possible cooling. Minimalistic design with an elegant brushed aluminum front panel Unique hard drive mounting system, fitting up to 8 x 3.5&8243;, 4 x 2.5” or up to 10 x 3.5”, 2 x 2.5&8243; drives HDD/SSD Three Fractal Design Silent Series R2 fans included with the case & space for an additional 7 fans. Excellent water cooling support with space for up to 4 radiators simultaneously. All intakes feature removable dust filters providing a dust-free interior. Featuring a window side panel to show off your set up in style. Additional space in the front to mount a slim optical bay drive & 2 x 2.5&8243; drives. Fan controller included. Five expansion slots that allows for multiple GPU setups. Specifications Micro ATX & Mini ITX motherboard compatibility 8
- 3.5&8243; HDD positions 2
- 2.5&8243; dedicated SSD unit positions 2
- Extra positions for either 3, 5&8243; or 2, 5&8243; drives 5 expansion slots 10
- Fan positions (3 x 120mm Silent Series R2 fans included) Filtered fan slots in front, top & bottom CPU coolers up to 160 mm in height PSU compatibility: ATX PSUs up to 260 mm deep Graphics card compatibility: Graphics cards up to 320mm in length. Graphics cards up to 290 mm in length may be installed if a fan is installed in the lower position in the front. Velcro strap for easy cable management Clear Window side panel included Colors available: Black Case

Dimensions (Wx Hx D): 344 x 307 x 389 mm Net weight: 6 kg Package

Dimensions (Wx Hx D): 370 x 468 x 412 mm Package weight: 7.7kg Cooling system Front: 4 Â- 120mm fans (included is one hydraulic bearing 120mm Silent Series R2 fan, 1000 RPM speed) Rear: 1
- 120/140mm fan (included is a hydraulic bearing 120mm Silent Series R2 fan, 1000 RPM speed) Rear: 1
- 120mm fan slots (included is 1 hydraulic bearing 120mm Silent Series R2 fan, 1000 RPM speed) Top: 4
- 120x 140mm fans (not included) Fan controller: 1
- Integrated fan controller for up to 3 fans (included) Water cooling compatibility Front (right chamber)
- 240 mm radiator configurations up to 60 mm thick (with fans) & 278 mm tall are allowed. Front (left chamber)
- 240 mm radiator configurations up to 60 mm thick (with fans) & 278 mm tall are allowed. Using a radiator in this position prevents the use of a fan in the top position just next to it. Top (right chamber)
- 240/280 mm radiators up to 130mm thick (with fans) may be fitted if the HDD drive bays are taken out or placed elsewhere. No limitation to thickness. Top (left chamber)
- 240 mm radiator configurations up to 130 mm thick (with fans) will fit. Radiators in this position limits the height of memory modules to 48 mm tall. Maximum radiator configuration: 1x 240mm, 1x 280mm & 2x 120mm radiators simultaneously. Front interface 2
- USB (Universal Serial Bus) 3.0 Audio in/out Power button with LED (blue) HDD activity LED (white) Package contents Node 804 computer case Accessory box User manual
















...

These fans have been specifically developed to deliver significant airflow while maintaining low noise levels. All Silent series R2 fans are equipped with high performance hydraulic bearings, increasing both fan performance & reliability. The cable on each Silent series R2 fan is fully sleeved for effortless cable routing & enhanced aesthetics. ...

These fans have been specifically developed to deliver significant airflow while maintaining low noise levels. All Silent series R2 fans are equipped with high performance hydraulic bearings, increasing both fan performance & reliability. The cable on each Silent series R2 fan is fully sleeved for effortless cable routing & enhanced aesthetics. ...
