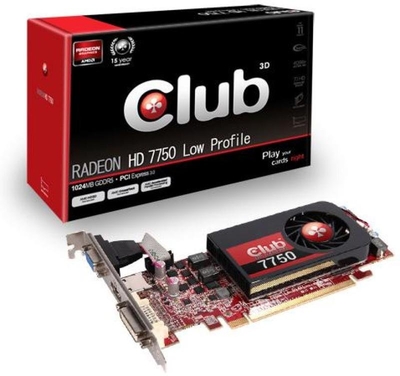

Club 3D HD 7750 1GB GDDR5 VGA DVI HDMI Display Port PCI-E Graphics Card Model: Product Name: Radeon HD 7750 Low Profile Product Series: Radeon HD 7000 Interface: Bus Interface: PCI Express 3.0 Chipset: GPU Chipset: Cape Verde Pro GPU Clock: 800 MHz Stream Processors: 512 Multi-GPU: Multi-GPU: Dual Cross Fire Ready (via software mode) Memory: Memory
Size: 1024MB Memory Interface: 128BIT Memory Type: GDDR5 Memory Clock: 4500 MHz Cooling: Cooling Type: Active Fansink TDP: Idle: 16W Idle ZCP mode enabled: 3W Maximum load: 61W 3D API: Direct X version: 11.1 Open GL version: 4.2 Open CL version: 1.2 Dimensions: Slot
Width: 1 Slot Profile: Low Profile Card
Size: 168 x 64 x 16 mm Weight: Card Weight: 158 grams Output Configuration: DVI: 1x Dual-Link DVI-D VGA: 1x FAST HDMI: 1x version 1.4a HDCP ready: YES RAMDAC: 400 M Hz Maximum Resolution VGA: 2048x 1536 Maximum Resolution Single-Link DVI: 1920x 1200 Maximum Resolution Dual-Link DVI: 2560x 1600 Maximum Resolution FAST HDMI 1.4a: 4096x 3112 Maximum Outputs simultaneously: 2 System Requirements: PCI Express 1.1 based PC or higher with one single-width X16 lane graphics slot available on the motherboard is required Minimum of 450 Watt or greater power supply Club 3D recommends CSP-S600 600 Watt Switching Power Supply Minimum 1024MB of system memory (2048MB recommended) Installation software requires CD-ROM drive (or internet connection), a keyboard, mouse & display DVD playback requires DVD drive & DVD disc Blu-ray playback requires Blu-ray drive & Blu-ray disc For an AMD Cross Fire X system, a second Club 3D Radeon HD 7750 series graphic card*, an AMD Cross Fire X Ready motherboard. * Cross Fire available in software mode Operating system support: Microsoft Windows XP 32/64-Bit, MCE * Microsoft Windows Vista 32/64-Bit Microsoft Windows 7 32/64-Bit * Eyefinity is only supported on Microsoft Windows Vista 32/64-Bit & Microsoft Windows 7 32/64-bit Operating Systems
