The C2G Select High Speed HDMI with Ethernet Cable is perfect for home theatre, desktop & commercial audio video applications requiring high speed HDMI features & video resolutions up to 1080p. The CL2 rated cable jacket is designed to meet the requirements for in-wall installations. The Ethernet capabilities of the cable allow a user to connect multiple Ethernet enabled HDMI devices through a single Ethernet connection. This cable supports bandwidth applications up to 340 M Hz/10.2 Gbps as well as high speed HDMI features; including, 3D, Deep Colour, x.v. Colour, Dolby True HD, & DTS-HD Master Audio. This fully-functional, high bandwidth cable is tested to perform at industry standards & is backed by a lifetime warranty. Connector 1: (1) HDMI Male Connector 2: (1) HDMI Male ...

Perfect for your home office or a large installation project, Enhanced Cat 5E 350 M Hz Assembled Patch Cables from Cables to Go distribute data, voice & video over today's advanced fast Ethernet & gigabit computer networks. These cables will handle bandwidth intensive applications up to 350 M Hz & beyond. ...

Bundle cables then just zip & snip for a neat organised installation Cable ties make wiring & cable installations clean & well-organised. Use them to bundle & secure wire & cable, these ties are very easy to use; simply zip & snip. With a tensile strength of 40 lbs (18 kg), these ties are strong for high quality performance. Package contains 100 cable ties. Specifications Product Description Cable to go 190mm Cable Ties
- Black
- 100pk Product Type Cable Ties Colour Black Qty 100 Length 190mm

...

Bundle cables then just zip & snip for a neat organised installation Cable ties make wiring & cable installations clean & well-organised. Use them to bundle & secure wire & cable, these ties are very easy to use; simply zip & snip. With a tensile strength of 40 lbs (18 kg), these ties are strong for high quality performance. Package contains 100 cable ties. Specifications Product Description Cable to go 300mm Cable Ties
- Black
- 100pk Product Type Cable Ties Colour Black Qty 100 Length 300mm

...

Perfect for your home office or a large installation project, enhanced CAT5E 350 M Hz snagless patch cables from Cables to Go distribute data, voice & video. These cables handle bandwidth intensive applications up to 350 M Hz & meet all CAT5E TIA/EIA standards. The molded, snag-free boot prevents unwanted cable snags during installation & provides extra strain-relief. ...

Designed for superior performance, this keystone jack is available in several colours to match housing or allow colour-coded port designation in compliance with TIA/EIA 568B 2.1 & ISO/IEC 11801 requirements.

Includes:: 110-type IDC termination with strain relief caps, & comes standard with 50 µinch gold plating on the jack contacts. Connector 1: (1) RJ-45 Female

Specification Product Type Modular insert
- CAT 6
- RJ-45 Port Qty 1 port Wiring Scheme T568B Compliant Standards ISO/ IEC 11801





...

This Booted Shielded Cat 6a patch cable is ideal to be used with 10 G Base-T ports & equipment, such as network adapters, hubs, switches, routers, DSL/cable modems & patch panels, & will protect a high speed 10 Gigabit network connection from noise & electromagnetic interference. For voice/data/video distribution, this cable will handle bandwidth-intensive applications & drastically reduces both impedance & structural return loss (SRL). Each patch cable is fully tested to meet ANSI/TIA 568 C.2 Cat 6a component requirements. Each of the individual pairs is bonded together to help maintain the twist-spacing throughout the line right up to the termination point. Constructed from high quality cable & plugs, this design minimises Near-End Crosstalk (NEXT) levels. The moulded, snagless boot prevents unwanted cable snags during installation & provides extra strain relief. Available in a variety of colours to easily color-coded a network installation. Each cable is individually labelled with the length for ease of use. ISO/IEC 11801: S/FTP (Shielded/ Foiled Twisted Pair); Overall braided Shielding, over four Foil-shielded Twisted Pairs. Connector 1: (1) RJ-45 Male Connector 2: (1) RJ-45 Male ...

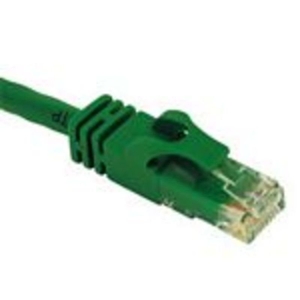

For fast Ethernet & Gigabit computer networks that require bandwidth-intensive voice, data, or video distribution applications. Meets all Cat 6 TIA/EIA standards, & drastically reduces both impedance & structural return loss (SRL). Each of the individual pairs is bonded together to help maintain the twist-spacing throughout the line right up to the termination point. Constructed from high quality copper cable, this design minimises Near-End Crosstalk (NEXT) levels. The moulded, snagless boot prevents unwanted cable snags during installation & provides extra strain relief. Available in a variety of colours to easily color-coded your network installation. Each cable is individually labelled with the length for ease of use.

Colour: Blue Warranty: Lifetime Vendor: C2G Weight: 0.020kg Length: 0.30 Meter Electrical Characteristics • Conductor DC Resistance
- 9.38& Omega;100m (maximum) • Impedance
- 100& Omega; • Capacitance
- 5600pf/100m • Propagation Delay
- 545ns/100m (maximum) • Delay Skew
- 45ns/100m (maximum) Physical Characteristics • Wiring Scheme
- T568B • Standard: Category 6 TIA/EIA-568-B-2.1, draft 9 • Connector: 50 micron gold-plated RJ45 • Temperature Rating – 60°C • Voltage Rating
- 30V • Approvals
- Ro HS Compliant • Warranty – Lifetime • Package Type – Polybag Conductor (Qty. 4 twisted pair) • Conductor Type
- 24AWG (7/0.20), Stranded Bare Copper • Insulation
- H-D PE • Diameter
- 0.98 ± 0.05mm • Colours
- Blue, Blue-White, Orange, Orange-White, Green, Green-White, Brown, Brown-White Connector Type (Qty. 2) • Connector Type
- 8P8C (RJ45) • Gender – Male • Connector Material – Polycarbonate • Contact Material
- Copper Alloy, Gold Plating
- 50µm • Hood Material
- Moulded PVC Overall Cable • Jacket – PVC • Minimum Average Thickness
- 0.60mm • Outer Diameter
- 6.20 ± 0.30mm



















...

This Booted Shielded Cat 6a patch cable is ideal to be used with 10 G Base-T ports & equipment, such as network adapters, hubs, switches, routers, DSL/cable modems & patch panels, & will protect a high speed 10 Gigabit network connection from noise & electromagnetic interference. For voice/data/video distribution, this cable will handle bandwidth-intensive applications & drastically reduces both impedance & structural return loss (SRL). Each patch cable is fully tested to meet ANSI/TIA 568 C.2 Cat 6a component requirements. Each of the individual pairs is bonded together to help maintain the twist-spacing throughout the line right up to the termination point. Constructed from high quality cable & plugs, this design minimises Near-End Crosstalk (NEXT) levels. The moulded, snagless boot prevents unwanted cable snags during installation & provides extra strain relief. Available in a variety of colours to easily color-coded a network installation. Each cable is individually labelled with the length for ease of use. Physical Characteristics • Cable type: Stranded SSTP • Wiring scheme: 568B • Temperature rating: 75°C • Testing: ANSI/TIA 568 C.2 Cat 6a component tested Conductor (4 pair) • Conductor type: 26AWG (7/0.16) (bare copper) • Insulation: FM-PE Overall cable • Foil shield: Aluminium foil (100% coverage) • Braided shield: Copper braid (40% coverage) • Jacket: PVC Connector • Connector Type: RJ-45 Male • Shell: Nickel plated for shielding • Housing: Polycarbonate, UL94V-0 • Contacts: 50µm gold plated • Hood: Moulded Snagless PVC UL94V-0 • Dimension (L x W x H): 38.2 x 11.6 x 15.1 ...

This Booted Shielded Cat 6a patch cable is ideal to be used with 10 G Base-T ports & equipment, such as network adapters, hubs, switches, routers, DSL/cable modems & patch panels, & will protect a high speed 10 Gigabit network connection from noise & electromagnetic interference. For voice/data/video distribution, this cable will handle bandwidth-intensive applications & drastically reduces both impedance & structural return loss (SRL). Each patch cable is fully tested to meet ANSI/TIA 568 C.2 Cat 6a component requirements. Each of the individual pairs is bonded together to help maintain the twist-spacing throughout the line right up to the termination point. Constructed from high quality cable & plugs, this design minimises Near-End Crosstalk (NEXT) levels. The moulded, snagless boot prevents unwanted cable snags during installation & provides extra strain relief. Available in a variety of colours to easily color-coded a network installation. Each cable is individually labelled with the length for ease of use. Physical Characteristics • Cable type: Stranded SSTP • Wiring scheme: 568B • Temperature rating: 75°C • Testing: ANSI/TIA 568 C.2 Cat 6a component tested Conductor (4 pair) • Conductor type: 26AWG (7/0.16) (bare copper) • Insulation: FM-PE Overall cable • Foil shield: Aluminium foil (100% coverage) • Braided shield: Copper braid (40% coverage) • Jacket: PVC Connector • Connector Type: RJ-45 Male • Shell: Nickel plated for shielding • Housing: Polycarbonate, UL94V-0 • Contacts: 50µm gold plated • Hood: Moulded Snagless PVC UL94V-0 • Dimension (L x W x H): 38.2 x 11.6 x 15.1 ...
