Direct CU Mini with vapor chamber offers 20% (7.5&8451;) cooler & 3X quieter performance New & advanced Cool Tech Fan drives wider airflow to keep critical components cool Direct Power ensures stable performance with 56% less impedance & a 17% cooler PCB Super Alloy Power components increase product longevity by up to 2.5X compared to reference GPU Tweak helps you modify clock speeds, voltages, fan performance & more, all via an intuitive interface Graphics Engine
- NVIDIA Ge Force GTX 760 Bus Standard
- PCI Express 3.0 Video Memory
- GDDR5 2GB Engine Clock: GPU Boost Clock: 1072 MHz GPU Base Clock: 1006 MHz CUDA Core
- 1152 Memory Clock
- 6008 MHz (1502 MHz GDDR5 ) Memory Interface
- 256-bit Resolution
- DVI Max Resolution: 2560x 1600 Interface: DVI Output: Yes x 1 (DVI-I), Yes x 1 (DVI-D) HDMI Output: Yes x 1 Display Port: Yes x 1 (Regular DP) Accessories
- 1 x Power cable Software
- ASUS GPU Tweak & Driver ASUS

Features: Direct CU Mini Series OC Series Super Alloy Power Dimensions: 6.7 " x 4.8 " x 1.6 " Inch 17.01 x 12.19 x 4.06 Centimeter NVIDIA Features NVIDIA Ge Force Experience Want to know the best settings to play your games? Ge Force Experience will figure it out for you. Ge Force Experience connects you to NVIDIA’s cloud datacenter to download optimal game settings tailored to your PC based on your CPU, GPU & monitor. Optimal settings maximize image quality while maintaining great performance so you get the best experience. A built-in interactive screenshot viewer helps you learn more about each setting & their benefits. The Ge Force Experience application automatically notifies you of new driver releases from NVIDIA. With a single click, you’ll be able to update the driver directly, without leaving your desktop. NVIDIA Kepler GPU Architecture NVIDIAs Kepler GPU architecture has been designed from the ground up not just for maximum performance in the latest Direct X 11 games, but optimal performance per watt. The new SMX streaming multiprocessor is twice as efficient as the prior generation & the new geometry engine draws triangles twice as fast. The result is world class performance & the highest image quality in an elegant & power efficient graphics card. NVIDIA TXAA Technology Film studios invest enormous resources in developing advanced technologies & post-production effects to deliver visually spectacular experiences for movie-goers. For games to achieve this level of fidelity, developers need new anti–aliasing technologies that deliver a viewing experience that eliminates the distraction of unrealistic, jagged lines (”jaggies”) & aliased shimmering–without compromising performance. NVIDIA is making this happen today, bringing cinema-quality graphics to life in blockbuster gaming titles with an innovative new temporal antialiasing technology called TXAA. Available exclusively on Ge Force GTX Kepler-powered GPUs, TXAA is designed to be directly integrated into game engines. Plus, it combines the raw power of MSAA (multi–sample anti–aliasing) with a temporal filter & sophisticated resolve filters similar to those used in CG films. The end result is a smoother, more lifelike image than any other comparable technique. NVIDIA FXAA Technology FXAA is a NVIDIA-developed post-processing technique that selectively blurs a game’s graphics to tackle unsightly jagged edges & high-contrast pixel deviation. Gaining popularity amongst developers due to its low performance impact & its ability to anti-alias transparent textures & details, FXAA is highly recommended for low-end & mid-range systems. NVIDIA GPU Boost 2.0 Technology Up until now, GPUs have operated at a fixed clock speed when playing 3D games, even if they have the potential to run faster. GPU Boost intelligently monitors graphics work load & increases the clock speed whenever possible. The result is that the GPU always performs at its peak & you get the highest framerate possible. With NVIDIA GPU Boost 2.0 Enjoy new levels of customization with advanced controls like GPU temperature target, overclocking, & overvoltage. NVIDIA Adaptive V-Sync Technology Nothing is more distracting than framerate stuttering & screen tearing. The first tends to occur when framerates are low, the second when framerates are high. Adaptive V-Sync is a smarter way to render frames. At high framerates, V-sync is enabled to eliminate tearing, at low frame rates, its disabled to minimize stuttering. It gets rid of distractions so you can get on with gaming. NVIDIA Phys X Technology Phys X is designed specifically for hardware acceleration by powerful processors with hundreds of cores. Combined with the tremendous parallel processing capability of the GPU, Phys X will provide an exponential increase in physics processing power & will take gaming to a new level delivering rich, immersive physical gaming environments. NVIDIA CUDA Technology NVIDIA CUDA technology is the world’s only C language environment that enables programmers & developers to write software to solve complex computational problems in a fraction of the time by tapping into the many-core parallel processing power of GPUs. With millions of CUDA-capable GPUs already deployed, thousands of software programmers are already using the free CUDA software tools to accelerate applications—from video & audio encoding to oil & gas exploration, product design, medical imaging, & scientific research. NVIDIA Surround with up to 4 Monitors Nothing is as breathtaking as playing your favorite games across three monitors. At 5760 x 1080, the expanded field of view fully engages human peripheral vision & provides for the most immersive experience in racing & flight simulators. Add in a fourth display to keep tabs on chat, email or web while you are gaming. NVIDIA 3D Vision NVIDIA 3D Vision brings a fully immersive, stereoscopic 3D experience to the PC. A combination of high-tech wireless glasses & advanced software, 3D Vision transforms hundreds of PC games into full stereoscopic 3D. Get up to 2x monitor & keyboard brightness with NVIDIA 3D Light Boost technology. In addition, you can enjoy 3D movies & 3D digital photographs from 3 D Vision Live.com in eye popping, crystal-clear quality. NVIDIA SLI Technology Used by the most demanding gamers worldwide, SLI lets you link up to three Ge Force GTX 780s together for astounding performance. & with NVIDIA’s track record for fast & frequent software updates, you’ll not only get the best performance in existing games, but future games too.










...

Dual Ge Force GTX 760 GPUs provide 14% faster game performance Exclusive Direct CU II with 8 heatpipes deliver 20% cooler & vastly quieter than GTX 690 Acclaimed DIGI+ VRM joins superior quality 12-phase Super Alloy Power to drive precise digital control for enhanced performance, reliability, & card longevity Japan-made black metallic capacitors 20% better temperature endurance & 5X longer lifetime usage MARS LED light pulsates in red when the card is active GPU Tweak: modify clock speeds, voltage & more via an intuitive interface Graphics Engine
- NVIDIA Ge Force GTX 760x 2 Bus Standard
- PCI Express 3.0 Video Memory
- GDDR5 4GB GPU Boost Clock: 1072 MHz GPU Base Clock: 1006 MHz CUDA Core
- 2304 Memory Clock
- 6004 MHz (1501 MHz GDDR5 ) Memory Interface
- 512-bit DVI Output: Yes x 2 (DVI-I), Yes x 1 (DVI-D) HDMI Output: Yes x 1 (via DVI to HDMI adaptor x 1 ) Display Port: Yes x 1 (Mini DP) HDCP Support: Yes

Dimensions
- 11 " x 4.38 " x 1.6 " Inch NVIDIA Features NVIDIA Ge Force Experience Want to know the best settings to play your games? Ge Force Experience will figure it out for you. Ge Force Experience connects you to NVIDIA’s cloud datacenter to download optimal game settings tailored to your PC based on your CPU, GPU & monitor. Optimal settings maximize image quality while maintaining great performance so you get the best experience. A built-in interactive screenshot viewer helps you learn more about each setting & their benefits. The Ge Force Experience application automatically notifies you of new driver releases from NVIDIA. With a single click, you’ll be able to update the driver directly, without leaving your desktop. NVIDIA Kepler GPU Architecture NVIDIAs Kepler GPU architecture has been designed from the ground up not just for maximum performance in the latest Direct X 11 games, but optimal performance per watt. The new SMX streaming multiprocessor is twice as efficient as the prior generation & the new geometry engine draws triangles twice as fast. The result is world class performance & the highest image quality in an elegant & power efficient graphics card. NVIDIA TXAA Technology Film studios invest enormous resources in developing advanced technologies & post-production effects to deliver visually spectacular experiences for movie-goers. For games to achieve this level of fidelity, developers need new anti–aliasing technologies that deliver a viewing experience that eliminates the distraction of unrealistic, jagged lines (”jaggies”) & aliased shimmering–without compromising performance. NVIDIA is making this happen today, bringing cinema-quality graphics to life in blockbuster gaming titles with an innovative new temporal antialiasing technology called TXAA. Available exclusively on Ge Force GTX Kepler-powered GPUs, TXAA is designed to be directly integrated into game engines. Plus, it combines the raw power of MSAA (multi–sample anti–aliasing) with a temporal filter & sophisticated resolve filters similar to those used in CG films. The end result is a smoother, more lifelike image than any other comparable technique. NVIDIA FXAA Technology FXAA is a NVIDIA-developed post-processing technique that selectively blurs a game’s graphics to tackle unsightly jagged edges & high-contrast pixel deviation. Gaining popularity amongst developers due to its low performance impact & its ability to anti-alias transparent textures & details, FXAA is highly recommended for low-end & mid-range systems. NVIDIA GPU Boost 2.0 Technology Up until now, GPUs have operated at a fixed clock speed when playing 3D games, even if they have the potential to run faster. GPU Boost intelligently monitors graphics work load & increases the clock speed whenever possible. The result is that the GPU always performs at its peak & you get the highest framerate possible. With NVIDIA GPU Boost 2.0 Enjoy new levels of customization with advanced controls like GPU temperature target, overclocking, & overvoltage. NVIDIA Adaptive V-Sync Technology Nothing is more distracting than framerate stuttering & screen tearing. The first tends to occur when framerates are low, the second when framerates are high. Adaptive V-Sync is a smarter way to render frames. At high framerates, V-sync is enabled to eliminate tearing, at low frame rates, its disabled to minimize stuttering. It gets rid of distractions so you can get on with gaming. NVIDIA Phys X Technology Phys X is designed specifically for hardware acceleration by powerful processors with hundreds of cores. Combined with the tremendous parallel processing capability of the GPU, Phys X will provide an exponential increase in physics processing power & will take gaming to a new level delivering rich, immersive physical gaming environments. NVIDIA CUDA Technology NVIDIA CUDA technology is the world’s only C language environment that enables programmers & developers to write software to solve complex computational problems in a fraction of the time by tapping into the many-core parallel processing power of GPUs. With millions of CUDA-capable GPUs already deployed, thousands of software programmers are already using the free CUDA software tools to accelerate applications—from video & audio encoding to oil & gas exploration, product design, medical imaging, & scientific research. NVIDIA Surround with up to 4 Monitors Nothing is as breathtaking as playing your favorite games across three monitors. At 5760 x 1080, the expanded field of view fully engages human peripheral vision & provides for the most immersive experience in racing & flight simulators. Add in a fourth display to keep tabs on chat, email or web while you are gaming. NVIDIA 3D Vision NVIDIA 3D Vision brings a fully immersive, stereoscopic 3D experience to the PC. A combination of high-tech wireless glasses & advanced software, 3D Vision transforms hundreds of PC games into full stereoscopic 3D. Get up to 2x monitor & keyboard brightness with NVIDIA 3D Light Boost technology. In addition, you can enjoy 3D movies & 3D digital photographs from 3 D Vision Live.com in eye popping, crystal-clear quality. NVIDIA SLI Technology Used by the most demanding gamers worldwide, SLI lets you link up to three Ge Force GTX 780s together for astounding performance. & with NVIDIA’s track record for fast & frequent software updates, you’ll not only get the best performance in existing games, but future games too.








...

This is the Asus Ge Force GTX 770, winner of both the VORTEZ GOLD Award & the five star player performance award. The GTX 770 Direct CU II 2GB GDDR5 HDMI DVI Display Port PCI-E Grpahics Card by Asus comes in with raised clock speeds, enhanced power delivery, overclocking & GPU Boost 2.0 making the GTX 770 a formiddable GPU. The card uses Direct CU II cooling & GPU tweak technology. The Direct CU II cooling has hightened levels of performance & lower levels of noise. Direct CU II has precision shaped SSU heatpipes which utilizes highly conductive copper & directly-centered GPU placement to double cooling efficiency in the same space. Also available on this card is DIGI+ VRM with 10-phase Super Alloy Power precise digital delivery for superior efficiency, reliability, & performance. GPU Tweak helps you modify clock speeds, voltages, fan performance & more, all via an intuitive software interface Specifications
- Graphics Engine
- Nvidia Ge Force GTX 770
- Bus Standard
- PCI Express 3.0
- Open GL
- Open GL 4.3
- Video MEmory
- 2040MB GDDR5
- GPU Boost Clock
- 1110 M Hz
- GPU Base Clock
- 1058 M Hz
- CUDA Cores
- 1536
- Memory Clock
- 7010 M Hz
- Memory Interface
- 256 bit
- DVI Output
- 1 x Native Dual-Link DVI-I; 1 x Native Dual-Link DVI-D
- HDMI Output
- 1 x Native HDMI
- HDCP Compliant
- Yes
- Display Port
- 1 x Native Display Port 1.2
-

Dimensions
- 10.7x 5.2x 1.36inches NVIDIA Features NVIDIA Ge Force Experience Want to know the best settings to play your games? Ge Force Experience will figure it out for you. Ge Force Experience connects you to NVIDIA’s cloud datacenter to download optimal game settings tailored to your PC based on your CPU, GPU & monitor. Optimal settings maximize image quality while maintaining great performance so you get the best experience. A built-in interactive screenshot viewer helps you learn more about each setting & their benefits. The Ge Force Experience application automatically notifies you of new driver releases from NVIDIA. With a single click, you’ll be able to update the driver directly, without leaving your desktop. NVIDIA Kepler GPU Architecture NVIDIAs Kepler GPU architecture has been designed from the ground up not just for maximum performance in the latest Direct X 11 games, but optimal performance per watt. The new SMX streaming multiprocessor is twice as efficient as the prior generation & the new geometry engine draws triangles twice as fast. The result is world class performance & the highest image quality in an elegant & power efficient graphics card. NVIDIA TXAA Technology Film studios invest enormous resources in developing advanced technologies & post-production effects to deliver visually spectacular experiences for movie-goers. For games to achieve this level of fidelity, developers need new anti–aliasing technologies that deliver a viewing experience that eliminates the distraction of unrealistic, jagged lines (”jaggies”) & aliased shimmering–without compromising performance. NVIDIA is making this happen today, bringing cinema-quality graphics to life in blockbuster gaming titles with an innovative new temporal antialiasing technology called TXAA. Available exclusively on Ge Force GTX Kepler-powered GPUs, TXAA is designed to be directly integrated into game engines. Plus, it combines the raw power of MSAA (multi–sample anti–aliasing) with a temporal filter & sophisticated resolve filters similar to those used in CG films. The end result is a smoother, more lifelike image than any other comparable technique. NVIDIA FXAA Technology FXAA is a NVIDIA-developed post-processing technique that selectively blurs a game’s graphics to tackle unsightly jagged edges & high-contrast pixel deviation. Gaining popularity amongst developers due to its low performance impact & its ability to anti-alias transparent textures & details, FXAA is highly recommended for low-end & mid-range systems. NVIDIA GPU Boost 2.0 Technology Up until now, GPUs have operated at a fixed clock speed when playing 3D games, even if they have the potential to run faster. GPU Boost intelligently monitors graphics work load & increases the clock speed whenever possible. The result is that the GPU always performs at its peak & you get the highest framerate possible. With NVIDIA GPU Boost 2.0 Enjoy new levels of customization with advanced controls like GPU temperature target, overclocking, & overvoltage. NVIDIA Adaptive V-Sync Technology Nothing is more distracting than framerate stuttering & screen tearing. The first tends to occur when framerates are low, the second when framerates are high. Adaptive V-Sync is a smarter way to render frames. At high framerates, V-sync is enabled to eliminate tearing, at low frame rates, its disabled to minimize stuttering. It gets rid of distractions so you can get on with gaming. NVIDIA Phys X Technology Phys X is designed specifically for hardware acceleration by powerful processors with hundreds of cores. Combined with the tremendous parallel processing capability of the GPU, Phys X will provide an exponential increase in physics processing power & will take gaming to a new level delivering rich, immersive physical gaming environments. NVIDIA CUDA Technology NVIDIA CUDA technology is the world’s only C language environment that enables programmers & developers to write software to solve complex computational problems in a fraction of the time by tapping into the many-core parallel processing power of GPUs. With millions of CUDA-capable GPUs already deployed, thousands of software programmers are already using the free CUDA software tools to accelerate applications—from video & audio encoding to oil & gas exploration, product design, medical imaging, & scientific research. NVIDIA Surround with up to 4 Monitors Nothing is as breathtaking as playing your favorite games across three monitors. At 5760 x 1080, the expanded field of view fully engages human peripheral vision & provides for the most immersive experience in racing & flight simulators. Add in a fourth display to keep tabs on chat, email or web while you are gaming. NVIDIA 3D Vision NVIDIA 3D Vision brings a fully immersive, stereoscopic 3D experience to the PC. A combination of high-tech wireless glasses & advanced software, 3D Vision transforms hundreds of PC games into full stereoscopic 3D. Get up to 2x monitor & keyboard brightness with NVIDIA 3D Light Boost technology. In addition, you can enjoy 3D movies & 3D digital photographs from 3 D Vision Live.com in eye popping, crystal-clear quality. NVIDIA SLI Technology Used by the most demanding gamers worldwide, SLI lets you link up to three Ge Force GTX 780s together for astounding performance. & with NVIDIA’s track record for fast & frequent software updates, you’ll not only get the best performance in existing games, but future games too.





























...

Asus GTX780-DC2 3GB GDDR5 Dual DVI HDMI Display Port PCI-E Graphics Card Graphics Engine NVIDIA Ge Force GTX 780 Bus Standard PCI Express 3.0 Video Memory GDDR5 3GB Engine Clock GPU Boost Clock: 902 MHz GPU Base Clock: 863 MHz CUDA Core 2304 Memory Clock 6008 MHz (1502 MHz GDDR5 ) Memory Interface 384-bit Interface DVI Output: Yes x 1 (DVI-I), Yes x 1 (DVI-D) HDMI Output: Yes x 1 Display Port: Yes x 1 (Regular DP) HDCP Support: Yes Power Consumption up to 300 Wadditional 6+8 pin PCIe power required Software ASUS GPU Tweak & Driver ASUS Features Direct CU Series Super Alloy Power

Dimensions 11.3 " x 5.8 " x 1.6 " Inch 28.7 x 14.73 x 4.06 Centimeter

...

ASUS Ge Force GTX 780 Direct CU II graphics cards feature an ASUS-designed PCB & a completely new look for the Direct CU II cooler, as well as DIGI+ VRM digital power delivery & robust Super Alloy Power components. Ge Force GTX 780 Direct CU II cards use an NVIDIA GK110-300 GPU with 2304 CUDA cores. They ship with 3GB GDDR5 video memory on a 384-bit interface. For avid PC gamers who demand ultra-high detail & readiness for resolutions beyond full HD 1080p, Ge Force GTX 780 Direct CU II cards deliver extreme cooling, stability, & endurance well above reference card standards. Graphics Engine
- NVIDIA Ge Force GTX 780 Bus Standard
- PCI Express 3.0 Video Memory
- GDDR5 3GB Engine Clock GPU Boost Clock: 941 MHz GPU Base Clock: 889 MHz CUDA Core
- 2304 Memory Clock
- 6008 MHz (1502 MHz GDDR5 ) Memory Interface
- 384-bit Interface: DVI Output: Yes x 1 (DVI-I), Yes x 1 (DVI-D) HDMI Output: Yes x 1 Display Port: Yes x 1 (Regular DP) HDCP Support: Yes Power Consumption
- up to 300 Wadditional 6+8 pin PCIe power required Software
- ASUS GPU Tweak & Driver ASUS Features Direct CU Series OC Series Super Alloy Power Dimensions: 11.3 " x 5.8 " x 1.6 " Inch 28.7 x 14.73 x 4.06 Centimeter To have the best cooling performance, ASUS GTX780-DC2OC-3GD5 extends the fansink to 2 slots. Please double check you Chassis & Motherboard dimension prior to purchase to make sure it fits in your system! Note that the actual boost clock will vary depending on actual system conditions. For more information, please visit http://www.geforce.com/ Specifications are subject to change without notice. PCB color & bundled software versions are change without notice. Brand & product names mentioned are trademarks of their respective company. The new Ge Force GTX 780 marks an evolution in gaming performance—an insanely fast, smooth, & whisper-quiet experience. It’s perfectly tuned to today’s most advanced gaming technologies with Ge Force Experience for one-click driver & setting optimisation, plus NVIDIA Phys X & TXAA for smooth, sharp graphics. With GTX 780, experience pure performance. ASUS Exclusive Features DIGI+ VRM with Super Alloy Power Acclaimed DIGI+ VRM has been applied via a 10-phase power design that uses digital voltage regulators to minimize power noise by 30%, enhance power efficiency by 15%, widen voltage modulation tolerance, & improve overall stability & longevity by 2.5 times over reference. GPU Tweak Overclocking is made real-time & intuitive with ASUS GPU Tweak utility. It not only means that you can optimize clock speeds, voltage & fan speeds on up to four graphics cards independently or simultaneously, you can also select between GPU Tweak’s Standard or Advanced modes depending on your level of experience. For gamers out there, GPU Tweak enables instantaneous in-game video recording up to 720p resolution so you can share clips with the community easily. Cool Tech Fan Proprietary Cool Tech fan consists of a hybrid blade & bearing design, with inner radial blower & outer flower-type blades. These provide multi-directional airflow to accelerate heat removal & enable highly stable graphics performance. Direct CU II Exclusive Direct CU II thermal design

Includes:: a direct-GPU contact 10mm copper heatpipe & 220% larger dissipation area to boost heat removal efficiency. It performs 30% cooler & 3X quieter than reference. NVIDIA Features NVIDIA Ge Force Experience Want to know the best settings to play your games? Ge Force Experience will figure it out for you. Ge Force Experience connects you to NVIDIA’s cloud datacenter to download optimal game settings tailored to your PC based on your CPU, GPU & monitor. Optimal settings maximize image quality while maintaining great performance so you get the best experience. A built-in interactive screenshot viewer helps you learn more about each setting & their benefits. The Ge Force Experience application automatically notifies you of new driver releases from NVIDIA. With a single click, you’ll be able to update the driver directly, without leaving your desktop. NVIDIA Kepler GPU Architecture NVIDIAs Kepler GPU architecture has been designed from the ground up not just for maximum performance in the latest Direct X 11 games, but optimal performance per watt. The new SMX streaming multiprocessor is twice as efficient as the prior generation & the new geometry engine draws triangles twice as fast. The result is world class performance & the highest image quality in an elegant & power efficient graphics card. NVIDIA TXAA Technology Film studios invest enormous resources in developing advanced technologies & post-production effects to deliver visually spectacular experiences for movie-goers. For games to achieve this level of fidelity, developers need new anti–aliasing technologies that deliver a viewing experience that eliminates the distraction of unrealistic, jagged lines (”jaggies”) & aliased shimmering–without compromising performance. NVIDIA is making this happen today, bringing cinema-quality graphics to life in blockbuster gaming titles with an innovative new temporal antialiasing technology called TXAA. Available exclusively on Ge Force GTX Kepler-powered GPUs, TXAA is designed to be directly integrated into game engines. Plus, it combines the raw power of MSAA (multi–sample anti–aliasing) with a temporal filter & sophisticated resolve filters similar to those used in CG films. The end result is a smoother, more lifelike image than any other comparable technique. NVIDIA FXAA Technology FXAA is a NVIDIA-developed post-processing technique that selectively blurs a game’s graphics to tackle unsightly jagged edges & high-contrast pixel deviation. Gaining popularity amongst developers due to its low performance impact & its ability to anti-alias transparent textures & details, FXAA is highly recommended for low-end & mid-range systems. NVIDIA G-SYNC Technology NVIDIA G-SYNC is a groundbreaking new innovation that casts aside decades-old thinking to create the smoothest, most responsive computer displays ever seen. A monitor module you can install yourself, or buy pre-installed in gamer-focused monitors, NVIDIA G-SYNC waves goodbye to the days of screen tearing, input lag, & eyestrain-inducing stuttering caused by decades-old tech lazily carried over from analog TVs to modern-day monitors. NVIDIA GPU Boost 2.0 Technology Up until now, GPUs have operated at a fixed clock speed when playing 3D games, even if they have the potential to run faster. GPU Boost intelligently monitors graphics work load & increases the clock speed whenever possible. The result is that the GPU always performs at its peak & you get the highest framerate possible. With NVIDIA GPU Boost 2.0 Enjoy new levels of customization with advanced controls like GPU temperature target, overclocking, & overvoltage. NVIDIA Adaptive V-Sync Technology Nothing is more distracting than framerate stuttering & screen tearing. The first tends to occur when framerates are low, the second when framerates are high. Adaptive V-Sync is a smarter way to render frames. At high framerates, V-sync is enabled to eliminate tearing, at low frame rates, its disabled to minimize stuttering. It gets rid of distractions so you can get on with gaming. NVIDIA Phys X Technology Phys X is designed specifically for hardware acceleration by powerful processors with hundreds of cores. Combined with the tremendous parallel processing capability of the GPU, Phys X will provide an exponential increase in physics processing power & will take gaming to a new level delivering rich, immersive physical gaming environments. NVIDIA CUDA Technology NVIDIA CUDA technology is the world’s only C language environment that enables programmers & developers to write software to solve complex computational problems in a fraction of the time by tapping into the many-core parallel processing power of GPUs. With millions of CUDA-capable GPUs already deployed, thousands of software programmers are already using the free CUDA software tools to accelerate applications—from video & audio encoding to oil & gas exploration, product design, medical imaging, & scientific research. NVIDIA Surround with up to 4 Monitors Nothing is as breathtaking as playing your favorite games across three monitors. At 5760 x 1080, the expanded field of view fully engages human peripheral vision & provides for the most immersive experience in racing & flight simulators. Add in a fourth display to keep tabs on chat, email or web while you are gaming. NVIDIA 3D Vision NVIDIA 3D Vision brings a fully immersive, stereoscopic 3D experience to the PC. A combination of high-tech wireless glasses & advanced software, 3D Vision transforms hundreds of PC games into full stereoscopic 3D. Get up to 2x monitor & keyboard brightness with NVIDIA 3D Light Boost technology. In addition, you can enjoy 3D movies & 3D digital photographs from 3 D Vision Live.com in eye popping, crystal-clear quality. NVIDIA SLI Technology Used by the most demanding gamers worldwide, SLI lets you link up to three Ge Force GTX 780s together for astounding performance. & with NVIDIA’s track record for fast & frequent software updates, you’ll not only get the best performance in existing games, but future games too.









...

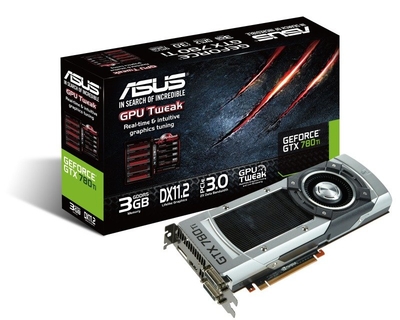

Asus Ge Force GTX 780 Ti Direct CU II OC 3GB GDDR5 Dual DVI HDMI Display Port PCI-E Graphics Card ASUS today announced GTX 780 Ti Direct CU II, a graphics card powered by the new Ge Force GTX 780 Ti graphics-processing unit (GPU) & fitted with exclusive Direct CU II technology for cooler, quieter & faster performance. The Ge Force GTX 780 Ti GPU is powered by 25% more CUDA (Compute Unified Device Architecture) cores & benefits from a boosted clock speed of 1020 MHz ” both significant increases on its predecessor that enable ASUS GTX 780 Ti to deliver astonishing gaming performance. With exclusive ASUS Direct CU II on board, GTX 780 Ti Direct CU II runs up to 20% cooler, three times (3X) quieter & 6% faster than reference cards. Graphics Engine
- NVIDIA Ge Force GTX 780 Ti Bus Standard
- PCI Express 3.0 Video Memory
- GDDR5 3GB Engine Clock GPU Boost Clock: 1020 MHz GPU Base Clock: 954 MHz CUDA Core
- 2880 Memory Clock
- 7000 MHz (GDDR5 ) Memory Interface
- 384-bit Interface DVI Output: Yes x 1 (DVI-I), Yes x 1 (DVI-D) HDMI Output: Yes x 1 Display Port: Yes x 1 (Regular DP) HDCP Support: Yes Accessories 1 x Power cable 1 x Red metal sticker kit 1 x Gold metal sticker kit Power Consumption up to 375 Wadditional 8+8 pin PCIe power required Software ASUS GPU Tweak & Driver ASUS Features Direct CU Series OC Series Super Alloy Power

Dimensions 11.3 " x 5.8 " x 1.6 " Inch







...

NVIDIA Features NVIDIA Ge Force Experience Want to know the best settings to play your games? Ge Force Experience will figure it out for you. Ge Force Experience connects you to NVIDIA’s cloud datacenter to download optimal game settings tailored to your PC based on your CPU, GPU & monitor. Optimal settings maximize image quality while maintaining great performance so you get the best experience. A built-in interactive screenshot viewer helps you learn more about each setting & their benefits. The Ge Force Experience application automatically notifies you of new driver releases from NVIDIA. With a single click, you’ll be able to update the driver directly, without leaving your desktop. NVIDIA Kepler GPU Architecture NVIDIAs Kepler GPU architecture has been designed from the ground up not just for maximum performance in the latest Direct X 11 games, but optimal performance per watt. The new SMX streaming multiprocessor is twice as efficient as the prior generation & the new geometry engine draws triangles twice as fast. The result is world class performance & the highest image quality in an elegant & power efficient graphics card. NVIDIA TXAA Technology Film studios invest enormous resources in developing advanced technologies & post-production effects to deliver visually spectacular experiences for movie-goers. For games to achieve this level of fidelity, developers need new anti–aliasing technologies that deliver a viewing experience that eliminates the distraction of unrealistic, jagged lines (”jaggies”) & aliased shimmering–without compromising performance. NVIDIA is making this happen today, bringing cinema-quality graphics to life in blockbuster gaming titles with an innovative new temporal antialiasing technology called TXAA. Available exclusively on Ge Force GTX Kepler-powered GPUs, TXAA is designed to be directly integrated into game engines. Plus, it combines the raw power of MSAA (multi–sample anti–aliasing) with a temporal filter & sophisticated resolve filters similar to those used in CG films. The end result is a smoother, more lifelike image than any other comparable technique. NVIDIA FXAA Technology FXAA is a NVIDIA-developed post-processing technique that selectively blurs a game’s graphics to tackle unsightly jagged edges & high-contrast pixel deviation. Gaining popularity amongst developers due to its low performance impact & its ability to anti-alias transparent textures & details, FXAA is highly recommended for low-end & mid-range systems. NVIDIA G-SYNC Technology NVIDIA G-SYNC is a groundbreaking new innovation that casts aside decades-old thinking to create the smoothest, most responsive computer displays ever seen. A monitor module you can install yourself, or buy pre-installed in gamer-focused monitors, NVIDIA G-SYNC waves goodbye to the days of screen tearing, input lag, & eyestrain-inducing stuttering caused by decades-old tech lazily carried over from analog TVs to modern-day monitors. NVIDIA GPU Boost 2.0 Technology Up until now, GPUs have operated at a fixed clock speed when playing 3D games, even if they have the potential to run faster. GPU Boost intelligently monitors graphics work load & increases the clock speed whenever possible. The result is that the GPU always performs at its peak & you get the highest framerate possible. With NVIDIA GPU Boost 2.0 Enjoy new levels of customization with advanced controls like GPU temperature target, overclocking, & overvoltage. NVIDIA Adaptive V-Sync Technology Nothing is more distracting than framerate stuttering & screen tearing. The first tends to occur when framerates are low, the second when framerates are high. Adaptive V-Sync is a smarter way to render frames. At high framerates, V-sync is enabled to eliminate tearing, at low frame rates, its disabled to minimize stuttering. It gets rid of distractions so you can get on with gaming. NVIDIA Phys X Technology Phys X is designed specifically for hardware acceleration by powerful processors with hundreds of cores. Combined with the tremendous parallel processing capability of the GPU, Phys X will provide an exponential increase in physics processing power & will take gaming to a new level delivering rich, immersive physical gaming environments. NVIDIA CUDA Technology NVIDIA CUDA technology is the world’s only C language environment that enables programmers & developers to write software to solve complex computational problems in a fraction of the time by tapping into the many-core parallel processing power of GPUs. With millions of CUDA-capable GPUs already deployed, thousands of software programmers are already using the free CUDA software tools to accelerate applications—from video & audio encoding to oil & gas exploration, product design, medical imaging, & scientific research. NVIDIA Surround with up to 4 Monitors Nothing is as breathtaking as playing your favorite games across three monitors. At 5760 x 1080, the expanded field of view fully engages human peripheral vision & provides for the most immersive experience in racing & flight simulators. Add in a fourth display to keep tabs on chat, email or web while you are gaming. NVIDIA 3D Vision NVIDIA 3D Vision brings a fully immersive, stereoscopic 3D experience to the PC. A combination of high-tech wireless glasses & advanced software, 3D Vision transforms hundreds of PC games into full stereoscopic 3D. Get up to 2x monitor & keyboard brightness with NVIDIA 3D Light Boost technology. In addition, you can enjoy 3D movies & 3D digital photographs from 3 D Vision Live.com in eye popping, crystal-clear quality. NVIDIA SLI Technology Used by the most demanding gamers worldwide, SLI lets you link up to three Ge Force GTX 780s together for astounding performance. & with NVIDIA’s track record for fast & frequent software updates, you’ll not only get the best performance in existing games, but future games too. ASUS ROG Matrix GTX 780 Ti delivers 13% faster game performance than reference design Direct CU II with 10mm heatpipe: 20% cooler performance & 3X quieter acoustics compared to reference Cool Tech Fan technology: Hybrid design for multi-directional cooling DIGI+ VRM with black metallic capacitors & 14-phase Super Alloy Power: 30%-less power noise & 5X-greater durability Memory Defroster: Instant defrost. Say goodbye to cold bugs Safe Mode: One-press VBIOS restore ROG Color-coded Load Indicator: At-a-glance GPU load level GPU Tweak: Modify clock speeds, voltages, fan performance & more, all via an intuitive interface GPU Tweak Streaming: Share on-screen action in real time – so others can watch live as games are played ROG Matrix graphics cards are designed by overclockers for overclockers. Pre-loaded with a variety of ROG exclusive tools for instant & safe overclocking, ROG Matrix revolutionized how overclocking is done & continues to innovate & shatter world records. For serious gamers Matrixs renowned & highly-trusted legacy as the coolest, quietest & smoothest graphics cards available create the perfect balance between spectacular power & out-of-the-box simplicity. Treat yourself to the winning edge — all dressed up in the seductive ROG wardrobe. Graphics Engine
- NVIDIA Ge Force GTX 780 Ti Bus Standard
- PCI Express 3.0 Video Memory
- GDDR5 3GB Engine Clock
- GPU Boost Clock: 1072 MHz, GPU Base Clock: 1006 MHz CUDA Core
- 2880 Memory Clock
- 7000 MHz (GDDR5 ) Memory Interface
- 384-bit Interface DVI Output: Yes x 1 (DVI-I), Yes x 1 (DVI-D) HDMI Output: Yes x 1 Display Port: Yes x 1 (Regular DP) HDCP Support: Yes

Dimensions 11.7 " x 6 " x 1.6 " Inch 29.718 x 15.24 x 4.06 Centimeter








...

Asus STRIX-GTX950-DC2OC-Gaming 2 Gb GDDR5 Dual DVI HDMI Display Port PCI-E Graphics Card DIRECTCU II + Patented Wing-Blade 0d B FAN Design 20% COOLER. SILENT GAMING. Strix drives Direct CU technology further with patented wing-blade 0d B-fan technology that lets you enjoy games like League of Legends in complete silence! & during heavy loading, Strix performs 20% cooler & 3X quieter than reference. AUTO-EXTREME TECHNOLOGY with Super Alloy Power II Premium Aerospace-grade Quality & Reliability ASUS graphics cards are produced using AUTO-EXTREME TECHNOLOGY, an industry-first 100% automated production process, & feature aerospace-grade Super Alloy Power II components for unsurpassed quality & reliability. GPU Tweak II with XSplite Gamecaster Tweak Till your Heart’s Content With an intuitive new UI, GPU Tweak II makes overclocking easier than ever, & features Game Booster to maximize graphics performance & XSplit Gamecaster to stream or record your gameplay. Hardware

Specification Model STRIX-GTX950-DC2OC-2GD5-GAMING Graphics Engine NVIDIA Ge Force GTX 950 Bus Standard PCI Express 3.0 Open GL Open GL 4.5 Video Memory 2GB GDDR5 GPU boost Clock OC Mode: 1355 MHz Gaming Mode: 1329 MHz GPU base Clock OC Mode: 1165 MHz Gaming Mode: 1140 MHz CUDA cores 768 Memory Clock 6610 MHz Memory Interface 128 bit Digital MAX Resolution 4096 X 2160 DVI Output 1x Native DVI-I 1x Native DVI-D HDMI Output 1x Native HDMI 2.0 HDCP compliant YES Display Port 1x Native Display Port 1.2 Dimension The card size is 22 *12.5 *4 cm The card size is 8.7 *4.9 *1.6 inches To have the best cooling performance, ASUS STRIX-GTX950-DC2OC-2GD5-GAMING extends the fansink to 2 slots. Please double check you Chassis & Motherboard dimension prior to purchase to make sure it fits in your system! Note that the actual boost clock will vary depending on actual system conditions. For more information.

...

Super Alloy Power Enhance durability & Cooling Exclusively-formulated alloy components boost performance by reducing power loss, enhancing durability, & achieving cooler operation. Choke concrete cores eliminate buzzing sound under full load while capacitors assure a 50, 000-hour lifespan: equivalent to 2.5 times longer than traditional capacitors. Asus GPU Tweak with XSplit Gamecaster Real-time & intuitive tweaking XSplit Gamecaster lets you easily stream & record your greatest gaming moments at the click of a button. Its simple, easy to use, & perfect for sharing your gameplay with the world. ASUS GPU Tweak helps you modify clock speeds, voltages, fan performance & more, all via an intuitive interface. Model GTX960-MOC-2GD5 Graphics Engine NVIDIA Ge Force GTX 960 Bus Standard PCI Express 3.0 Open GL Open GL 4.4 Video Memory 2GB GDDR5 GPU boost Clock 1253 MHz GPU base Clock 1190 MHz CUDA cores 1024 Memory Clock 7010 MHz DVI Output 1x Native Dual-link DVI-I HDMI Output 1x Native HDMI 2.0 HDCP Compliant Yes Display Port 3x Native Display Port 1.2 SOftware Bundled Asus GPU Tweak & Driver Dimension The card size is 6.7 x 4.8 x 1.6 inches To have the best cooling performance, ASUS GTX960-MOC-2GD5 extends the fansink to 2 slots. Please double check you Chassis & Motherboard dimension prior to purchase to make sure it fits in your system! Note that the actual boost clock will vary depending on actual system conditions. For more information, please visit http://www.geforce.com/ ...
