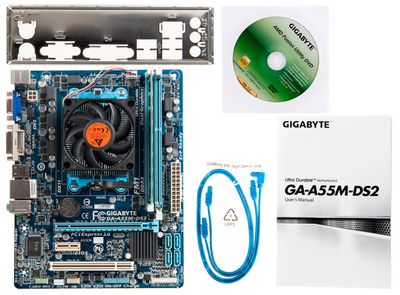

AMD A4 3300 Motherboard Bundle With Socket FM1 A4 3300 APU Gigabyte
GA-A55M-DS2 And 4GB DDR3 Memory
Our selected motherboard bundle deals come with 3 of the key components (motherboard, processor with cooler and memory). These bundles are built and then tested reducing the chance of failure. This motherboard bundle comes with the following components installed onto a Gigabyte socket FM1 motherboard. Gigabyte GA-A55M-DS2 Socket FM1 Micro ATX motherboard AMD A4 3300 Socket FM1 2.5GHz Processor with fan pre installed onto the motherboard 1 x 4GB DDR3 memory running at 1600MHz installed These bundles are built with the user in mind, helping to offer a solution that is easy to setup, meaning that users if wanted can just order a bundle, a case and power supply, storage (HDD/SSD), choice of Operating System and essentially build you own PC in no time. Motherboard Specifications Chipset
AMD A55 chipset Memory 2 x 1.5V DDR3 DIMM sockets Onboard Graphics APU: 1 x D-Sub port 1 x DVI-D port, supporting a maximum resolution of 1920x1200 Audio VIA HD audio codec High Definition Audio 2/4/5.1/7.1-channel (Note 4) Support for S/PDIF Out LAN 1 x Atheros GbE LAN chip (10/100/1000 Mbit) Expansion Slots 1 x PCI Express x16 slot, running at x16 1 x PCI Express x1 slot (All PCI Express slots conform to the PCI Express 2.0 standard) 1 x PCI slot Multi-Graphics Technology Support for AMD Dual Graphics technology Only A series APU support AMD Dual Graphics Storage Interface Chipset: 4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices Support for RAID 0, RAID 1, RAID 10, and JBOD USB Chipset: Up to 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through
the internal USB headers) Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 4 x SATA 3Gb/s connectors 1 x APU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x clearing CMOS jumper Back Panel Connectors 1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x D-Sub port 1 x DVI-D port 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks (Line In/Line Out/Microphone) Form Factor Micro ATX Form Factor; 22.5cm x 17.4cm
AMD A55 chipset Memory 2 x 1.5V DDR3 DIMM sockets Onboard Graphics APU: 1 x D-Sub port 1 x DVI-D port, supporting a maximum resolution of 1920x1200 Audio VIA HD audio codec High Definition Audio 2/4/5.1/7.1-channel (Note 4) Support for S/PDIF Out LAN 1 x Atheros GbE LAN chip (10/100/1000 Mbit) Expansion Slots 1 x PCI Express x16 slot, running at x16 1 x PCI Express x1 slot (All PCI Express slots conform to the PCI Express 2.0 standard) 1 x PCI slot Multi-Graphics Technology Support for AMD Dual Graphics technology Only A series APU support AMD Dual Graphics Storage Interface Chipset: 4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices Support for RAID 0, RAID 1, RAID 10, and JBOD USB Chipset: Up to 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through
the internal USB headers) Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 4 x SATA 3Gb/s connectors 1 x APU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x clearing CMOS jumper Back Panel Connectors 1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x D-Sub port 1 x DVI-D port 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks (Line In/Line Out/Microphone) Form Factor Micro ATX Form Factor; 22.5cm x 17.4cm
