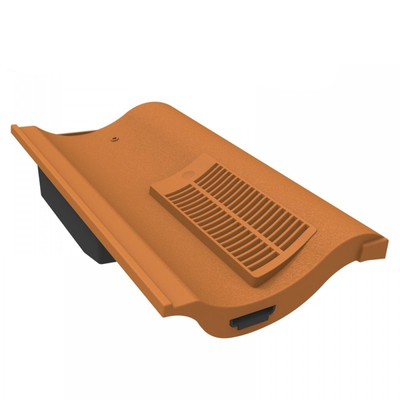

Manthorpe Single Pantile Roof Vent - Terracotta

Product Description

Manthorpe Single Pantile Roof Vent The Manthorpe Single Pantile Roof Vent
- Terracotta is the best way to provide effective rooftop ventilation on a new build or restoration project. This sandy coloued pantile vent brings an exciting & colourful feel to your home, whilst also providing you with enough ventilation to prevent water damage in the house. This vent allows for a dependable airflow, as well as permitting 5, 000mm² when dealing with any surplus of water from the vent & onto the rooftop. The small scale 4mm grille also stops any fragments, debris or insects from getting through. This Manthorpe Single Pantile Roof Vent
- Terracotta is perfectly designed to work in union with the other singular pantiles without being too noticeable. Along with the brilliant design of the pantile, you can be assured of the usual quality from Manthorpe Building Products as it has been independently tested with the use of a wind tunnel to make sure it's made to measure your needs. The Manthorpe Single Pantile in-line tile ventilator is designed to provide simple solution to the problems of roofspace ventilation & mechanical extraction through a concrete single pantile roof covering.  The in-line profile helps to maintain an unbroken appearance to the roofline at high or low level. Designed to suit the leading tile makes, it is available in a range of colours with a moulded textured finish. The tortured path through the internal weathering geometry is designed to maintain a constant airflow gap or 5, 000mm² whilst channelling any water ingress out of the vent & on to the roof covering below, with the 4mm louvred grille in place to prevent the netry of debris & large nesting insects. When using the vent for mechanical extracttion or soil stack / vent pipe termination; the 4" diameter outlet on the base will connect directly onto one of the GRPA Flexible Pipe range.  Features In-line & discreet low profile design Suitable for concrete interlocking single pantiles No batten cutting required 4mm louvred flyscreen grill Integral sidelock clip to ensure secure fit  Range of colours available  Profiles suit all top tile manufacturers Fully independently wind tunnel tested Base outlet feeds directly into roof space 4" outlet connection for mechanical extraction Suitable for use down to a 20º roof pitch

Specification Size - 395x 230mm Minimum Pitch - 20º Maximum Headlap - 125mm Materials -  (Top) u PVC (Base)  Polypropylene Colours -  Terracotta Slate Grey Dark Brown Antique Red
