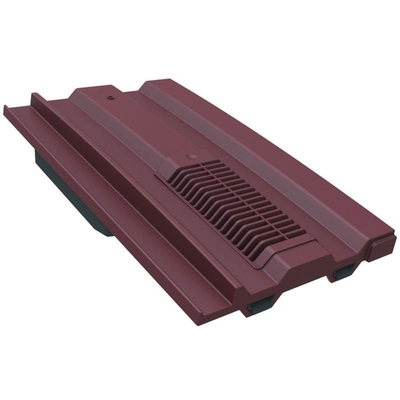

Manthorpe Mini Castellated In-line Roof Tile Vent - Antique Red

Product Description

Manthorpe Mini Castellated In-line Roof Tile Vent This Manthorpe Mini Castellated In-line Roof Tile Vent
- Antique Red is an essential product for rooftop ventilation that's compatible with other lead tile manufacturers such as Redl&, Marley & Sandtoft. Manthorpe have designed this vent to allow for 5, 000mm² of free-flowing air, that's more than sufficient when extracting excess water from the vent. It's also great for mechanical extraction with a 15" x 9" roof covering. In addition to this, the Manthorpe  Mini Castellated In-line Roof Tile Vent
- Antique Red is protected with a handy 4mm grille to stop large insects & debris from gathering. You can also be assured of the security of this product, as it's built with a sidelock clip to hold it steadily in place. Each vent has undergone individual wind-driven rain tests at speed of 13m/s of wind. This classic looking roof tile vent comes in a beautiful antique red colour with a textured coat to enhance the rustic feeling of your roof. The Manthorpe Mini Castellated in-line tile ventilator is designed to provide a simple solution to the problems of roofspace ventilation & mechanical extraction through a 15" x 9" format roof covering. The in-line profile helps to maintain an unbroken appearance to the roofline at a high or low level. Designed to suit the leading tile makes, it is available in a range of colours with a moulded textured finish.  The tortured path through the internal weathering geometry is designed to maintain a constant airflow gap of 5, 000mm² whilst channelling any water ingress out of the vent & on to the roof covering below, with the 4mm louvred grilled in place to prevent the entry of debris & large nesting insects.  When using the vent for mechanical extraction or soil stack/vent pipe termination; the 4" diameter outlet on the base will connect directly onto one of the GRPA Flexible Pipe range. Features In-line & discreet low profile design Suitable for 15" x 9" low profile interlocking tiles No batten cutting required 4mm louvred flyscreen grille Integral sidelock clip to ensure secure fit Range of colours available  Profiles suit all top tile manufacturers Fully independently wind tunnel tested Base outlet feeds directly into roof space  4" outlet connection for mechanical extraction Suitable for use down to a 17.5º roof pitch

Specification Size - 390x 230mm Minimum Pitch - 17.5° Maximum Headlap - 125mm Materials -  (Top) u PVC (Base)  Polypropylene Colours -  Terracotta Slate Grey Dark Brown Antique Red
