The PEX1S553LP PCI Express serial card turns a PCI Express slot into an RS232 (DB9) serial connection. The card is constructed using a native single chip design that lets you harness the full capability offered by PCI Express (PCIe), while reducing the load applied to the CPU by as much as 48% over conventional bridge chip serial cards. The PCI Express RS232 serial adapter card is compatible with a broad range of operating systems, including Windows 2000/XP/2003/ Vista / Windows 7/ Server 2008 R2 (32 & 64 bit), Linux Kernel 2.6.11 & up, & ships with a low profile/half-height bracket installed, but

Includes:: an optional full profile bracket that lets you add a serial port to virtually any computer (regardless of the case form factor). This product is a replacement for the PEX1S552LP card.

...

The PEX2S553LP low profile/half-height PCI Express serial card turns a PCI Express slot into two RS232 (DB9) serial connections. The card is constructed using a native single chip design that lets you harness the full capability offered by PCI Express (PCIe), while reducing the load applied to the CPU by as much as 48% over conventional bridge chip serial cards. The PCI Express RS232 serial adapter card is compatible with a broad range of operating systems, including Windows 2000/XP/2003/ Vista/ Windows 7/ Server 2008 R2 (32 & 64-bit), Linux Kernel 2.6.11 & up, & ships with a low profile/half-height bracket installed but

Includes:: an optional full profile bracket that lets you add 2 serial ports to virtually any computer (regardless of the case form factor). This product is a replacement for the PEX2S552LP card.

...

Add Two PCI & Two PCI Express Expansion Card Slots to a Desktop or Laptop Computer System. The PEX2PCIE4L PCI/PCI Express Expansion Chassis provides a quick & simple I/O expansion solution to almost any PCI Express (PCIe) enabled system. Adding PCI/PCIe cards to a server or workstation, or providing a platform to swap cards between a mobile & desktop setup is a cost-effective & time-saving solution for for maximizing the I/O capabilities of your system. The external expansion chassis adds two full-length (38cm) PCI slots (32-bit/33 M Hz), as well as two PCIe x 1 (single-lane) slots to a host computer through a single PCI Express connection. Providing total bandwidth up to 250 M Bps from the PCIe x 1 host controller card allows the computer to function as though the expansion chassis cards were connected directly to the motherboard. For mobile applications, the Expansion Chassis can be connected to an Express Card- enabled laptop using the Star Tech.com Express Card connection cable (EC2PCI), eliminating the added expense of purchasing different card adapters for the laptop. ...

Add two PCI & two PCI Express expansion card slots to your desktop computer. The PEX2PCIE4L PCI/PCI Express Expansion Chassis provides a quick & simple I/O expansion solution to almost any PCI Express (PCIe) enabled system. Adding PCI/PCIe cards to a server or workstation, or providing a platform to swap cards between a mobile & desktop setup is a cost-effective & time-saving solution for maximizing the I/O capabilities of your system. The external expansion chassis adds two full-length (38cm) PCI slots (32-bit/33 M Hz), as well as two PCIe x 1 (single-lane) slots to a host computer through a single PCI Express connection. Providing total bandwidth up to 250 M Bps from the PCIe x 1 host controller card allows the computer to function as though the expansion chassis cards were connected directly to the motherboard. ...

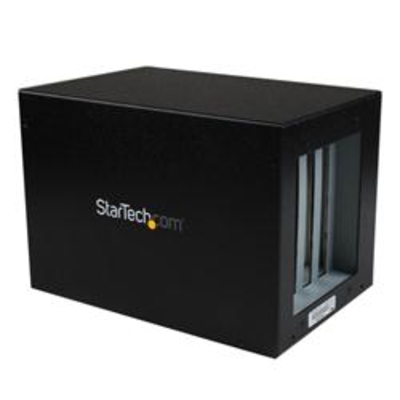

Add four external I/O expansion card slots to a desktop or laptop computer system. Star Tech.com's innovative PCI Express to PCI Expansion Chassis provides a quick & simple solution to I/O expandability on almost any PCI Express (PCIe) enabled system. Adding external PCI slots to a server/workstation or laptop, this cost-effective & time-saving method of simply adding additional PCI cards to a server/workstation or providing a platform to be able to swap PCI add-in cards between a mobile & desktop setup is the optimal method of maximizing the I/O capabilities of new or existing systems. The external expansion chassis adds four PCI slots (32-bit/33 M Hz) to the host computer system, through a single PCI Express connection. Providing total bandwidth of up to 250 M Bps from the x 1 PCIe host controller card, which allows the host computer to function as though the cards in the expansion chassis were connected directly to the motherboard. For mobile applications, the Expansion Chassis can be connected to an Express Card enabled laptop using Star Tech.com's Express Card connection cable (EC2PCI), which adds the same functionality offered by the Expansion Chassis to a laptop. This eliminates the expense & need of having to purchase different card adapters for the laptop. The Expansion Chassis is a dependable I/O expansion solution. ...

Convert a Mini PCI Express Card into a Standard Desktop PCI Express Card. The PEX2MPEX PCI Express to Mini PCI Express Adapter Card enables Mini PCI Express cards (Mini Cards) to be used in a standard PCI Express card slot. These PCIe Mini Cards, which are typically designed for laptops or small form factor ITX computers, can be used normally inside more conventional desktop computers. The adapter card features a complete PCIe to Mini PCIe pass-through design that eliminates data transfer rate bottlenecks, while the included full & low profile installation brackets makes this adapter card compatible with most computer chassis. ...

Convert a Mini PCI Express Card into a Standard Desktop PCI Express Card. The PEX2MPEX PCI Express to Mini PCI Express Adapter Card enables Mini PCI Express cards (Mini Cards) to be used in a standard PCI Express card slot. These PCIe Mini Cards, which are typically designed for laptops or small form factor ITX computers, can be used normally inside more conventional desktop computers. The adapter card features a complete PCIe to Mini PCIe pass-through design that eliminates data transfer rate bottlenecks, while the included full & low profile installation brackets makes this adapter card compatible with most computer chassis. ...

Install half-height/low profile PCI interface cards in a standard PCI Express expansion slot. This PCIe to PCI Adapter Card lets you use low profile PCI expansion cards in a server or desktop motherboard PCI Express slot. Compliant with PCI Express

Specification 1.0a & PCI

Specification 2.2, the adapter card connects through a PCIe 1x slot to provide a low profile PCI slot in its place. A spare full size bracket for PCI Express card is also included for use in larger desktop or server PCI Express slots. A versatile solution, the adapter card converts PCIe to PCI or PCI-X; a built-on LP4 power connector links the card to the computer power supply, allowing you to install universal voltage PCI cards (3.3V/5V). The adapter card offers an economical solution that lets you extend the usability of older or extra PCI Bus cards in newer PCIe capable systems. To ensure suitable installation in any low profile server or desktop computer, the PCIe/PCI adapter features an innovative bracket design that adapts & secures the low profile PCI or PCI-X card into the converted slot.



...

Install half-height/low profile PCI interface cards in a standard PCI Express expansion slot. This PCIe to PCI Adapter Card lets you use low profile PCI expansion cards in a server or desktop motherboard PCI Express slot. Compliant with PCI Express

Specification 1.0a & PCI

Specification 2.2, the adapter card connects through a PCIe 1x slot to provide a low profile PCI slot in its place. A spare full size bracket for PCI Express card is also included for use in larger desktop or server PCI Express slots. A versatile solution, the adapter card converts PCIe to PCI or PCI-X; a built-on LP4 power connector links the card to the computer power supply, allowing you to install universal voltage PCI cards (3.3V/5V). The adapter card offers an economical solution that lets you extend the usability of older or extra PCI Bus cards in newer PCIe capable systems. To ensure suitable installation in any low profile server or desktop computer, the PCIe/PCI adapter features an innovative bracket design that adapts & secures the low profile PCI or PCI-X card into the converted slot.



...

The PEX1PCI1R PCI Express to PCI riser card (left-angle) lets you install a 32-bit PCI card into the (x 1) PCIe slot on an Intel 1U IPC rackmount chassis
- a necessary accessory for almost any Intel 1U chassis, providing a simple way to expand system capabilities by adding I/O ports or a legacy PCI card to newer systems.
...
