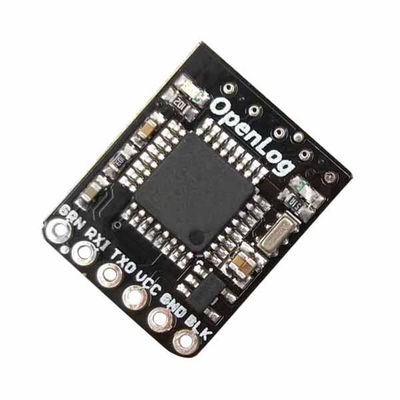

Openlog Blackbox Cleanflight For Naze32 SP Racing F3 CC3D Flight Flash
Micro Sd Data Recorder UART

Product Description

Openlog Blackbox Cleanflight For Naze 32 SP Racing F3 CC3D Flight Flash Micro SD Data Recorder UARTDescription:VCC input: 3.3V-12V (Recommended 3.3V-5V) Log to low-cost micro SD FAT16/32 cards up to 64GBSimple command interface Configurable baud rates Defaut bootloader is pro mini atmage 328P 5V 16 Mhz Four SPI pogo pins Two LEDs indicate writing status 2m A idle, 6m A at maximum recording rate
Features: Open Log (blackbox) is a data logger that works over a simple serial connection & supports micro SD cards up to 64GB. The Open Log (blackbox) can store or log huge amounts of serial data & act as a black box of sorts to store all the serial data that your project generates. The board has contained the openlog_blackbox_v 2.0 firmware. Flight conroller transmits your flight data information on every control loop iteration over a serial port to an Open Log to be recorded. After your flight, you can view the resulting logs using the interactive log viewer:https://github.com/cleanflight/blackbox-log-viewer You can also use the blackbox_decode tool to turn the logs into CSV files for analysis, or render your flight log as a video using the blackbox_render tool. Those tools can be found in this repository:https://github.com/cleanflight/blackbox-tools Open Log configuration Power up the Open Log with a micro SD card inside, wait 10 seconds or so, then power it down & plug the micro SD card into your computer. You should find a CONFIG.TXT file on the card, open it up in a text editor. You should see the baud
