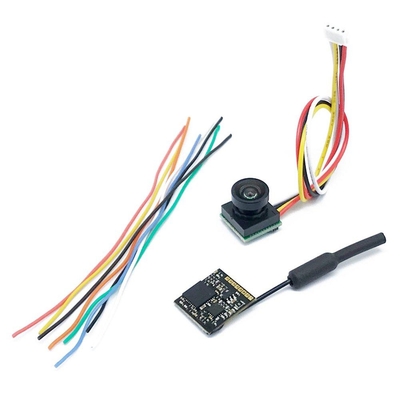

EWRF E7082VM 5.8G 40CH 100mW FPV Transmitter With Smart Audio 600TVL
CMOS Micro FPV Camera For RC Drone
Description:Brand Name: EWRFItem Name: e7082VM FPV Transmitter with 600TVL CameraSpecifications ofe7082VM FPV Transmitter:Frequency: 5.8G 40CHTransmitting Power: 25mw/100mw/OFF(Pitmode)Power Supply: DC5VCurrent(5v): 270mA(100mW)Weight: 1.4gStandard Size: 14*15*3mmSpecifications of Camera:Pixel: 5 MegapixelHorizontal Resolution: 600TVLMinimum lllumination: 0.5LUXS/N ratio: 48dBGama: 0.45Frame Speed: 50f/s (PAL)White Balance: AutoAudio Out: MonophonicVideo Out: 1.2Vp-p 75 CVBSImage Color: ColorTV Format: PALLens: 1.8mm Wide view angle 170IR Distance: 1-3 MetersInput Power: 3.3V-5V(Module)Power Consumption: 80mASize: 12.5mm*12.5mm*12mm(L*W*H)Main Features:- Betaflight/Cleanflight OSD configuring parameter- Clean powerup and channel switching without interference to others- Smaller current,
100mw 5V power supply 270mAUser Guide:1. LED indication*The red LED indicates the state of working mode or the item when setting the VTX(flashing 1 time means selecting the channels, flashing 2 times means selecting the bands).*The blue LED indicates the state of Pitmode or the value of item when setting the VTX( e.g. when selecting the channels, 1 times of flashing means channel 3. When selecting the bands, 1 times of flashing means band A.)*The green LED flashing indicates that the VTX overheat protection is working, the power level will go down.2. Working mode indication*After powering up, the redblue LEDs will signal the following two items of VTX in turn: channel, band (the flashing time
100mw 5V power supply 270mAUser Guide:1. LED indication*The red LED indicates the state of working mode or the item when setting the VTX(flashing 1 time means selecting the channels, flashing 2 times means selecting the bands).*The blue LED indicates the state of Pitmode or the value of item when setting the VTX( e.g. when selecting the channels, 1 times of flashing means channel 3. When selecting the bands, 1 times of flashing means band A.)*The green LED flashing indicates that the VTX overheat protection is working, the power level will go down.2. Working mode indication*After powering up, the redblue LEDs will signal the following two items of VTX in turn: channel, band (the flashing time
