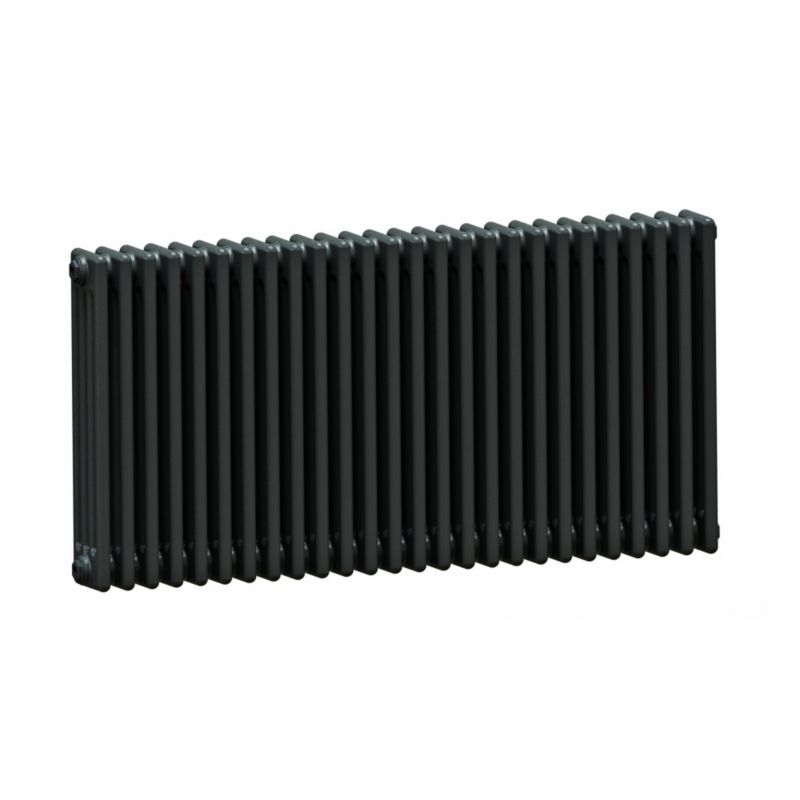

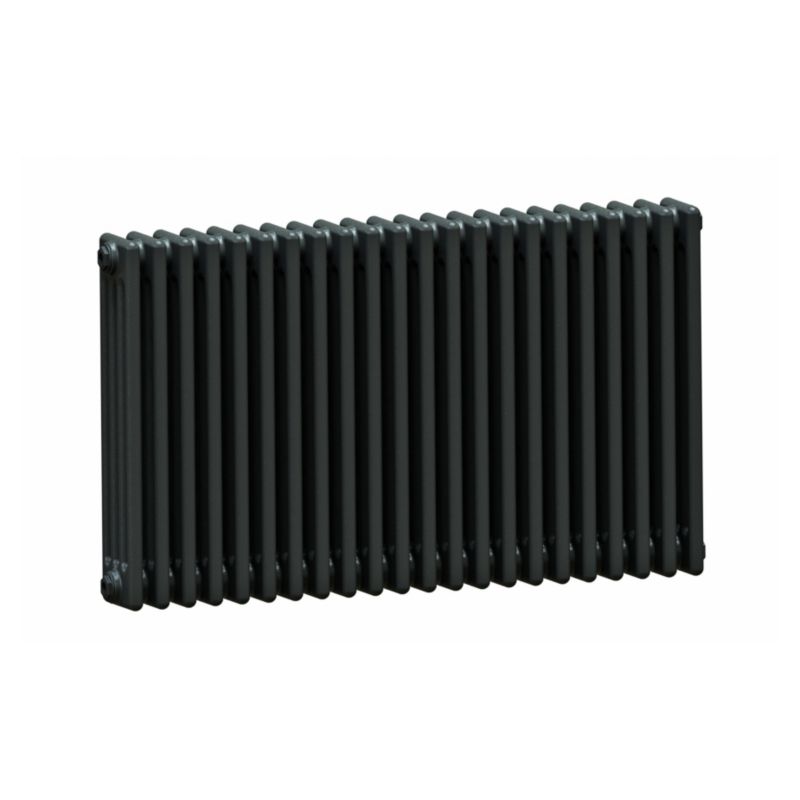

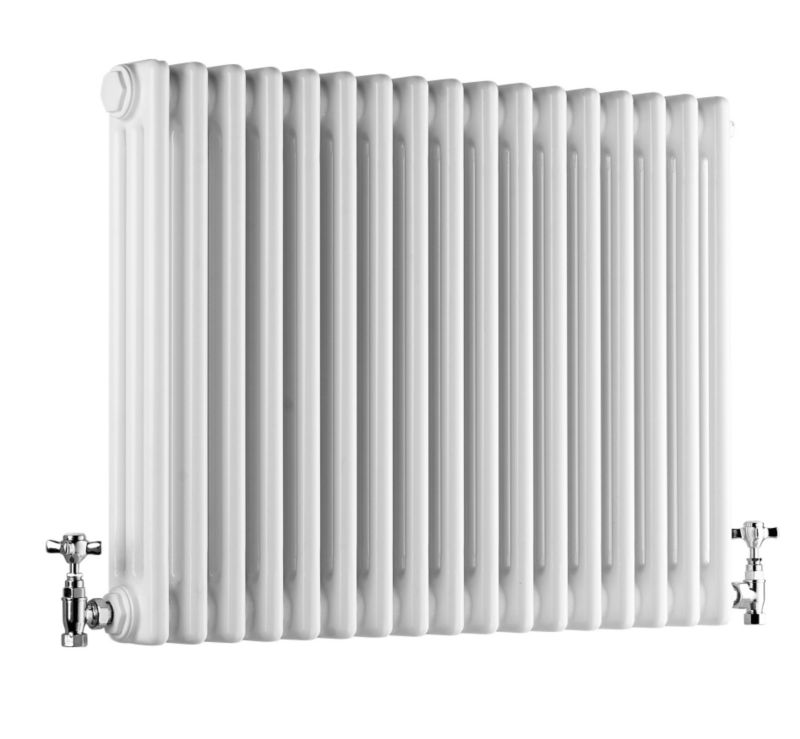

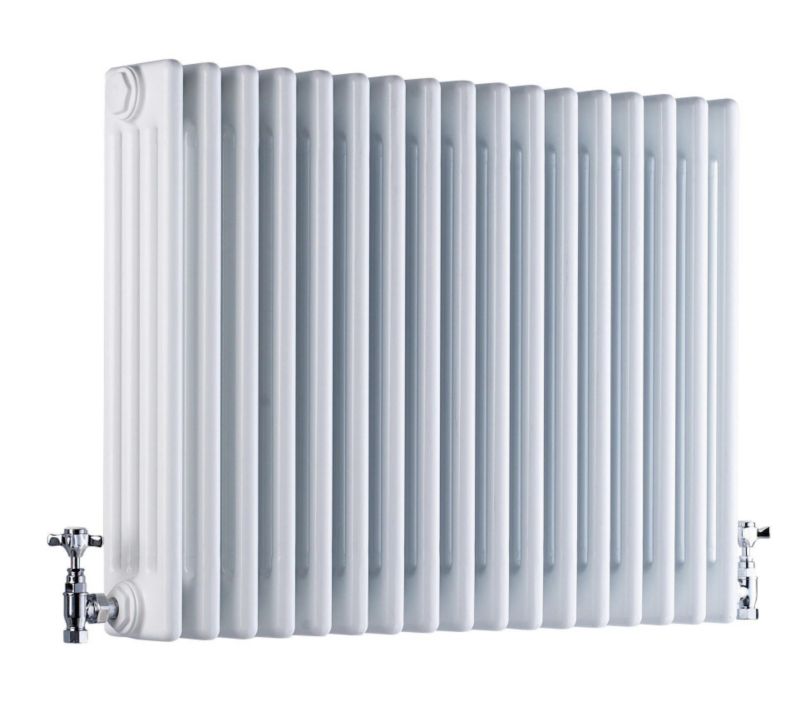

The depth of the radiator when fitted can be adjusted between 156-164mm, Point to point measurement: 812mm, 4 Column radiator 17 sections wide, Brackets & 1/2 inch air vent included Screw fixings are not included, For further information on the support foot, refer to " Acova Optional Support Feet", Total projection from wall: 159mm min, 164mm max Wall to centre of connections: 91 or 96mm, Connection position: BOE
- Bottom Opposite Ends For correct circulation, the water MUST enter the radiator diagonally opposite the air vent, Pipe centres are dependent on valves used, Valves are not included, It is advised that, if pre-piping is necessary, allowances are made to accommodate manufacturing tolerances, Manufacturing tolerance of +/- 06mm per section, All outputs are stated to 50dt in line with European EN442 testing standards, A low water content radiator, giving fast, efficient heating, On installation of a new radiator, the entire central heating system should be flushed, 5 years, terms & conditions apply, It should also be chemically cleaned & an inhibitor used that is suitable for a mixed metal system
