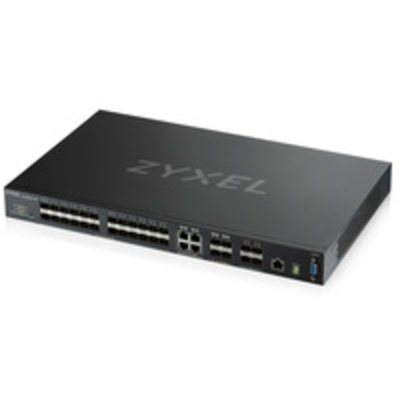

Zyxel XGS4600-32F Managed L3 Black

Product Description

XGS4600 Series\n 28-port Gb E L3 Managed Switch with 4 SFP+ Uplink\n Bandwidth-intensive applications such as multimedia streaming, Vo IP & video surveillance are used daily in business networks for more efficient workflows. However, the networks could be overloaded & that causes reduced business productivity. Deploying 10-Gigabit Ethernet ports at the aggregation layer to deal with bandwidth-intensive networks becomes the top choice of users such as hospitality venues & education institutions. Zyxel&153;s brand new Layer-3 stackable XGS4600 Switch Series comes with Gigabit connectivity & four integrated 10-Gigabit SFP+ slots that enable high-speed uplink connections for affordable, reliable network elements. The front panel with carbon fiber look brings a totally fresh look than traditional switches. Under the elegant hood, the XGS4600 Series not only features advanced L2 switching functionality, but also L3 routing capabilities for communications between networks.\n\n High availability\n To implement fault-tolerant networks, the Zyxel XGS4600 Series allows creating a physical stack through one or two 10-Gigabit SFP+ slots. Four units or 112 Gigabit ports can be configured as a stack using optional directattach cables or transceivers to provide high bandwidth on the XGS4600 Series for more flexible management. The stacking topology under the ring architecture provides high redundancy in case one of the stacking links fail. The system can quickly recover through another stacking connection. The XGS4600 Series is designed to support active-standby power redundancy to trigger backup power supply to take over in case the main power supply fails.\n\n Advanced L3 features\n Hierarchical business networks become more complex because of the increased communication among subnets. The XGS4600 Series features dynamic routing to simplify cross-subnet communications for businesses such as hospitality venues & education institutions that operate complex networks. In addition, the XGS4600 Series comes with full Layer-2 switching & Layer-3 routing capabilities if the system is working under the stacking mode. The stackable structure greatly enlarges network coverage as well as network resiliency that most enterprise networks require.\n\n Flexible management & future-proof networks\n The XGS4600 Series can be managed via CLI which is consistent with Zyxel managed switches, while the intuitive Web-based GUI helps skilled network administrators to quickly become more productive. As the IP address scheme evolves to accommodate a growing number of network devices, the Zyxel XGS4600 Series assures businesses a smooth migration path from IPv 4-based networks to a full IPv 6 infrastructure for protection to the investments in future network upgrades. Feature Feature Value Switch type Managed Switch layer L3 Quality of Service (Qo S) support YMIB support Y Combo SFP ports quantity 4SFP module slots quantity 24SFP+ module slots quantity 4 Console port RS-232 Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z 10G support Y Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-TIP routing Y Routing entries 12000 Flow control support N Link aggregation Y Spanning tree protocol YVLAN support Y Virtual LAN features Tagged VLANMAC address table 32000 entries Switching capacity 136 Gbit/s Throughput 101.1 Mpps Number of IP interfaces 256 Packet buffer memory 4 MBIGMP snooping Y Security algorithms SSH, SSH-2, SSL/TLSAuthentication Port-based authentication Multicast support Y Rack mounting Y Product colour Black Safety ANSI/UL 60950-1, CSA 60950-1, EN 60950-1, IEC 60950-1 Certification FCC Part 15 (Class A)n CE EMC (Class A) Internal memory 1000 MBFlash memory 64 MBNoise level 60.3 d B Mean time between failures (MTBF)794270.06 h AC input voltage 100
- 240 VAC input frequency 50
- 60 Hz Power consumption (max)60.1 WPower over Ethernet (Po E)NOperating temperature (T-T)0
- 50 &176;CStorage temperature (T-T)-40
- 70 &176;COperating relative humidity (H-H)10
- 95% Storage relative humidity (H-H)10
- 95% Heat dissipation 204.94 BTU/h Width 441 mm Depth 270 mm Height 44 mm Weight 4.21kg Rack mount kit Y Package width 616 mm Package depth 335 mm Package height 107 mm Package weight 5.83kg
