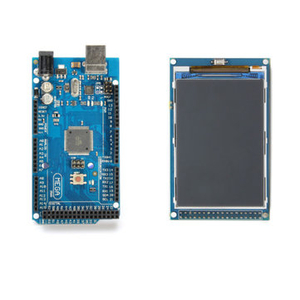

Geekcreit® MEGA 2560 R3 Development Board MEGA2560 With 3.2 Inch TFT
LCD Display Module For Arduino

Product Description

. 2 Inch 320 X 480 TFT LCD Display Module Support Arduino Mega 2560 3.2 Inch TFT LCD with 262K color 480x 320 resolutions. The controller of this LCD module is HX8357B, it supports 16-wires Data Bus interface. Moreover, this module

Includes:: the 5V-3.3V power conversion circuit & Level conversion circuit, This Module can Directly inserted into the Arduino Mega 2560 Board, it also

Includes:: the SD card socket & SPI FLASH circuit Feature: Support Arduino Mega 2560 Directly inserted With Full-angle IPS TFT panel On Borad level conversion chip for 5V/3.3V MCU Compatible with 3.3/5V operation voltage level Compatible with Arduino-Series development Board. (Please notice: This Screen is not touch screen) Provided 12-examples with Arduino, 3-examples with STM32 With SD Card Socket With SPI FLASH circuit Parameter:   Display Type:  3.2 inch a-si TFT LCD Module Glass Type:  TFT IPS (Full-Angle) Display Resolution:  480 X RGB X 320 Pixels Back light:  6 chip High Light white LEDs Control IC:  HX8357B Interface:  16 Bit parallel interface PCB Module

Size:  89.92mm X 54.25mm LCD Area (Wx Hx T):  50.74mm X 78.35mm X 1.88mm Active Area (Wx H):  67.68mm X 45.12mm Mega 2560 R3 ATmega 2560-16AU Control Board With USB (Universal Serial Bus) Cable For Arduino This is Arduino compatible R3 Mega 2560 ATmega 2560-16AU control board with USB (Universal Serial Bus) cable Arduino Mega is an ATmega 2560 as core microcontroller development board itself has 54 groups digital I / O input / output terminal (14 groups do PWM outputs) 16 sets of simulation tha
